CUBE ELITE C:68 SLT 2019

MTB Cross Country
Groupset
SRAM XX1 Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Hardtail
Weight
8,8 kg
Front travel
100mm
CUBE ELITE C:68 SLT 2019

About the CUBE ELITE C:68 SLT 2019

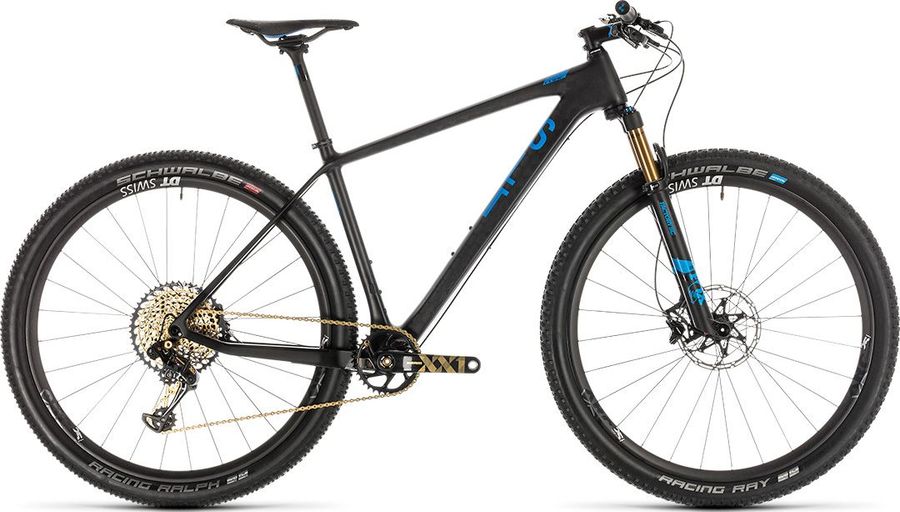

The CUBE ELITE C:68 SLT 2019 is a Hardtail Cross Country Mountain Bike with a carbon frame. Equipped with a SRAM XX1 Eagle drivetrain of 12 gears (1x12). Its features include boost 110 , hydraulic disc brakes, and tapered head tube. The bike weighs approximately 8,8 kg.

Features

The CUBE ELITE C:68 SLT 2019 has 4 features listed below.
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
trava-remota-guidao
Remote lockout More info

Specifications

Acessories
Grip
CUBE Race SL Grip 29.5 1-Clamp
Pedals
None included
Components
Steam
Newmen Evolution SL 318.2, 31.8mm
Saddle
Fi´zi:k Antares R1 Carbon
Headset
FSA Orbit I-t, Integrated, Top 1 1/8", Bottom 1 1/2"
Seatpost
Newmen Advanced, Carbon, 27.2mm
Handlebar
Newmen Advanced SL 318.0, Carbon, 740mm
Brake lever
SRAM Level Ultimate
Brakes
SRAM Level Ultimate Hydraulic 317 g
Application
MTB
Blade material
Carbon
Bracket disk brake
Direct mount DIR, Flat Mount 20mm offset, Flat Mount no offset, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Black Anodized, Gold
Model
DB-LVL-ULT-A1
Name
Level Ultimate
Orientation
Front, Rear
Pad type disc
Aluminum-backed organic, Steel-backed metal sintered
Weight based on
Direct Mount (Ti Bolts), 800mm hose, 160mm CLX Rotor (Ti Bolts)
Weight
317
Drivetrain
Crankset
SRAM XX1 Eagle™ DUB, 34T, 175mm
Shifter
SRAM XX1 Eagle™ Trigger
Bottom bracket
Press-fit
Front derailleur
Direct mount (none included)
Cassette
SRAM XG-1299 Eagle 12s
Cog finish cassete
Copper, Gold, Rainbow
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1299-B1
Name
XG-1299 Eagle Cassette
Speed
12s
Technology cassete
XG
Rear derailleur
SRAM XX1 Eagle 12s
Cable pull ratio
X-actuation
Color
Black, Lunar
Max tooth
52
Model
RD-XX-1-B2
Name
XX1 Eagle Rear Derailleur
Speed
12s
Chain
SRAM XX1 Eagle 239 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black, Gold
Color outer link
Black, Gold
Compat speed
12s-Eagle
Inner link finish
Chrome plated +PVD
Model
CN-EAGL-XX1-A1
Name
XX1 Eagle Chain
Outer link finish
Nickel+PVD
Pin variant
Hollow Pin
Weight based on
114 links
Weight
239
Frameset
Frame
C:68 Monocoque Advanced Twin Mold Technology, ARG2, Tapered Headtube, PressFit BB, 12x142mm, Integrated Cable Routing, Dropper Post Ready
Front suspension
Fox 32 SC Float Factory Kashima
Wheels
Rims
DT XRC1200 Spline, Carbon, 15x110mm / 12x142mm
Tires
Schwalbe Racing Ray, Addix Speedgrip, Kevlar, 2.25, LiteSkin
Spokes
DT Swiss XRC1200 Spline carbon wheelset
Rear hub
DT Swiss XRC1200 Spline carbon wheelset, 15mm x 110mm front, 12mm x 142mm rear
Front hub
DT Swiss XRC1200 Spline carbon wheelset, 15mm x 110mm front, 12mm x 142mm rear

Geometry

Size 15" 17" 19" 21" 23"
a
Seat tube length
370,0
420,0
470,0
515,0
565,0
b
Seat tube angle
73,0º
73,0º
73,0º
73,0º
73,0º
c
Top tube length
579,0
599,0
622,0
641,0
652,0
d
Head tube length
95,0
100,0
110,0
120,0
135,0
e
Head tube angle
70,0º
70,0º
70,5º
70,5º
70,5º
f
Rake
52,0
51,0
51,0
51,0
50,0
g
Trail
81,0
82,0
79,0
79,0
80,0
h
Wheelbase
1077,0
1097,0
1115,0
1134,0
1145,0
i
Chainstay length
439,0
439,0
439,0
439,0
439,0
j
Bottom bracket drop
65,0
65,0
65,0
65,0
65,0
k
Stack height
613,0
617,0
629,0
638,0
652,0
l
Reach
394,0
413,0
432,0
448,0
455,0
m
Standover height
-
-
-
-
-
x
Bottom bracket height
309,0
309,0
309,0
309,0
309,0
y
Front center
646,0
666,0
684,0
703,0
714,0
