Kona Unit X 2021

MTB Cross Country
Groupset
SRAM SX Eagle
Frame material
Steel
Wheel size
29"
Suspension type
Rigid

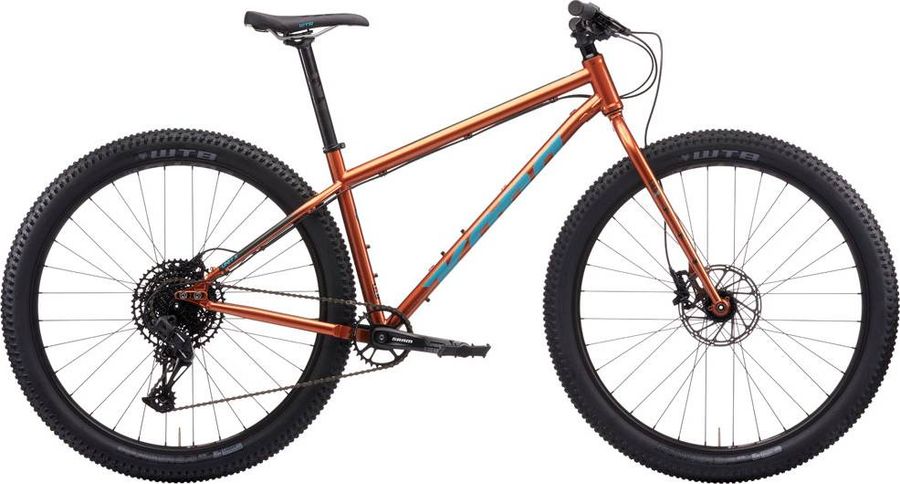

Kona Unit X 2021

About the Kona Unit X 2021

The Kona Unit X 2021 is a Rigid Cross Country Mountain Bike with a steel frame. Equipped with a SRAM SX Eagle drivetrain of 12 gears (1x12). Its features include boost 110 , boost 148, and hydraulic disc brakes.

Features

The Kona Unit X 2021 has 3 features listed below.
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Kona Key Grip
Pedals
Kona JS2
Components
Steam
Kona XC/BC
Saddle
WTB Volt
Headset
TH ZST No.10
Seatpost
Kona Thumb w/Offset 31.6mm
Handlebar
Kona XC/BC Riser
Discs
SRAM Centerline 180mm
Brake lever
SRAM Level T
Brakes
SRAM Level T Hydraulic 410 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-LVL-T-A1
Name
Level T
Orientation
Front, L/F, L/R, R/F, R/R, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor (TARGET)
Weight
410
Drivetrain
Crankset
SRAM SX-Eagle, 32t X-Sync Eagle
Shifter
SRAM SX-Eagle
Bottom bracket
SRAM DUB 73mm
Cassette
SRAM SX Eagle
Chain
SRAM SX Eagle
Rear derailleur
SRAM SX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-SX-1-A1
Name
SX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Front suspension
Kona Plus fork 110mm spacing
Frame
Reynolds 520 Butted Cromoly
Wheels
Rims
WTB ST i30 2.0 TCS
Tires
WTB Ranger TCS 29x2.6"
Spokes
Stainless Black 14g
Rear hub
Formula 148x12mm
Front hub
Formula 110x15mm

Geometry

Size SM MD LG XL
a
Seat tube length
370,0
420,0
470,0
530,0
b
Seat tube angle
75,0º
75,0º
75,0º
75,0º
c
Top tube length
586,0
614,0
641,0
679,0
d
Head tube length
110,0
120,0
130,0
140,0
e
Head tube angle
68,0º
68,0º
68,0º
68,0º
f
Rake
50,0
50,0
50,0
50,0
g
Trail
97,0
97,0
97,0
97,0
h
Wheelbase
1119,0
1148,0
1177,0
1215,0
i
Chainstay length
434,0
434,0
434,0
434,0
j
Bottom bracket drop
65,0
65,0
65,0
65,0
k
Stack height
592,0
601,0
610,0
619,0
l
Reach
429,0
454,0
479,0
514,0
m
Standover height
699,0
735,0
772,0
814,0
x
Bottom bracket height
310,0
310,0
310,0
310,0
y
Front center
693,0
722,0
750,0
789,0
