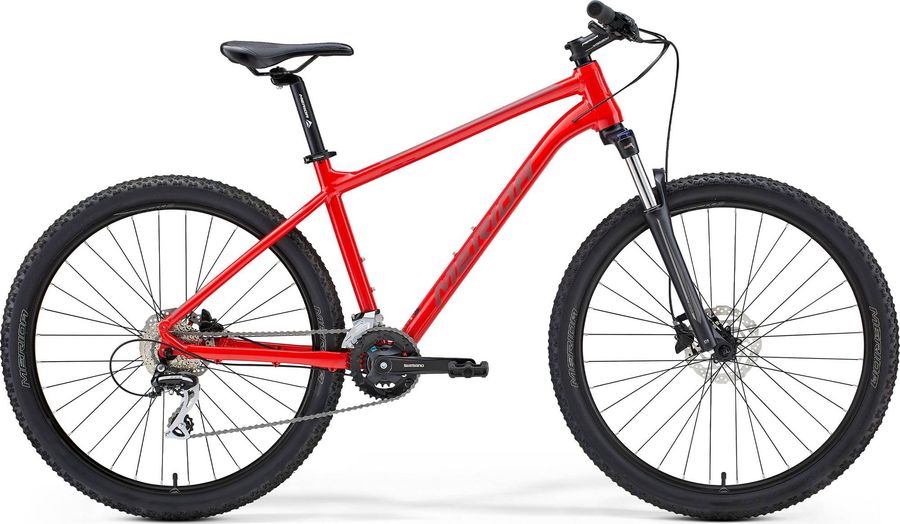

Merida BIG.SEVEN 20 2021
Groupset
Shimano Acera
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Weight
14,5 kg
Front travel
100mm
About the Merida BIG.SEVEN 20 2021
The Merida BIG.SEVEN 20 2021 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Acera drivetrain of 24 gears (3x8). Its features include hydraulic disc brakes. The bike weighs approximately 14,5 kg.
Features
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
|
Steam
|
MERIDA CC, material: aluminium, 31.8mm diameter, 6° stem angle, 70 mm-XS/S, 80 mm-M, 90 mm-L
|
|---|---|
|
Saddle
|
MERIDA Sport comfort
|
|
Headset
|
MERIDA M2345
|
|
Seatpost
|
MERIDA CC, material: aluminium, 30.9mm diameter, 15mm setback
|
|
Handlebar
|
MERIDA CC, material: aluminium, 690mm width, 15mm rise
|
|
Discs
|
Shimano RT10, 160 mm
|
|
Brakes
|
Shimano EF505 Hidráulico
|
|
Crankset
|
Shimano TY301, 42-34-24 teeth, 170 mm-XS/S, 175 mm-M/L
|
|---|---|
|
Shifter
|
Shimano ST-EF505
|
|
Bottom bracket
|
FSA TH-7420ST-W, Cartridge Bearing
|
|
Front derailleur
|
Shimano FD-TY700
|
|
Chain
|
Sunrace CN-M84
|
|
Cassette
|
Sunrace M66 11-34T 8-speed
|
|
Rear derailleur
|
Shimano Acera RD-M360
SGS
8/7s
|
|
|
|
|
Frame
|
BIG.SEVEN TFS III, material: aluminium, 27.5x2.25" max. wheelsize, 135x9mm axle standard, BSA bottom bracket standard
|
|---|---|
|
Front suspension
|
SR Suntour XCT 30
|
|
Rims
|
MERIDA CC, 17mm inner width, material: aluminium
|
|---|---|
|
Tires
|
MERIDA K1080, 27.5x2.2", wire
|
|
Rear hub
|
Shimano TX505, 100x9mm width front hub, 32 spoke holes, Centerlock, 135x9mm width rear hub, 32 spoke holes, Centerlock
|
|
Front hub
|
Shimano TX505, 100x9mm width front hub, 32 spoke holes, Centerlock, 135x9mm width rear hub, 32 spoke holes, Centerlock
|
Geometry
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
|
a
Seat tube length
|
340,0
|
380,0
|
440,0
|
480,0
|
|
b
Seat tube angle
|
73,0º
|
73,0º
|
73,0º
|
73,0º
|
|
c
Top tube length
|
541,0
|
561,0
|
581,0
|
601,0
|
|
d
Head tube length
|
100,0
|
115,0
|
130,0
|
145,0
|
|
e
Head tube angle
|
69,0º
|
69,0º
|
69,0º
|
69,0º
|
|
f
Rake
|
41,0
|
42,0
|
43,0
|
42,0
|
|
g
Trail
|
93,0
|
91,0
|
90,0
|
91,0
|
|
h
Wheelbase
|
1047,0
|
1069,0
|
1090,0
|
1111,0
|
|
i
Chainstay length
|
421,0
|
421,0
|
421,0
|
421,0
|
|
j
Bottom bracket drop
|
30,0
|
30,0
|
30,0
|
30,0
|
|
k
Stack height
|
554,0
|
568,0
|
582,0
|
596,0
|
|
l
Reach
|
369,0
|
385,0
|
400,0
|
416,0
|
|
m
Standover height
|
640,0
|
680,0
|
731,0
|
769,0
|
|
x
Bottom bracket height
|
325,0
|
325,0
|
325,0
|
325,0
|
|
y
Front center
|
628,0
|
650,0
|
671,0
|
692,0
|
