Norco Charger 1 Womens 27.5 2018

Women's Bike
MTB Cross Country
Groupset
SRAM NX
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Front travel
100mm

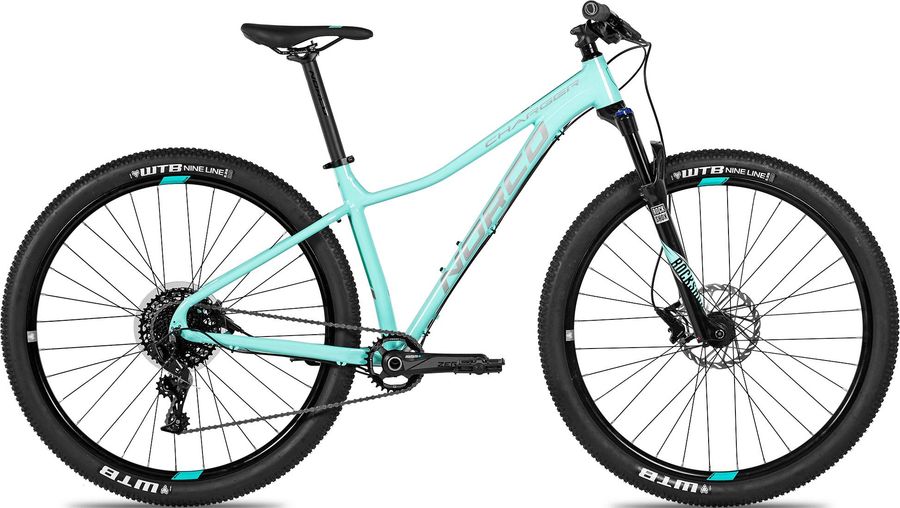

Norco Charger 1 Womens 27.5 2018

About the Norco Charger 1 Womens 27.5 2018

The Norco Charger 1 Womens 27.5 2018 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a SRAM NX drivetrain of 11 gears (1x11). Its features include boost 110 e hydraulic disc brakes.

Features

The Norco Charger 1 Womens 27.5 2018 has 2 features listed below.
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Norco Grip
Pedals
Alloy Pedals
Components
Steam
Alloy 60mm/70mm x 31.8
Saddle
Norco XC Saddle
Headset
Angular Sealed Cartridge Bearings - Tapered
Seatpost
Norco Alloy 31.6
Handlebar
X6 Alloy 750mm x 31.8
Brake lever
SRAM Level
Brakes
SRAM Level Hydraulic 430 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Black
Model
DB-LVL-A1
Name
Level
Orientation
L/F, L/R, R/F, R/R
Pad type disc
Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm G2 Rotor (TARGET)
Weight
430
Drivetrain
Crankset
SR Suntour Zeron 30T
Shifter
SRAM NX 11spd
Bottom bracket
SR Suntour BB24
Rear derailleur
SRAM NX 11s 322 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
42
Model
RD-NX-1-A1
Name
NX 1x11 X-HORIZON™ Rear Derailleur
Pulley bearings material
Steel
Speed
11s
Weight
322
Cassette
SRAM PG-1130 11s
Cog finish cassete
Black, Silver
Cog sizes
11-26t:11,12,13,14,15,16,17,19,21,23,26
11-28t:11,12,13,14,15,16,17,19,22,25,28
11-32t:11,12,13,14,15,17,19,22,25,28,32
11-36t:11,12,13,15,17,19,22,25,28,32,36
11-42t: 11,13,15,17,19,22,25,28,32,36,42
Gearing
11-26t
11-28t
11-32t
11-36t
11-42t
Model
CS-PG-1130-A1
Name
PG-1130 Cassette
Speed
11s
Technology cassete
PG
Chain
SRAM PC-1110 259 g
Chain connector
PowerLock
Chain length links
114 links
Color inner link
Grey
Color outer link
Grey
Compat speed
11s
Inner link finish
Polished
Model
CN-1110-A1
Name
PC-1110 Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
259
Frameset
Frame
Charger 6061 Alloy XC Frame w/DB TT & DT
Front suspension
RockShox Judy Gold RL Solo Air
Color
Diffusion Black, Gloss Black
Damper type
Motion Control
fork offset
42mm (27.5"), 51mm (27.5"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
160mm
Model
FS-JDYG-RL-A2
Name
Judy Gold RL
Spring
Solo Air
Travel (mm)
100mm, 120mm, 80mm
Upper tube type
30mm straight wall aluminum
Wheel size
27.5", 29"
Wheels
Rims
WTB MX21 29"/27.5" DW Rims
Tires
WTB Nineline 29"x 2.25/Beeline 27.5" x 2.25
Rear hub
Joytech D342TSE-HL Alloy Disc QR 9spd
Front hub
Novatec Boost 110mm x 15mm

Geometry

Size XXS XS SM
a
Seat tube length
340,0
390,0
430,0
b
Seat tube angle
74,0º
73,6º
73,2º
c
Top tube length
516,0
541,0
571,0
d
Head tube length
100,0
100,0
110,0
e
Head tube angle
69,0º
69,25º
69,5º
f
Rake
42,0
42,0
42,0
g
Trail
91,0
90,0
88,0
h
Wheelbase
1029,0
1047,0
1070,0
i
Chainstay length
426,0
426,0
426,0
j
Bottom bracket drop
55,0
55,0
55,0
k
Stack height
582,0
582,0
593,0
l
Reach
347,0
367,0
389,0
m
Standover height
706,0
697,0
708,0
x
Bottom bracket height
297,0
297,0
297,0
y
Front center
609,0
626,0
650,0
