Groupset
SRAM X01 Eagle
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Front travel
170mm
Rear travel
170mm

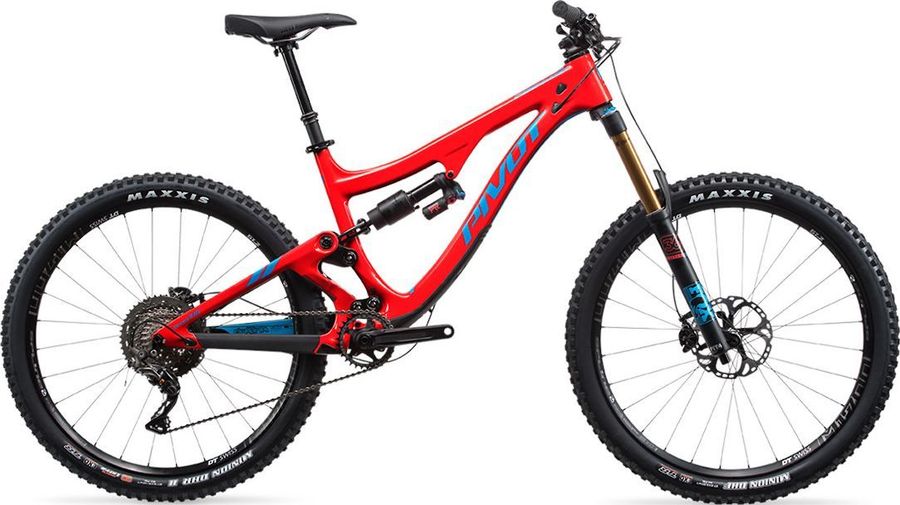

About the Pivot Firebird 27.5 RACE X01 2018
The Pivot Firebird 27.5 RACE X01 2018 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a SRAM X01 Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.
Features
Dropper seatpost
More info
Dropper seatpost
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
|
Grip
|
Phoenix Team Padloc
|
|---|---|
|
Pedals
|
None included
|
|
Steam
|
Phoenix Team Enduro, 35mm clamp, 45mm length
|
|---|---|
|
Saddle
|
Pivot WTB Vigo Race
|
|
Headset
|
Pivot Precision Sealed Bearing
|
|
Seatpost
|
FOX Transfer, 125mm or 150mm drop (KS LEV Integra for S)
|
|
Handlebar
|
Phoenix Race, aluminum, 35mm diameter, 800mm width
|
|
Brake lever
|
Shimano SLX M7000
|
|
Brakes
|
Shimano SLX BR-M7000
|
|
Chain
|
SRAM Eagle, 12-speed
|
|---|---|
|
Crankset
|
SRAM X1 Eagle
|
|
Shifter
|
SRAM GX1 Eagle, 12-speed
|
|
Bottom bracket
|
PF92
|
|
Cassette
|
SRAM X01 Eagle
|
|
Rear derailleur
|
SRAM X01 Eagle
12s
|
|
|
|
|
Frame
|
Carbon Fiber
|
|---|---|
|
Front suspension
|
Fox 36 Performance
|
|
Rear suspension
|
Fox Float DPX2
|
|
Rims
|
Sun Ringle Duroc, 30mm
|
|---|---|
|
Tires
|
Front: Maxxis Minion DHF WT, 2.5" TR 3C MaxxTerra EXO, Rear: Maxxis Minion DHR II WT, 2.4" TR 3C MaxxTerra EXO
|
|
Spokes
|
Sun Ringle Duroc
|
|
Rear hub
|
Sun Ringle Duroc, Front: Boost, 15mm x 110mm, Rear: Boost, 12mm x 148mm
|
|
Front hub
|
Sun Ringle Duroc, Front: Boost, 15mm x 110mm, Rear: Boost, 12mm x 148mm
|
Geometry
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
|
a
Seat tube length
|
393,7
|
425,5
|
457,2
|
495,3
|
|
b
Seat tube angle
|
74,0º
|
74,0º
|
74,0º
|
74,0º
|
|
c
Top tube length
|
587,3
|
609,4
|
631,7
|
654,6
|
|
d
Head tube length
|
100,1
|
110,0
|
119,9
|
130,0
|
|
e
Head tube angle
|
65,0º
|
65,0º
|
65,0º
|
65,0º
|
|
f
Rake
|
-
|
-
|
-
|
-
|
|
g
Trail
|
-
|
-
|
-
|
-
|
|
h
Wheelbase
|
1168,7
|
1197,9
|
1222,3
|
1246,4
|
|
i
Chainstay length
|
423,7
|
423,7
|
423,7
|
423,7
|
|
j
Bottom bracket drop
|
6,0
|
6,0
|
6,0
|
6,0
|
|
k
Stack height
|
579,7
|
588,8
|
597,7
|
606,6
|
|
l
Reach
|
413,8
|
438,7
|
458,8
|
478,6
|
|
m
Standover height
|
701,6
|
710,7
|
710,7
|
716,6
|
|
x
Bottom bracket height
|
349,2
|
349,2
|
349,2
|
349,2
|
|
y
Front center
|
-
|
-
|
-
|
-
|
