Pivot LES 27.5 Pro XT/XTR 2021

MTB Cross Country
Groupset
Shimano XTR
Frame material
Carbon
Wheel size
27,5"
Suspension type
Hardtail
Front travel
100mm

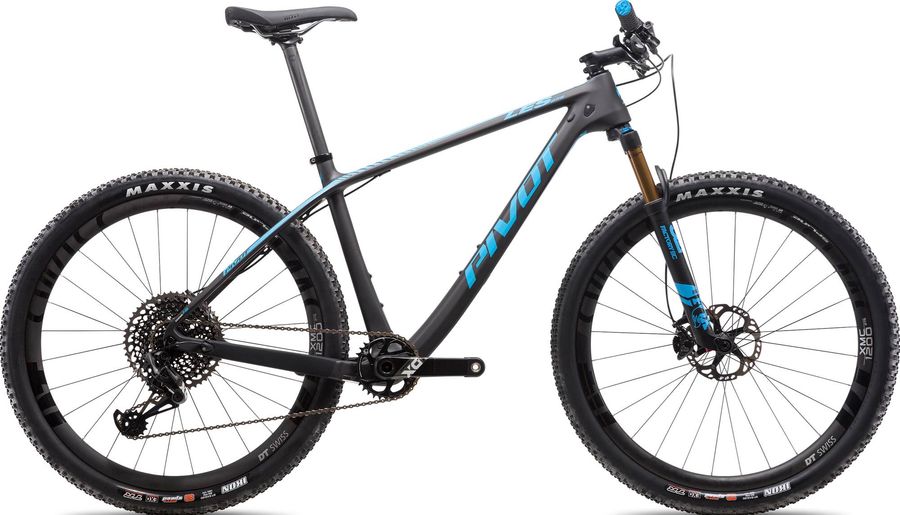

Pivot LES 27.5 Pro XT/XTR 2021

About the Pivot LES 27.5 Pro XT/XTR 2021

The Pivot LES 27.5 Pro XT/XTR 2021 is a Hardtail Cross Country Mountain Bike with a carbon frame. Equipped with a Shimano XTR drivetrain of 12 gears (1x12). Its features include hydraulic disc brakes.

Features

The Pivot LES 27.5 Pro XT/XTR 2021 has 1 features listed below.
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Phoenix Factory Lock-On
Components
Steam
Phoenix Team XC/Trail
Saddle
Phoenix WTB Pro Volt (Narrow Width)
Headset
Pivot Precision Sealed Cartridge - Race
Seatpost
Phoenix Pro Carbon
Handlebar
Phoenix Team Flat Carbon - 760mm
Discs
Shimano XT CenterLock - 160mmShimano XT CenterLock - 160mm
Brakes
Shimano Deore XT BR-M8100 392 (BL-M8100) g Hydraulic disc brake 2 piston
Average weight (g)
392 (BL-M8100)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SBM
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M8100
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
J03A Resin (w/ fin)
Pad option
J04C Metal (w/ fin)
Pad standard
G03A Resin (w/o fin)
Pad standard
G04S Metal (w/o fin)
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Recommended brake lever
BL-M8100
BL-T8100
Drivetrain
Crankset
Race Face Æffect R 34t
Shifter
Shimano XT M8100 12-Speed
Chain
Shimano CN-M8100 252 g
Average weight (g)
252
Chromizing treatment roller link pin
Model
CN-M8100
Pin link plate
Gray
Roller link plate
Chromizing
Type
HG 12-speed
Cassette
Shimano Deore XT CS-M8100-12 HYPERGLIDE+
Aluminum gear finish
Anodized
Aluminum gear pieces
2
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M8100-12
Steel gear finish
Plated
Steel gear pieces
10
Type
HYPERGLIDE+
Weights
10-45T: 461g
10-51T: 470g
Rear derailleur
Shimano XTR RD-M9100-SGS 240 g SGS 12s
Average weight (g)
240
B axle finish
Anodized
B axle hollow
B axle material
Aluminum
Bracket body finish
Anodized
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M9100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Frameset
Frame
LES 27.5
Front suspension
Fox 32 Factory SC
Wheels
Rims
DT Swiss M1700 w/ DT Swiss 350 hub & 36t Star Ratchet 25mm - 27.5"
Tires
Maxxis Ikon 27.5" x 2.2" TR, EXO, 60 TPIMaxxis Ikon 27.5" x 2.2" TR, EXO, 60 TPI

Geometry

Size XS SM MD LG
a
Seat tube length
368,0
406,0
445,0
483,0
b
Seat tube angle
73,8º
73,8º
73,8º
73,8º
c
Top tube length
553,0
581,0
601,0
621,0
d
Head tube length
89,0
102,0
108,0
120,0
e
Head tube angle
68,75º
69,25º
69,25º
69,5º
f
Rake
-
-
-
-
g
Trail
-
-
-
-
h
Wheelbase
1062,0
1076,0
1091,0
1108,0
i
Chainstay length
428,0
428,0
428,0
428,0
j
Bottom bracket drop
53,0
53,0
53,0
53,0
k
Stack height
575,0
589,0
594,0
607,0
l
Reach
386,0
402,0
415,0
430,0
m
Standover height
650,0
688,0
726,0
732,0
x
Bottom bracket height
302,0
302,0
302,0
302,0
y
Front center
-
-
-
-
