Trek Roscoe 8 2022

MTB Trail
Groupset
SRAM GX Eagle
Frame material
Alloy
Wheel size
27,5" / 29"
Suspension type
Hardtail
Weight
13,54 kg
Front travel
140mm
Price
$2,081.65

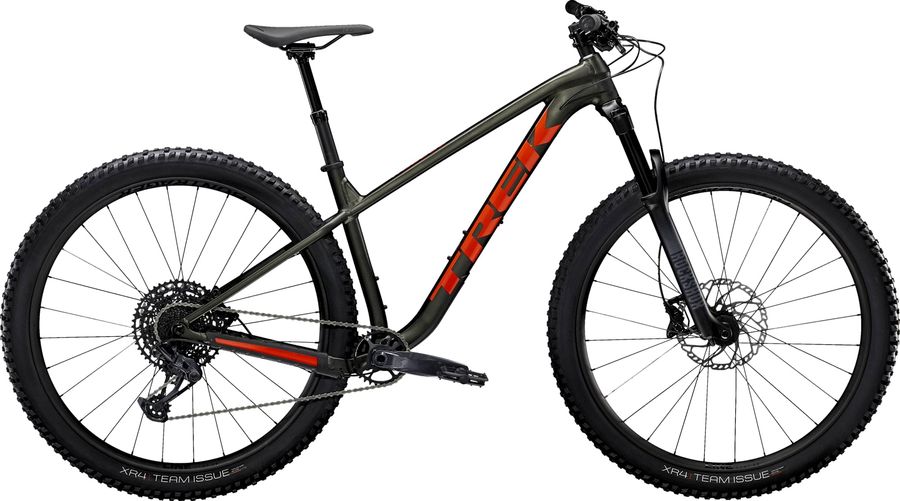

Trek Roscoe 8 2022

About the Trek Roscoe 8 2022

The Trek Roscoe 8 2022 is a Hardtail Trail Mountain Bike with a alloy frame. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 13,54 kg.

Features

The Trek Roscoe 8 2022 has 7 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
eixo-e-thru
E-THRU AXLE More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
tubeless-ready
Tubeless ready More info

Specifications

Components
Steam
Size: XS, S, Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 35mm length; Size: M, M/L, L, XL, Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 50mm length
Saddle
Bontrager Arvada, steel rails, 138mm width
Headset
FSA IS-2, 1-1/8'' top, 1.5'' bottom
Seatpost
Size: XS, S, M, TranzX JD-YSP18, 100mm travel, internal routing, 31.6mm, 361mm length; Size: M/L, L, XL, TranzX JD-YSP18, 150mm travel, internal routing, 31.6mm, 445mm length
Handlebar
Size: XS, S, Bontrager alloy, 31.8mm, 15mm rise, 750mm width; Size: M, M/L, L, XL, Bontrager Rhythm Comp, alloy, 31.8mm, 15mm rise, 780mm width
Discs
Size: XS, S, M, M/L, L, XL, Shimano RT66, 6-bolt, 180mm; Size: XS, S, M, M/L, L, XL, Shimano RT66, 6-bolt, 203mm
Brakes
Shimano BR-MT410 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black (SHIMANO logo)
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT410
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Piston
2
Piston material
Resin
Recommended disc brake rotor
SM-RT30*
SM-RT54*
SM-RT56*
Drivetrain
Crankset
Size: XS, S, M, M/L, L, SRAM X1 Eagle, DUB, 30T steel ring, Boost (52mm chainline), 170mm length; Size: XL, SRAM X1 Eagle, DUB, 30T steel ring, Boost (52mm chainline), 175mm length
Shifter
SRAM NX Eagle, 12 speed
Bottom bracket
SRAM DUB, 73mm, BSA threaded
Chain
SRAM NX Eagle 252 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Grey
Color outer link
Grey
Compat speed
12s-Eagle
Inner link finish
Polished
Model
CN-EAGL-NX-A1
Name
NX Eagle Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
252
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Cassette
SRAM PG-1230 Eagle 12s 615 g
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1230-A1
Name
PG-1230 Eagle Cassette
Speed
12s
Technology cassete
PG
Weight
615
Frameset
Frame
Alpha Gold Aluminum, tapered head tube, internal derailleur & dropper post routing, ISCG 05, threaded BB, Boost148
Front suspension
RockShox 35 Gold RL DebonAir
Color
Diffusion Black, Gloss Black
Damper type
Motion Control
fork offset
37mm (27.5"), 44mm (27.5"), 44mm (29"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
180mm
Model
FS-35G-RL-A1
Name
35 Gold RL
Spring
DebonAir
Travel (mm)
100mm, 120mm, 130mm, 140mm, 150mm, 160mm
Upper tube type
35mm straight wall aluminum
Wheel size
27.5", 29"
Wheels
Rims
Bontrager Line 30, Tubeless Ready, 28-hole, presta valve
Tires
Size: XS, Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 27.5x2.60''; Size: S, M, M/L, L, XL, Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 29x2.60''
Spokes
14g stainless steel
Rear hub
Bontrager alloy, sealed bearing, 6-bolt, Rapid Drive 108, Shimano 10 freehub, Boost148, 12mm thru axle
Front hub
Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15mm thru axle

Geometry

Size XS SM MD MD/LG LG XL
a
Seat tube length
340,0
360,0
420,0
435,0
450,0
500,0
b
Seat tube angle
74,7º
74,7º
74,7º
74,7º
74,7º
74,7º
c
Top tube length
543,0
577,0
605,0
621,0
637,0
668,0
d
Head tube length
90,0
90,0
100,0
105,0
110,0
135,0
e
Head tube angle
65,0º
65,0º
65,0º
65,0º
65,0º
65,0º
f
Rake
43,0
42,0
43,0
43,0
43,0
43,0
g
Trail
122,0
131,0
131,0
131,0
131,0
131,0
h
Wheelbase
1111,0
1142,0
1172,0
1189,0
1206,0
1241,0
i
Chainstay length
421,0
421,0
421,0
421,0
421,0
421,0
j
Bottom bracket drop
45,0
61,0
61,0
61,0
61,0
61,0
k
Stack height
582,0
617,0
626,0
630,0
635,0
657,0
l
Reach
381,0
406,0
431,0
446,0
461,0
486,0
m
Standover height
720,0
732,0
739,0
733,0
746,0
756,0
x
Bottom bracket height
319,0
322,0
322,0
322,0
322,0
322,0
y
Front center
694,0
728,0
758,0
775,0
792,0
827,0
