Vitus Sentier 29 VRS 2020

MTB Trail
Groupset
Shimano XT
Frame material
Alloy
Wheel size
29"
Suspension type
Hardtail
Weight
13,64 kg
Front travel
130mm

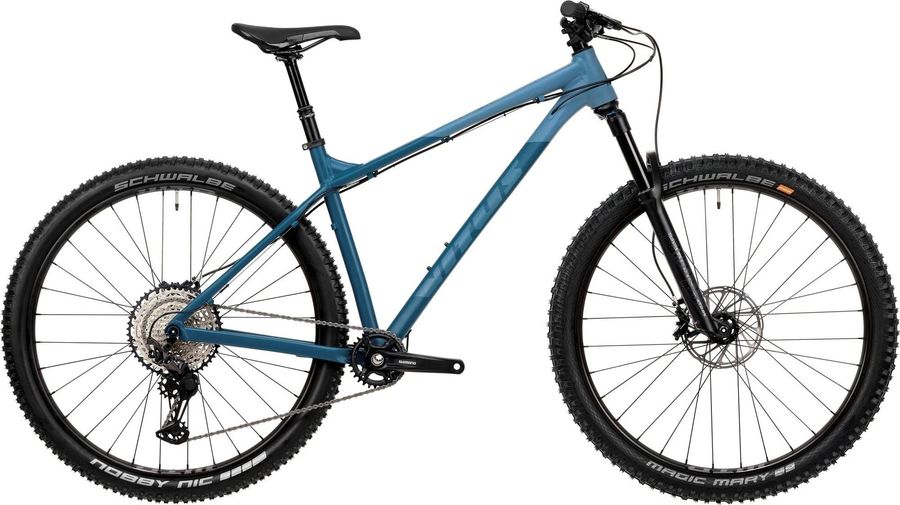

Vitus Sentier 29 VRS 2020

About the Vitus Sentier 29 VRS 2020

The Vitus Sentier 29 VRS 2020 is a Hardtail Trail Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 13,64 kg.

Features

The Vitus Sentier 29 VRS 2020 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
VITUS Tapered, single alloy clamp, sticky rubber
Components
Steam
Nukeproof Neutron 45mm, 31.8mm bar diameter, 0deg rise
Saddle
Nukeproof Neutron N/A
Headset
ACROS ZS 44mm/56mm
Seatpost
Brand X Ascend 31.6mm, Left hand remote lever, S100mm, M120mm, L150mm, XL 170mm
Handlebar
Nukeproof Neutron 25mm Rise, Width - S760mm, M780mm, L800mm, XL800mm, 31.8mm bar diameter
Brakes
SRAM Guide T Hydraulic
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-GDE-T-A1
Name
Guide T
Orientation
L/F, L/R, R/F, R/R
Pad type disc
Steel-backed organic
Drivetrain
Crankset
Shimano MT610 12 speed, 170MM, 30T, 52mm Boost chainline, Hollowtech 2
Shifter
Shimano SLX 12 speed N/A
Bottom bracket
Shimano SM-BB52, Theaded 73mm BSA
Rear derailleur
Shimano Deore XT RD-M8100 284 g SGS 12s
Average weight (g)
284
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M8100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Cassette
Shimano SLX CS-M7100-12 HYPERGLIDE+
Aluminum gear finish
Anodized
Aluminum gear pieces
1
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M7100-12
Steel gear finish
Plated
Steel gear pieces
11
Type
HYPERGLIDE+
Weights
10-45T: 513g
10-51T: 534g
Chain
KMC Z9
Frameset
Frame
Sentier 29" hardtail frame, Boost spacing, 6061 alloy
Front suspension
RockShox Revelation RC DebonAir
Color
Diffusion Black, Gloss Black
Damper type
Motion Control
fork offset
37mm (27.5"), 42mm (29"), 46mm (27.5"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
180mm
Model
FS-RVL-RC-A2
Name
Revelation RC
Spring
DebonAir
Travel (mm)
120mm, 130mm, 140mm, 150mm, 160mm
Upper tube type
35mm tapered wall aluminum
Wheel size
27.5", 29"
Wheels
Rims
WTB ST i30 TCS 2.0, 29", 30mm inner diameter, 32 hole, Pinned Joint
Tires
SCHWALBE MAGIC MARY Evo, 29" x 2.35", SnakeSkin, TLE, ADDIX Soft
Spokes
14G STAINLESS DB BLACK BLACK BRASS NIPPLES
Rear hub
VITUS M5ER, Boost 12x148mm, DOUBLE SEALED BEARINGS, 32H, Shimano MICROSPLINE 12spd Driver Body, 6 BOLT
Front hub
VITUS DHF112 Boost 15x110mm, DOUBLE SEALED BEARINGS, 32H, 6 BOLT

Geometry

Size MD LG XL
a
Seat tube length
432,0
483,0
520,0
b
Seat tube angle
73,0º
73,0º
73,0º
c
Top tube length
618,0
638,0
663,0
d
Head tube length
110,0
120,0
130,0
e
Head tube angle
66,5º
66,5º
66,5º
f
Rake
42,0
41,0
41,0
g
Trail
117,0
118,0
118,0
h
Wheelbase
1159,0
1180,0
1206,0
i
Chainstay length
437,0
437,0
437,0
j
Bottom bracket drop
61,5
61,5
61,5
k
Stack height
641,0
650,0
659,0
l
Reach
426,0
444,0
466,0
m
Standover height
-
-
-
x
Bottom bracket height
313,0
313,0
313,0
y
Front center
729,0
750,0
776,0
