Audax Auge 555 2019

MTB Cross Country
Groupset
SRAM NX
Frame material
Alloy
Wheel size
29"
Suspension type
Hardtail
Audax Auge 555 2019

About the Audax Auge 555 2019

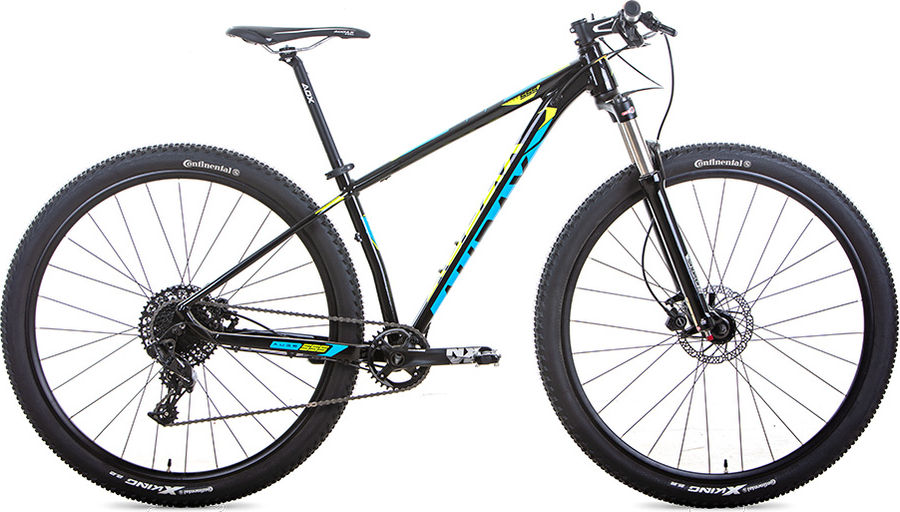

The Audax Auge 555 2019 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a SRAM NX drivetrain of 11 gears (1x11).

Specifications

Components
Steam
ADX 90mm
Handlebar
ADX 700mm
Drivetrain
Bottom bracket
SRAM GXP 108 g
BB frame interface
English/BSA (MTB/Road: 68/73mm), English/BSA (MTB: 83mm), English/BSA 100mm, English/BSA 68/73mm, English/BSA 68mm, English/BSA 73mm, English/BSA 83mm, English/BSA Tandem, Italian (70mm)
Bearing type
Ceramic, Standard
Chain line
51.0mm, n/a
Crank interface
GXP
Cup material
Aluminum
Model
BB-GXP-A1
Name
GXP Bottom Bracket
Spindle diameter
24mm
Weight based on
BB GXP Team English 68/73
Weight
108
Rear derailleur
SRAM NX 11s 322 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
42
Model
RD-NX-1-A1
Name
NX 1x11 X-HORIZON™ Rear Derailleur
Pulley bearings material
Steel
Speed
11s
Weight
322
Cassette
SRAM PG-1130 11s
Cog finish cassete
Black, Silver
Cog sizes
11-26t:11,12,13,14,15,16,17,19,21,23,26
11-28t:11,12,13,14,15,16,17,19,22,25,28
11-32t:11,12,13,14,15,17,19,22,25,28,32
11-36t:11,12,13,15,17,19,22,25,28,32,36
11-42t: 11,13,15,17,19,22,25,28,32,36,42
Gearing
11-26t
11-28t
11-32t
11-36t
11-42t
Model
CS-PG-1130-A1
Name
PG-1130 Cassette
Speed
11s
Technology cassete
PG
Shifter
SRAM NX
Chain
SRAM PC-1110 259 g
Chain connector
PowerLock
Chain length links
114 links
Color inner link
Grey
Color outer link
Grey
Compat speed
11s
Inner link finish
Polished
Model
CN-1110-A1
Name
PC-1110 Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
259
Crankset
SRAM NX 10/11s 745 g
BB compatibility
BB30/PF30-68/73mm
GXP 100mm/PF GXP 121mm
GXP/PF GXP 68/73mm
PowerSpline BB
BB spindle interface
24mm, 30mm, Power Spline
Bolt circle diameter bcd
94 BCD, Direct Mount (DM)
Chain line
49.0mm, 52.0mm, 66.5mm
Chainring material
Aluminum, Steel
Chainring size
28T, 30T, 32T, 36T, 38T
Crank arm length
155mm, 165mm, 170mm, 175mm
Model
FC-NX-1-A1
Name
NX 1x X-SYNC™ Crankset
Speeds
10/11
Weight based on
GXP 175mm 32t Alu
Weight
745
Frameset
Front suspension
SR Suntour XCR 32 AIR
Frame
Audax Alumínio 6069

Geometry

Size 15.5 17.5 19.5 21
a
Seat tube length
400,0
440,0
490,0
520,0
b
Seat tube angle
73,0º
73,0º
73,0º
73,0º
c
Top tube length
580,0
596,0
520,0
531,0
d
Head tube length
103,0
113,0
123,0
133,0
e
Head tube angle
71,0º
71,0º
71,5º
71,5º
f
Rake
-
-
-
-
g
Trail
51,0
51,0
51,0
51,0
h
Wheelbase
1068,0
1084,0
1102,0
1114,0
i
Chainstay length
440,0
440,0
440,0
440,0
j
Bottom bracket drop
57,0
57,0
57,0
57,0
k
Stack height
612,0
622,0
634,0
643,0
l
Reach
393,0
405,0
426,0
434,0
m
Standover height
-
-
-
-
x
Bottom bracket height
-
-
-
-
y
Front center
-
-
-
-
