Bianchi Grizzly 29.1 2018

MTB Cross Country
Groupset
Shimano XT
Frame material
Alloy
Wheel size
29"
Suspension type
Hardtail
Front travel
100mm

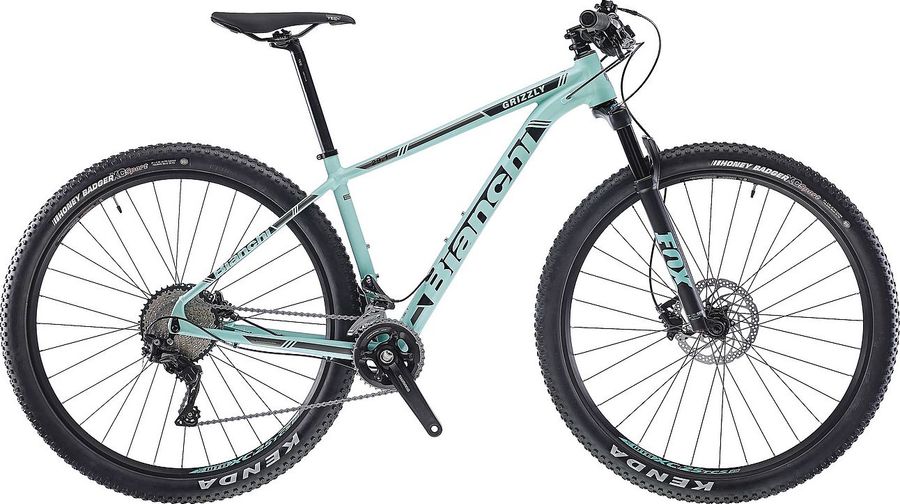

Bianchi Grizzly 29.1 2018

About the Bianchi Grizzly 29.1 2018

The Bianchi Grizzly 29.1 2018 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain of 22 gears (2x11). Its features include internal routing, boost 110 , and boost 148.

Features

The Bianchi Grizzly 29.1 2018 has 6 features listed below.
cabeamento-interno
Internal routing More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
trava-remota-guidao
Remote lockout More info

Specifications

Components
Steam
Tec Obvius 3D forged alloy, 31.8mm
Saddle
Tec, carbon steel rail
Headset
FSA Orbit 1.5E ZS
Seatpost
Tec Obvius, AL2014 shaft with forged head, diam. 27.2mm, 20mm seatback, length: 350mm-15/17'', 400mm-19/21"
Handlebar
Tec Obvius flat DB Alloy , 720mm, 31.8mm, 9° backsweep
Discs
Shimano RT30 180mm front & 160mm rear, Center Lock, for resin pad only
Brakes
Shimano BR-MT420 Hydraulic disc brake 4 piston
Brake hose color kit
Black
Brake hose kit
SM-BH90-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT420
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
D03S Resin
Pad standard
D02S Metal
Pad mount
Split pin
Piston
4
Piston material
Resin
Recommended brake lever
BL-MT401
BL-MT402-3A
Recommended disc brake rotor
SM-RT30 *
SM-RT54 *
SM-RT56 *
SM-RT64
Drivetrain
Crankset
Shimano MT600-B2 36/26T
Shifter
Shimano SLX M7000 2x11sp
Bottom bracket
Shimano MT800-PA PressFit 41x92mm
Front derailleur
Shimano SLX M7020-D High Direct mount, Sideswing, 66/69°, for 34/38T w/10T capacity
Rear derailleur
Shimano Deore XT RD-M8000-GS 271 g GS 11s
Average weight (g)
271
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Aluminum
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 11-speed
Lower pulley max
42T(2x11-speed),
46T(1x11-speed)
Lower pulley min
40T
Model
RD-M8000-GS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
GS
Speeds
11
Upper pulley max
11T
Upper pulley min
11T
Total capacity
39T
Cassette
Shimano SLX CS-M7000-11 HG
Aluminum gear pieces
1 (11-40T)
1 (11-42T)
2 (11-46T)
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
1
Combination names
11-40T
11-42T
11-46T
Compatible chain
HG 11-speed, LG
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M7000-11
Steel gear finish
Shot-Ni
Steel gear pieces
10 (11-40T)
10 (11-42T)
9 (11-46T)
Type
HG
Weights
11-40T: 450g
11-42T: 476g
11-46T: 482g
Chain
KMC X11
Frameset
Frame
Grizzly 29" Alu, 1.5" tapered HT, PF 41x92mm, seatpost diam. 27,2mm, HDM Front Derailleur, bottom pull, PM 160mm, 12x148mm BOOST, internal cable routing inside DT
Front suspension
Fox 32 Float Rhythm Grip
Wheels
Tires
Kenda Honey Badger XC Sport 29x2.2
Rear hub
Formula CL-1248 for Center Lock, 32h 12x148mm BOOST, 2 sealed bearings, j-bend spokes
Front hub
Formula CL-811 for Center Lock, 32h, 15x110mm TA, sealed bearings

Geometry

Size SM MD LG XL
a
Seat tube length
-
-
-
-
b
Seat tube angle
74,0º
74,0º
74,0º
74,0º
c
Top tube length
570,0
590,0
615,0
635,0
d
Head tube length
90,0
100,0
110,0
120,0
e
Head tube angle
69,5º
69,5º
69,5º
69,5º
f
Rake
51,0
51,0
51,0
51,0
g
Trail
86,0
86,0
86,0
86,0
h
Wheelbase
1069,0
1089,0
1114,0
1135,0
i
Chainstay length
429,0
429,0
429,0
429,0
j
Bottom bracket drop
60,0
60,0
60,0
60,0
k
Stack height
596,0
605,0
614,0
624,0
l
Reach
389,0
406,0
428,0
445,0
m
Standover height
-
-
-
-
x
Bottom bracket height
314,0
314,0
314,0
314,0
y
Front center
647,0
667,0
692,0
713,0
