Bianchi Kuma 27.2 2018

MTB Cross Country
Groupset
Shimano Alivio
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Front travel
100mm

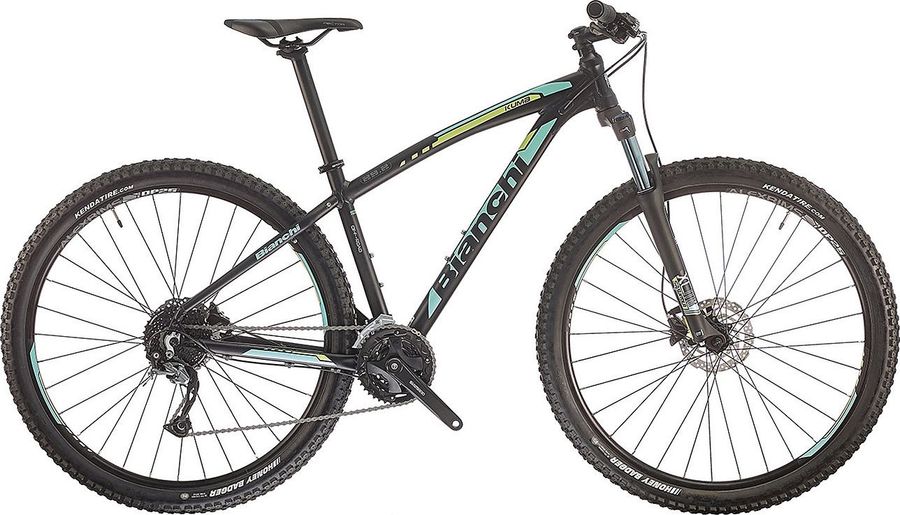

Bianchi Kuma 27.2 2018

About the Bianchi Kuma 27.2 2018

The Bianchi Kuma 27.2 2018 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Alivio drivetrain of 27 gears (3x9). Its features include hydraulic disc brakes.

Features

The Bianchi Kuma 27.2 2018 has 1 features listed below.
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Components
Steam
Tec 3D forged alloy 6061, +/-7°, 1.1/8", diam. 31.8mm
Saddle
Tec Rector, 140mm width, Steel rails, Pvc soft touch cover
Headset
FSA TH888
Seatpost
Tec Aluminum, alloy head, 350mm length, 31.6mm diameter, 12mm seatback
Handlebar
Tec PG Alloy 6061, 700mm, 31.8mm, 15mm rise, 9° backsweep
Discs
Shimano RT10, 160mm front & rear, Center Lock, for resin pad only
Brakes
Shimano Altus BR-M315
Drivetrain
Crankset
Shimano Altus, 40/30/22T
Shifter
Shimano Altus 9sp
Bottom bracket
Shimano UN100
Front derailleur
Shimano Altus
Chain
KMC 9v
Cassette
Shimano Altus CS-HG200-9 HG
Combination names
11-32T
11-34T
11-36T
Compatible chain
HG 9-speed
Lock ring finish
Phosphate coated
Lock ring material
Steel
Model
CS-HG200-9
Steel gear finish
Phosphate coated
Steel gear pieces
9
Type
HG
Rear derailleur
Shimano Alivio RD-M3100 SGS 9s
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
CN-HG53 9-speed
Lower pulley max
36T
Lower pulley min
32T
Model
RD-M3100-SGS
P axle finish
Zinc plated
P axle material
Steel
pulley.screws_material
Steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
Pulley cage
SGS
Speeds
9
Upper pulley max
12T
Upper pulley min
11T
Total capacity
45T
Frameset
Frame
Kuma 29" aluminum with 1.1/8" headtube, BSA 68mm bottom bracket shell, 31.6mm seatpost diameter, low clamp 34.9mm bottom pull front derailleur mount, PM 160mm disc, lower mounting dropouts 9x135mm QR, ST w/o V-Brake studs
Front suspension
SR Suntour XCM HLO
Wheels
Tires
Kenda Small Block Eight 27,5x2.10
Rear hub
Formula CL-1422 for Center Lock, 32h, 135mm OLD, loose balls, axle length 145mm, w/QR
Front hub
Formula CL-1420 for Center Lock, 32h 100mm OLD, loose balls, axle length 108mm, w/QR

Geometry

Size SM MD LG XL
a
Seat tube length
-
-
-
-
b
Seat tube angle
73,5º
73,5º
73,5º
73,5º
c
Top tube length
560,0
580,0
605,0
625,0
d
Head tube length
100,0
110,0
115,0
120,0
e
Head tube angle
71,0º
71,0º
71,0º
71,0º
f
Rake
-
-
-
-
g
Trail
-
-
-
-
h
Wheelbase
-
-
-
-
i
Chainstay length
435,0
435,0
435,0
435,0
j
Bottom bracket drop
50,0
50,0
50,0
50,0
k
Stack height
586,0
595,0
600,0
605,0
l
Reach
386,0
404,0
427,0
446,0
m
Standover height
-
-
-
-
x
Bottom bracket height
305,0
305,0
305,0
305,0
y
Front center
-
-
-
-
