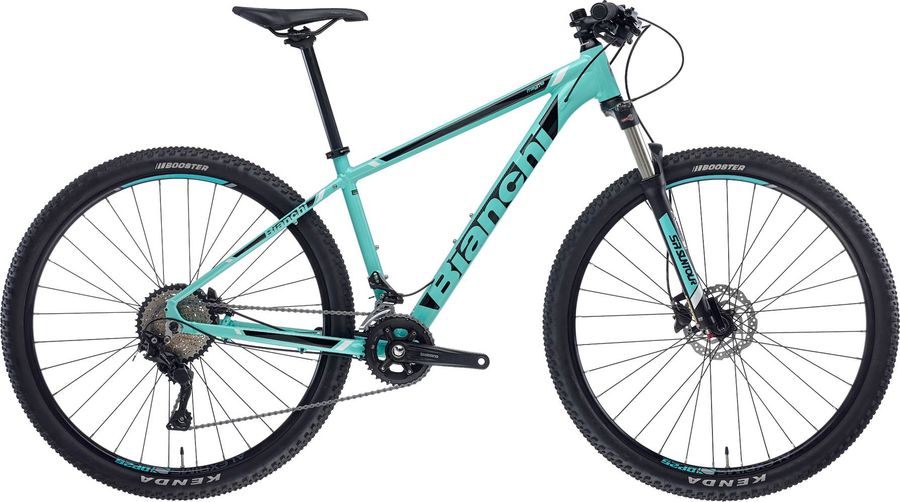

Bianchi Magma 9.0 – Deore 2019

MTB Cross Country

Groupset

Shimano Deore

Frame material

Alloy

Wheel size

29"

Suspension type

Hardtail

Front travel

100mm

About the Bianchi Magma 9.0 – Deore 2019

The Bianchi Magma 9.0 – Deore 2019 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 11 gears (1x11). Its features include internal routing e hydraulic disc brakes.

Features

The Bianchi Magma 9.0 – Deore 2019 has 2 features listed below.

Internal routing More info

Hydraulic disc brakes More info

Specifications

Acessories
Grip	T-one T-GP48B
Pedals	included

Components
Steam	Tec Obvius 3D forged alloy 6061 anodized sandblasted, +/-7°, 1.1/8", diam. 31.8mm, lenght: 80mm-15/17", 90mm-19/21"
Saddle	Tec Rector, Steel rails
Headset	Fsa TH888
Seatpost	Tec, AL2014 shaft, alloy head, diam. 27,2mm, 0mm seatback, length: 350mm
Handlebar	Tec Obvius flat DB Alloy 6061-T6, width 720mm, diam. 31,8mm, 9° backsweep
Discs	Shimano SM-RT10 160mm
Brakes	Shimano BR-MT200 Hydraulic disc brake 2 piston
Brake hose color kit Black Brake hose kit SM-BH59-JK-SS Brake type Hydraulic disc brake Caliper finish Painted Caliper material Aluminum Caliper fixing bolt anti loosen method Snap ring Caliper fixing bolt material Steel Caliper fixing bolt tool size 5 mm Primary color Black Hose joint Straight J-Kit spec for OEM Model BR-MT200 Mount type Post-type Oil SHIMANO Mineral One way bleeding Pad standard B03S Resin Pad mount Split pin Piston 2 Piston material Resin Recommended brake lever BL-MT201 BL-MT200 Recommended disc brake rotor SM-RT10* SM-RT26*

Drivetrain
Crankset	Shimano FC-M5100-1, 32T, crank length: 170mm-15", 175mm-17/21"
Shifter	Shimano Deore SL-M5100-R 1x11sp
Bottom bracket	included in the crankset
Rear derailleur	Shimano Deore RD-M5100-SGS SGS 11s
B axle hollow B axle material Stainless steel Bracket body finish Painted Bracket body material Aluminum Compatible chain HG-X11 11-speed Lower pulley max 51T Lower pulley min 51T Model RD-M5100-SGS P axle material Steel pulley.screws_material Stainless steel pulley.sunken_type_pulley_screw Pulley teeth 13T Pulley cage SGS Speeds 11 Upper pulley max 11T Upper pulley min 11T Total capacity 40T
Chain	KMC 11v
Cassette	Shimano Deore CS-M5100-11 HG
Aluminum spider arm finish Painted Aluminum spider arm pieces 1 Combination names 11-42T 11-51T Compatible chain HG 11-speed, LG Lock ring finish Plated Lock ring material Steel Model CS-M5100-11 Steel gear finish Plated Steel gear pieces 11 Type HG

Frameset
Frame	Magma 29 alu, 1.1/8" HT, BSA 68mm, seatpost diam. 27,2mm, HDM bottom pull or Side-Swing, PM 160mm, BOOST 9x141mm QR, internal cable routing, sizes 15-17-19-21"
Front suspension	RockShox Judy TK
