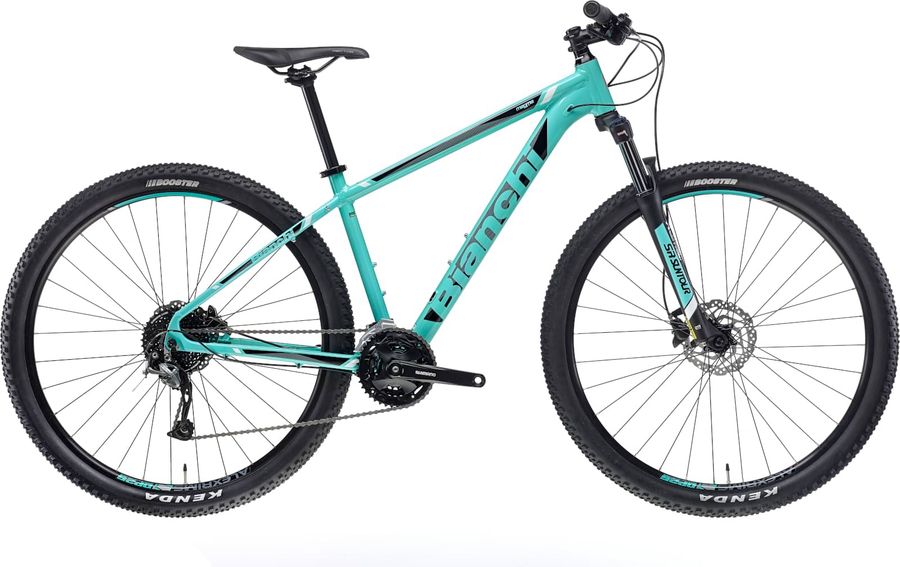

Bianchi Magma 9.2 – Alivio/Altus 2021

MTB Cross Country

Groupset

Shimano Alivio

Frame material

Alloy

Wheel size

29"

Suspension type

Hardtail

Front travel

100mm

About the Bianchi Magma 9.2 – Alivio/Altus 2021

The Bianchi Magma 9.2 – Alivio/Altus 2021 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Alivio drivetrain of 18 gears (2x9). Its features include internal routing e hydraulic disc brakes.

Features

The Bianchi Magma 9.2 – Alivio/Altus 2021 has 2 features listed below.

Internal routing More info

Hydraulic disc brakes More info

Specifications

Acessories
Grip	T-one T-GP48B
Pedals	included

Components
Steam	Tec 3D forged alloy 6061, +/-7°, 1.1/8", diam. 31.8mm, ext: 80mm-15/17", 90mm-19/21"
Saddle	Tec Rector, Steel rails
Headset	Fsa TH888
Seatpost	Tec, AL2014 shaft, alloy head, diam. 27,2mm, 0mm seatback, length: 350mm
Handlebar	Tec PG Alloy 6061, width 700mm, diam. 31,8mm, rise 15mm, backsweep 9°
Discs	Shimano SM-RT10, 160mm front & rear, Center Lock
Brakes	Shimano BR-MT200 Hydraulic disc brake 2 piston
Brake hose color kit Black Brake hose kit SM-BH59-JK-SS Brake type Hydraulic disc brake Caliper finish Painted Caliper material Aluminum Caliper fixing bolt anti loosen method Snap ring Caliper fixing bolt material Steel Caliper fixing bolt tool size 5 mm Primary color Black Hose joint Straight J-Kit spec for OEM Model BR-MT200 Mount type Post-type Oil SHIMANO Mineral One way bleeding Pad standard B03S Resin Pad mount Split pin Piston 2 Piston material Resin Recommended brake lever BL-MT201 BL-MT200 Recommended disc brake rotor SM-RT10* SM-RT26*

Drivetrain
Crankset	Shimano FC-MT101-2, 36/22T, crank length: 170mm-15/17", 175mm-19/21"
Shifter	Shimano Alivio SL-M3100 2x9sp
Bottom bracket	Shimano BB-UN101
Front derailleur	Shimano FD-M2000-TS
Chain	KMC 9v
Cassette	Shimano Altus CS-HG200-9 HG
Combination names 11-32T 11-34T 11-36T Compatible chain HG 9-speed Lock ring finish Phosphate coated Lock ring material Steel Model CS-HG200-9 Steel gear finish Phosphate coated Steel gear pieces 9 Type HG
Rear derailleur	Shimano Alivio RD-M3100 SGS 9s
B axle hollow B axle material Stainless steel Bracket finish Painted Bracket material Steel Bracket body finish Painted Bracket body material Aluminum Compatible chain CN-HG53 9-speed Lower pulley max 36T Lower pulley min 32T Model RD-M3100-SGS P axle finish Zinc plated P axle material Steel pulley.screws_material Steel pulley.sunken_type_pulley_screw Pulley teeth 11T Pulley cage SGS Speeds 9 Upper pulley max 12T Upper pulley min 11T Total capacity 45T

Frameset
Frame	Magma 29" alu, 1,1/8" HT, BSA 68mm, seatpost diam. 27,2mm, low clamp FD diam. 31,8mm bottom pull or Side-Swing, PM 160mm, dropouts 9x135mm QR, internal cable routing, sizes 15-17-19-21"
Front suspension	SR Suntour XCM HLO
