Bianchi Magma 9.S – SX Eagle 2019

MTB Cross Country

Groupset

SRAM SX Eagle

Frame material

Alloy

Wheel size

29"

Suspension type

Hardtail

Front travel

100mm

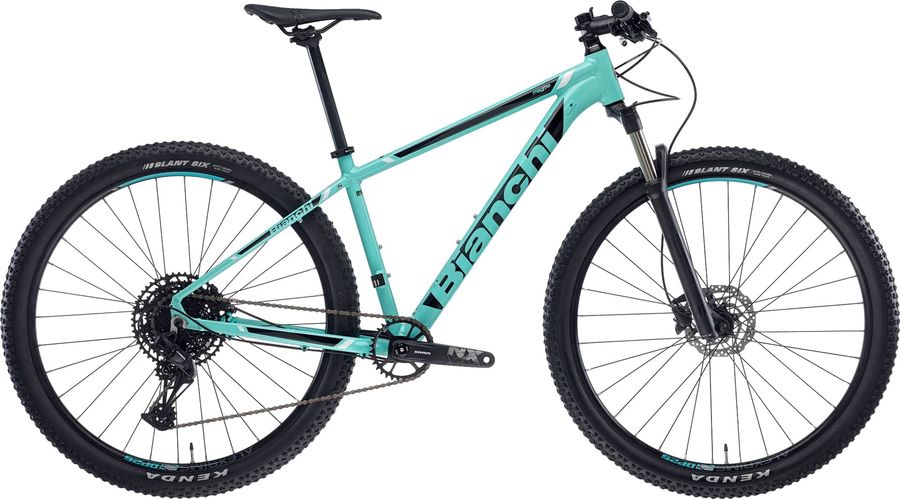

About the Bianchi Magma 9.S – SX Eagle 2019

The Bianchi Magma 9.S – SX Eagle 2019 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a SRAM SX Eagle drivetrain of 12 gears (1x12). Its features include internal routing e hydraulic disc brakes.

Features

The Bianchi Magma 9.S – SX Eagle 2019 has 2 features listed below.

Internal routing More info

Hydraulic disc brakes More info

Specifications

Acessories
Grip	T-one T-GP48B

Components
Steam	Velomann 3D forged Alloy 6061, +/-7°, 1.1/8mm, diam. 31.8mm, ext: 80mm-15/17", 90mm-19/21"
Saddle	Velomann, steel rails, PVC soft touch cover, 140mm width
Headset	Fsa TH888
Seatpost	Velomann AL2014 shaft w/alloy head, diam. 27.2mm, 0mm seatback, length 350mm
Handlebar	Velomann Flat top DB Alloy 6061-T6, width 720mm, diam. 31,8mm, 9° backsweep
Discs	Tektro TR160-35, diam. 160mm
Brakes	Tektro HD-M275

Drivetrain
Crankset	SRAM X1 1000 Eagle Dub 32T, 52mm chainline BOOST compatible, crank lenght: 170mm-15", 175mm-17/21"
Shifter	SRAM SX Eagle 1x12sp trigger
Bottom bracket	SRAM DUB Bsa
Chain	SRAM SX Eagle
Rear derailleur	SRAM SX Eagle 12s
Cable pull ratio X-actuation Cage Long Cage material Steel Color Black Max tooth 50 Model RD-SX-1-A1 Name SX Eagle Rear Derailleur Pulley bearings material Steel Speed 12s
Cassette	SRAM SX PG1210

Frameset
Frame	Magma 29 alu, 1.1/8" HT, BSA 68mm, seatpost diam. 27,2mm, HDM bottom pull or Side-Swing, PM 160mm, BOOST 9x141mm QR, internal cable routing, sizes 15-17-19-21"
Front suspension	RockShox Judy Silver TK Solo Air
Color Diffusion Black, Gloss Black Damper type TurnKey fork offset 42mm (27.5"), 51mm (27.5"), 51mm (29") Max tire width (mm) 81 Maximum rotor size 220mm Minimum rotor size 160mm Model FS-JDYS-TK-A2 Name Judy Silver TK Spring Solo Air Travel (mm) 100mm, 120mm, 130mm, 80mm Upper tube type 30mm straight wall steel Wheel size 27.5", 29"
