Bianchi Methanol CV FS 9.2 – XTR/XT 2021

MTB Cross Country

Groupset

Shimano XTR

Frame material

Carbon

Wheel size

29"

Suspension type

Full suspension

Front travel

100mm

Rear travel

100mm

About the Bianchi Methanol CV FS 9.2 – XTR/XT 2021

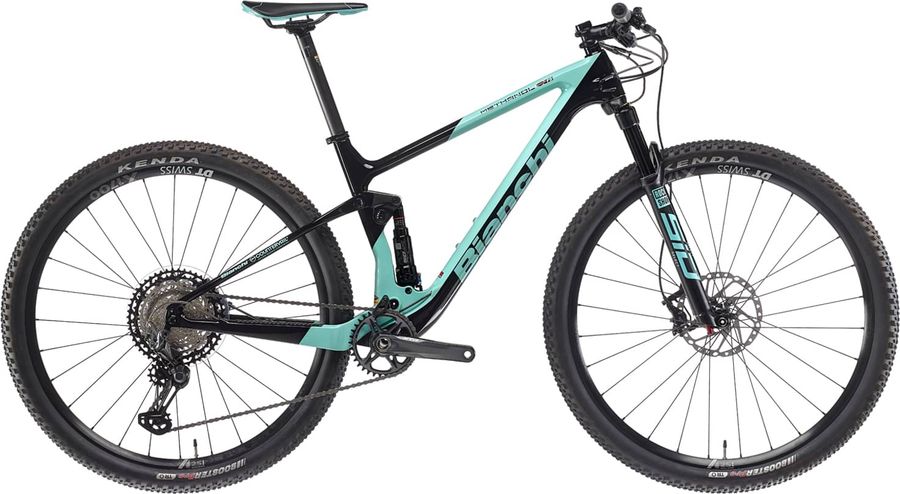

The Bianchi Methanol CV FS 9.2 – XTR/XT 2021 is a Full suspension Cross Country Mountain Bike with a carbon frame. Equipped with a Shimano XTR drivetrain of 12 gears (1x12). Its features include internal routing, boost 148, and hydraulic disc brakes.

Features

The Bianchi Methanol CV FS 9.2 – XTR/XT 2021 has 4 features listed below.

Internal routing More info

Boost 148 More info

Hydraulic disc brakes More info

Tapered head tube More info

Specifications

Acessories
Grip	T-One T-GP43X

Components
Steam	Tec Cursus, 3D forged AL7050-T6 w/forged alloy faceplate,+/-7º, 1.1/8", diam. 31.8mm, ext: 60mm-15'', 70mm-17", 80mm-19, 90mm-21"
Saddle	Fi'zi:k Taiga, S-alloy rails
Headset	Fsa Orbit C-40
Seatpost	Tec Cursus Carbon SB0, carbon UD fiber shaft w/forged head, diam. 31.6mm, 0mm seatback, length: 350mm-15'', 400mm-17/21"
Handlebar	Tec Cursus flat, double butted AL2014-T6, width 740mm, diam. 31,8mm, 9° backsweep
Discs	Shimano RT-MT800 diam. front 180mm and rear 160mm
Brakes	Shimano Deore XT BR-M8100 392 (BL-M8100) g Hydraulic disc brake 2 piston
Average weight (g) 392 (BL-M8100) Brake hose color kit Black Brake hose kit SM-BH90-SBM Brake type Hydraulic disc brake Caliper finish Painted Caliper material Aluminum Caliper fixing bolt anti loosen method Snap ring Caliper fixing bolt material Steel Caliper fixing bolt tool size 5 mm Primary color Series color Hose joint Banjo ICE TECHNOLOGIES pad compatible caliper J-Kit spec for OEM Model BR-M8100 Mount type Post-type Oil SHIMANO Mineral One way bleeding Pad option J03A Resin (w/ fin) Pad option J04C Metal (w/ fin) Pad standard G03A Resin (w/o fin) Pad standard G04S Metal (w/o fin) Pad mount Pad axle Piston 2 Piston material Ceramic Recommended brake lever BL-M8100 BL-T8100

Drivetrain
Crankset	Shimano XTR FC-M9100-1 34T, 162mm Q- Factor, 52mm chainline, crank length: 170mm-15", 175mm-17/21"
Shifter	Shimano XT SL-M8100R 12sp
Bottom bracket	Shimano SM-BB94-41A for BB92
Chain	Shimano CN-M8100 252 g
Average weight (g) 252 Chromizing treatment roller link pin Model CN-M8100 Pin link plate Gray Roller link plate Chromizing Type HG 12-speed
Cassette	Shimano Deore XT CS-M8100-12 HYPERGLIDE+
Aluminum gear finish Anodized Aluminum gear pieces 2 Aluminum spider arm finish Painted Aluminum spider arm pieces 1 Combination names 10-45T 10-51T Compatible chain HG 12-speed Lock ring finish Anodized Lock ring material Aluminum Model CS-M8100-12 Steel gear finish Plated Steel gear pieces 10 Type HYPERGLIDE+ Weights 10-45T: 461g 10-51T: 470g
Rear derailleur	Shimano XTR RD-M9100-SGS 240 g SGS 12s
Average weight (g) 240 B axle finish Anodized B axle hollow B axle material Aluminum Bracket body finish Anodized Bracket body material Aluminum Compatible chain HG 12-speed Lower pulley max 51T Lower pulley min 51T Model RD-M9100-SGS P axle material Steel pulley.guide_pulley_bearing Sealed bearing pulley.screws_material Stainless steel pulley.sunken_type_pulley_screw Pulley teeth 13T pulley.tension_pulley_bearing Sealed bearing Pulley cage SGS Speeds 12 Upper pulley max 10T Upper pulley min 10T Total capacity 41T

Frameset
Frame	Methanol CV FS 100mm 29" full carbon HM monocoque w/Bianchi CV, 1.5" tapered HT, BB92, only 1x drivetrain, PM 160mm carbon dropout, 12x148mm BOOST, internal cable routing, seatpost diam. 31,6mm, shock lenght/travel 190/40mm w/eyelets 20mm x diam.8mm, sizes 15-17-19-21"
Front suspension	RockShox SID SL Select DebonAir 1468 g
Color Diffusion Black, Gloss Black Damper type Charger RL fork offset 44mm (29") Max tire width (mm) 60 Maximum rotor size 200mm Minimum rotor size 160mm Model FS-SIDS-SEL-C1 Name SID SL Select Spring DebonAir Travel (mm) 100mm Upper tube type 32mm straight wall aluminum Weight based on 100mm travel W/Maxle Stealth Weight 1468 Wheel size 29"
Rear suspension	RockShox SIDluxe Select+ 236 g
Body eyelet No Bushing, No Bushing - 90 Deg Rotation, Standard Compression tune H, L, L1, LC, M Damper type RL, RLR Eye to eye stroke 145x27.5(TR), 145x30(TR), 145x32.5(TR), 145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x27.5, 170x30, 170x32.5, 170x35, 185x47.5(TR), 185x50(TR), 190x37.5, 190x40, 190x42.5, 190x45, 210x47.5, 210x50 Lockout force 380, 430 Model RS-SIDL-SELP-A1 Name SIDLuxe Select+ Rebound tune H, L, M Shaft eyelet No Bushing, Standard, Trunnion Weight based on RL 190x45 0 Tokens Weight 236
