Bianchi Methanol CV S 9.1 – GX Eagle 2021

MTB Cross Country
Groupset
SRAM GX Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Hardtail
Front travel
100mm

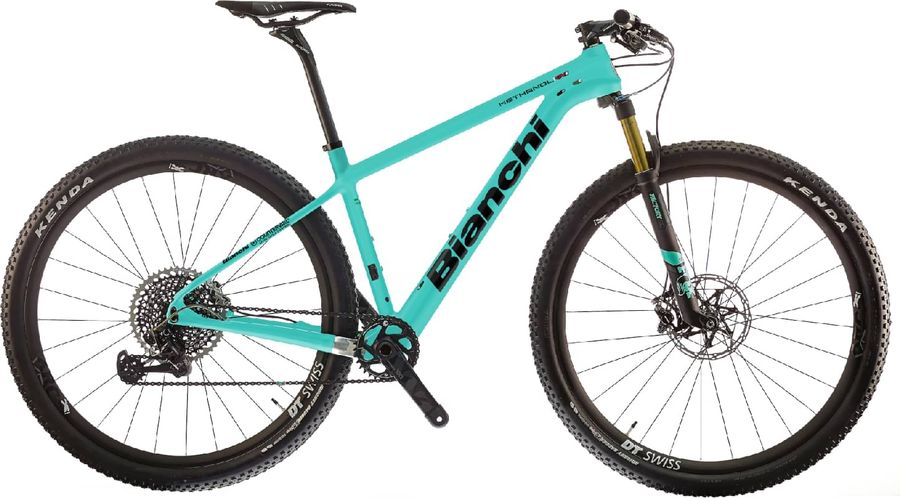

Bianchi Methanol CV S 9.1 – GX Eagle 2021

About the Bianchi Methanol CV S 9.1 – GX Eagle 2021

The Bianchi Methanol CV S 9.1 – GX Eagle 2021 is a Hardtail Cross Country Mountain Bike with a carbon frame. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include internal routing, boost 148, and e-thru axle.

Features

The Bianchi Methanol CV S 9.1 – GX Eagle 2021 has 5 features listed below.
cabeamento-interno
Internal routing More info
cubo-traseiro-boost
Boost 148 More info
eixo-e-thru
E-THRU AXLE More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info

Specifications

Acessories
Grip
T-One T-GP43X
Components
Steam
Tec Cursus 3D forged AL7050-T6, +/-7º, 1.1/8", 31.8mm, ext: 70mm-15'', 90mm-17/19", 100mm-21"
Saddle
Selle Royal Seta S1, manganese rail, 277x144mm
Headset
Fsa Orbit C-40
Seatpost
TEC Obvius, AL6061 shaft with forged head, Ø27.2mm, 0mm seatback, length 350mm for 15'' and 400mm for 17,19,21"
Handlebar
Tec Cursus flat, double butted AL2014-T6, width 720mm, diam. 31,8mm, backsweep 9°
Discs
Shimano SM-RT54 CL 180mm & 160mm, Center Lock
Brakes
Shimano Deore BR-M6100 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH90-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series Color
Secondary color
Black (SHIMANO logo) ***
Hose joint
Straight
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M6100
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
G04S Metal
Pad standard
G03S Resin
Pad standard
J03A Resin
Piston
2
Piston material
Resin
Recommended disc brake rotor
SM-RT54*
SM-RT56*
SM-RT64
SM-RT66
Drivetrain
Crankset
SRAM GX Eagle DUB 32T, 52mm chainline BOOST compatible, crank length: 170mm-15", 175mm-17/21"
Shifter
SRAM GX Eagle 1x12sp
Bottom bracket
SRAM DUB PressFit BB92, 41x92mm
Chain
SRAM GX Eagle 244 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Black Oxide
Model
CN-EAGL-GX-A1
Name
GX Eagle Chain
Outer link finish
Nickel
Pin variant
Solid Pin
Weight based on
114 links
Weight
244
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
Methanol CV S 29" carbon HM monocoque w/Bianchi CV, 1.5" tapered HT, Pressfit BB92 (41x92mm), HDM FD, bottom pull, 27.2mm seatpost, PM 160mm carbon dropout 12x148mm BOOST Shimano thru axle, internal cable routing Di2 compatible, sizes 15,17,19,21"
Front suspension
RockShox SID Select+ DebonAir 1703 g
Color
Diffusion Black, Diffusion Black W/Dark Polar Grey Foil Decal, Gloss Black, Gloss Black W/Dark Polar Grey Foil Decal
Damper type
Charger 2 RL
fork offset
44mm (29")
Max tire width (mm)
66
Maximum rotor size
220mm
Minimum rotor size
180mm
Model
FS-SID-SELP-C1
Name
SID Select+
Spring
DebonAir
Travel (mm)
100mm, 110mm, 120mm
Upper tube type
35mm tapered wall aluminum
Weight based on
120mm travel W/Maxle Stealth
Weight
1703
Wheel size
29"
Wheels
Rims
Wtb KOM light i25 29"
Tires
Kenda Booster Pro 29x2.20
Rear hub
Formula CL-1481
Front hub
Formula CL-811
