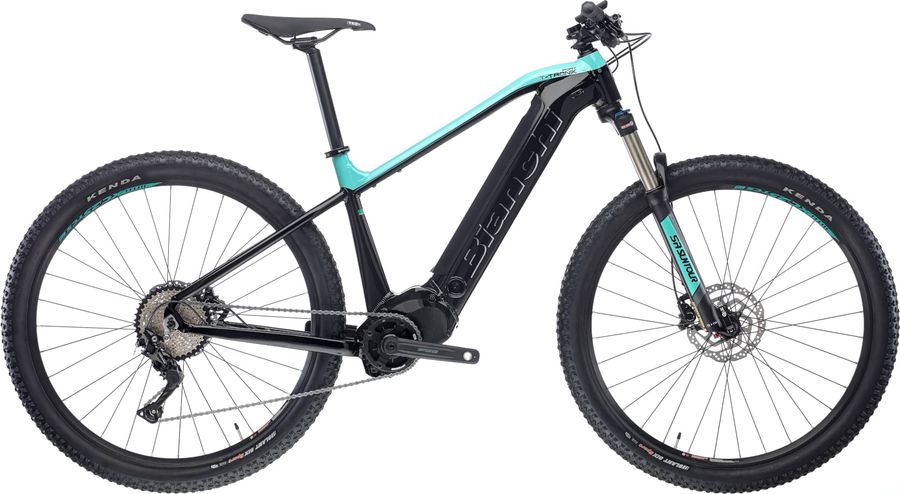

Bianchi T-Tronik Sport 9.1 – SX Eagle 2021

E-Bike

MTB Trail

Groupset

SRAM SX Eagle

Frame material

Alloy

Wheel size

29"

Suspension type

Hardtail

Front travel

120mm

About the Bianchi T-Tronik Sport 9.1 – SX Eagle 2021

The Bianchi T-Tronik Sport 9.1 – SX Eagle 2021 is a Hardtail Trail Mountain Bike with a alloy frame. Equipped with a SRAM SX Eagle drivetrain of 12 gears (1x12). Its features include internal routing, hydraulic disc brakes, and tapered head tube.

Features

The Bianchi T-Tronik Sport 9.1 – SX Eagle 2021 has 4 features listed below.

Internal routing More info

Hydraulic disc brakes More info

Tapered head tube More info

Tubeless ready More info

Specifications

Acessories
Grip	T-One Rock T-GP34

Components
Steam	Tec Obvius 3D forged alloy 6061, +/-7°, 1.1/8", 31.8mm, ext: 60mm-15/19", 70mm-21
Saddle	Tec Rector, Steel rails
Battery	Shimano E7000 Motor Unit, DU-E7000 drive unit, w/SC-E7000 cycle computer, w/speed sensor, w/Phylion 504Wh battery
Headset	Fsa Orbit 1.5 ZS
Seatpost	Tec AL2014 shaft and alloy head, diam 31.6mm, 0mm setback, length: 350mm-15/17'', 400mm-19/21''
Handlebar	Tec rise, DB Alloy 6061-T6, width 740mm, diam. 31,8mm, 9° backsweep, 15mm rise
Discs	SRAM Centerline, diam. 180mm
Brakes	SRAM Level Hydraulic 430 g
Application MTB Blade material Aluminum - Stamped Bracket disk brake Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P Brake type Hydraulic Color Black Model DB-LVL-A1 Name Level Orientation L/F, L/R, R/F, R/R Pad type disc Steel-backed organic Weight based on Direct Mount, 800mm hose, 160mm G2 Rotor (TARGET) Weight 430

Drivetrain
Crankset	Fsa Alu, crank length:165 mm, w/Fsa e-bike specific 34T chainring
Motor	Shimano E7000 Motor Unit, DU-E7000 drive unit, w/SC-E7000 cycle computer, w/speed sensor, w/Phylion 504Wh battery
Shifter	SRAM SX Eagle 1x12sp trigger
Bottom bracket	Included w/motor unit
Chain	SRAM SX Eagle
Rear derailleur	SRAM SX Eagle 12s
Cable pull ratio X-actuation Cage Long Cage material Steel Color Black Max tooth 50 Model RD-SX-1-A1 Name SX Eagle Rear Derailleur Pulley bearings material Steel Speed 12s
Cassette	SRAM SX PG1210

Frameset
Frame	T-Tronik Sport HT, alu 6061 triple butted, 1.5" tapered HT, seatpost diam. 31.6mm, seatpost clamp diam. 34.9mm, PM 160mm, Boost dropout QR 12x141mm, internal cable routing, sizes 38-43-48-53cm
Front suspension	SR Suntour XCR 34 AIR
