BikeWise

BMC Agonist 02 ONE 2020

MTB Cross Country
Groupset
SRAM GX Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Weight
12,57 kg
Front travel
120mm
Rear travel
110mm

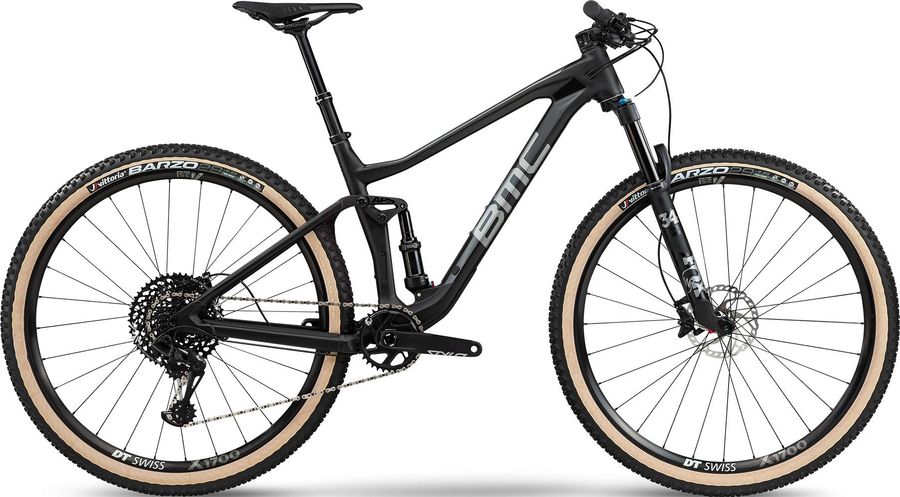

BMC Agonist 02 ONE 2020

About the BMC Agonist 02 ONE 2020

The BMC Agonist 02 ONE 2020 is a Full suspension Cross Country Mountain Bike with a carbon frame. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 148, and e-thru axle. The bike weighs approximately 12,57 kg.

Features

The BMC Agonist 02 ONE 2020 has 5 features listed below.
canote-retratil
Dropper seatpost More info
cubo-traseiro-boost
Boost 148 More info
eixo-e-thru
E-THRU AXLE More info
freio-hidraulico
Hydraulic disc brakes More info
trava-remota-guidao
Remote lockout More info

Specifications

Components
Steam
BMC MSM 01
Saddle
Fizik Antares R7
Seatpost
X-Fusion Manic
Handlebar
BMC MFB 02, 750mm
Brakes
Shimano SLX BR-M7100 425 (BL-M7100) g Hydraulic disc brake 2 piston
Average weight (g)
425 (BL-M7100)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SBM
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M7100
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
J03A Resin (w/ fin)
Pad option
J04C Metal (w/ fin)
Pad standard
G03S Resin (w/o fin)
Pad standard
G04S Metal (w/o fin)
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Drivetrain
Crankset
SRAM Stylo 7k Eagle, 34T
Shifter
SRAM GX Eagle
Chain
SRAM GX Eagle 244 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Black Oxide
Model
CN-EAGL-GX-A1
Name
GX Eagle Chain
Outer link finish
Nickel
Pin variant
Solid Pin
Weight based on
114 links
Weight
244
Cassette
SRAM XG-1275 GX Eagle
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
Agonist 02 - Advanced Pivot System, PF92 Bottom Bracket, 12 x 148mm Thru-axle, 110 mm Rear Travel
Rear suspension
Fox Float DPS Performance Elite EVOL
Front suspension
Fox 34 Float Performance SC
Wheels
Rims
DT Swiss X 1700 Spline 25 **
Tires
Vittoria Barzo G2,0 tubeless 2.25
Rear hub
DT Swiss X 1700 Spline
Front hub
DT Swiss X 1700 Spline

Geometry

Size SM MD LG XL
a
Seat tube length
420,0
440,0
480,0
510,0
b
Seat tube angle
73,75º
73,75º
73,75º
73,75º
c
Top tube length
589,0
614,0
637,0
656,0
d
Head tube length
95,0
105,0
115,0
130,0
e
Head tube angle
69,5º
69,5º
69,5º
69,5º
f
Rake
51,0
51,0
51,0
51,0
g
Trail
85,0
85,0
85,0
85,0
h
Wheelbase
1122,0
1148,0
1172,0
1193,0
i
Chainstay length
448,0
448,0
448,0
448,0
j
Bottom bracket drop
40,0
40,0
40,0
40,0
k
Stack height
598,0
608,0
618,0
633,0
l
Reach
415,0
438,0
458,0
473,0
m
Standover height
-
-
-
-
x
Bottom bracket height
334,0
334,0
334,0
334,0
y
Front center
674,0
701,0
724,0
745,0
