BMC Agonist 02 TWO 2018

MTB Cross Country
Groupset
Shimano Deore XT
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension

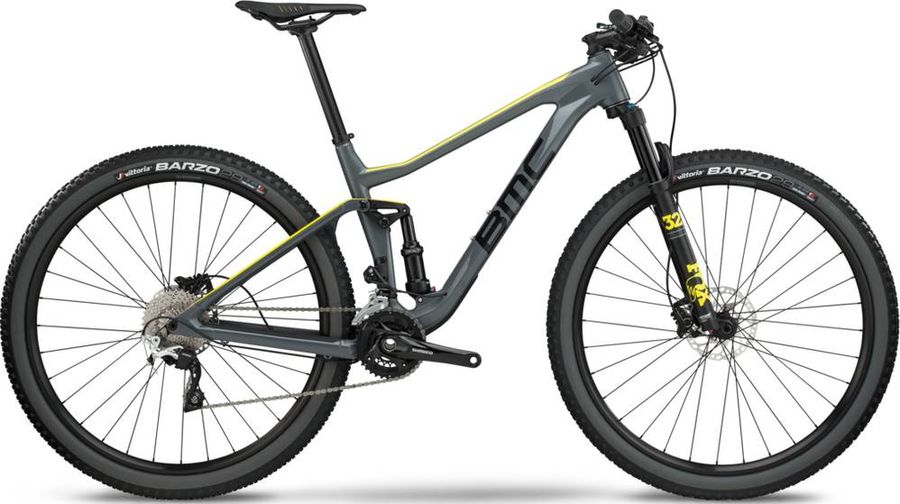

BMC Agonist 02 TWO 2018

About the BMC Agonist 02 TWO 2018

The BMC Agonist 02 TWO 2018 is a Full suspension Cross Country Mountain Bike with a carbon frame. Equipped with a Shimano Deore XT drivetrain of 20 gears (2x10).

Specifications

Components
Steam
BMC MSM 03
Saddle
Fizik Antares R7
Brakes
Shimano Deore BR-M6000 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH90-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series Black
Secondary color
Series Silver *
color.3
Black (SHIMANO logo) ***
Hose joint
Straight
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M6000
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
G04S Metal **
Pad standard
G02S Resin,
G03S Resin
Pad standard
J02A Resin **
J03A Resin **
Pad mount
Split pin (stainless steel)
Piston
2
Piston material
Resin
Recommended brake lever
BL-M6100
BL-MT501
BL-T6000
Recommended disc brake rotor
SM-RT54****
SM-RT56****
SM-RT64
SM-RT66
Seatpost
BMC MSP 03
Brake lever
Shimano Deore BL-M6000
Handlebar
BMC MFB 03
Drivetrain
Crankset
Shimano FC-M627 10s
Chain line (mm)
51.8
Chainring combination
36-22T
Primary color
Black
Compatible bottom bracket type (outboard)
Compatible chain
HG-X 10-speed
Crank arm finish
Painted
Crank arm material
Aluminum
crank_arm_length_mm.170
crank_arm_length_mm.175
Crank axle finish
Plated
Crank axle material
Steel
Model
FC-M627-B
Pitch circle diameter
104/64
Q factor (mm)
176
Speeds
10
Recommended bottom bracket (press fit)
BB-MT500-PA
Recommended bottom bracket (threaded normal)
SM-BB52
Recommended bottom bracket (threaded normal)
SM-BB52
Spider arm finish
Painted
Spider arm material
Aluminum
Spider gear arms
4
Shifter
Shimano Deore SL-M6000 RAPIDFIRE PLUS
Base cover material
GFRP
Clamp bolt material
Stainless steel
Primary color
Series black
Compatible rear derailleur type
MTB 10-speed
Main lever body material
GFRP & Steel
Max multiple shifts main lever rear
3
Model
SL-M6000-R
Mount type
Clamp band
Optical gear display
With
Speeds
10
Release function
2-WAY RELEASE
release_lever_body.material
GFRP & Steel
Shifter type
RAPIDFIRE PLUS
Shifting lever bracket finish
Painted
Shifting lever bracket material
Aluminum
Shifting lever cable finish
OPTISLICK
Shifting lever cable material
Stainless steel
Shifting lever cable adjust
Chain
Shimano CN-HG54 273 g
Average weight (g)
273
Chromizing treatment roller link pin
Model
CN-HG54
Pin link plate
Gray
Roller link plate
Brown
Type
HG-X 10-speed
Rear derailleur
Shimano Deore XT RD-M8000-GS 271 g GS 11s
Average weight (g)
271
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Aluminum
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 11-speed
Lower pulley max
42T(2x11-speed),
46T(1x11-speed)
Lower pulley min
40T
Model
RD-M8000-GS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
GS
Speeds
11
Upper pulley max
11T
Upper pulley min
11T
Total capacity
39T
Cassette
Shimano Deore CS-HG50-10 HG
Combination names
11-36T
Compatible chain
HG-X 10-speed
Lock ring finish
Cr plated
Lock ring material
Steel
Model
CS-HG50-10
Steel gear finish
Ni plated
Steel gear pieces
10
Type
HG
Front derailleur
Shimano Deore FD-M6000
Action side swing
applicable_top_mid_tooth_difference
10T
Cable route type front pull
Chain guide finish
Plated
Chain guide material
Steel
Primary color
Series Black
Compatible chain
HG-X 10speed
Inner link finish
Painted
Inner link material
Aluminum
Link bushings
4
Model
FD-M6000-D
Outer link material
GFRP + Steel
Rear clamp band base bracket finish
Painted
Rear clamp band base bracket material
Aluminum
Stroke adjusting screw finish
Black
Stroke adjusting screw material
Steel
Total capacity
18T
Frameset
Front suspension
Fox 32 Performance
Rear suspension
Fox Float DPS Performance
Frame
BMC 02 Carbon
Wheels
Rims
Alexrims MD25
Rear hub
Shimano Deore FH-M6000
Axle material
Steel
Axle fixing method
Quick release
Bearing cone
CBN
Brake type
Center lock disc brake
Hub shell color
Series Black
Quick release color
Series Black
Without external serration disc rotor lock ring
Flange diameter (mm)
53.8
Flange distance (mm)
57.4
Freehub body material
Steel
Hub shell finish
Anodized
Hub shell material
Aluminum
Without external serration disc rotor lock ring
Model
FH-M6000
Offset (mm)
6.6
Over locknut dimension (mm)
135
PCD left right (mm)
45
Quick release housing finish
Painted
Quick release housing material
Aluminum
Quick release lever finish
Painted
Quick release lever material
Aluminum
Quick release nut material
Resin & Steel
Seal freehub body
Contact
Seal
Labyrinth & Contact
Spoke hole
32H
36H
Front hub
Shimano Deore FH-M6000
Tires
Vittoria BARZO

Geometry

Size S M L XL
a
Seat tube length
420,0
440,0
480,0
510,0
b
Seat tube angle
73,75º
73,75º
73,75º
73,75º
c
Top tube length
586,0
611,0
634,0
653,0
d
Head tube length
95,0
105,0
115,0
130,0
e
Head tube angle
69,5º
69,5º
69,5º
69,5º
f
Rake
-
-
-
-
g
Trail
-
-
-
-
h
Wheelbase
1119,0
1145,0
1169,0
1190,0
i
Chainstay length
445,0
445,0
445,0
445,0
j
Bottom bracket drop
40,0
40,0
40,0
40,0
k
Stack height
595,0
605,0
615,0
630,0
l
Reach
412,0
435,0
455,0
470,0
m
Standover height
709,0
730,0
748,0
769,0
x
Bottom bracket height
-
-
-
-
y
Front center
-
-
-
-
