BMC fourstroke 01 2017

MTB Cross Country
Groupset
Shimano XTR Di2
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Front travel
100mm
Rear travel
100mm
BMC fourstroke 01 2017

About the BMC fourstroke 01 2017

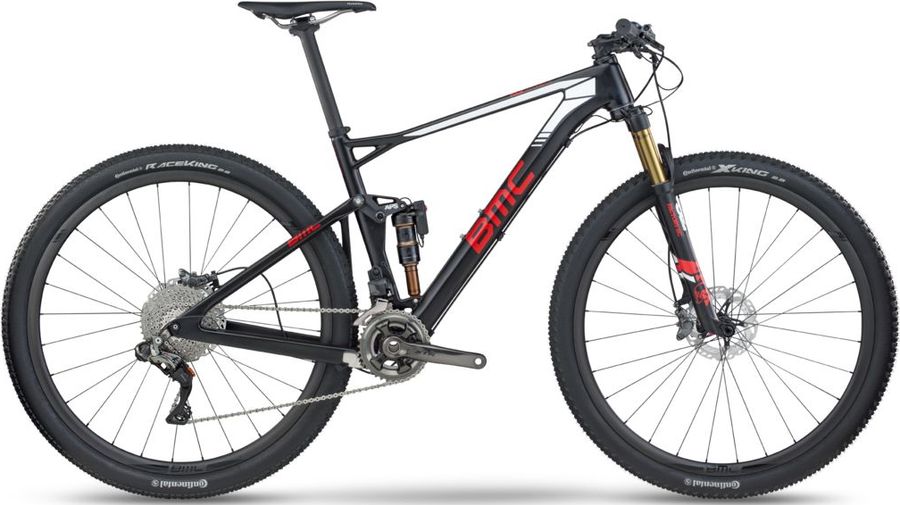

The BMC fourstroke 01 2017 is a Full suspension Cross Country Mountain Bike with a carbon frame. Equipped with a Shimano XTR Di2 drivetrain of 22 gears (2x11). Its features include hydraulic disc brakes.

Features

The BMC fourstroke 01 2017 has 1 features listed below.
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Components
Steam
BMC MSM 02
Saddle
Fizik Tundra M3 carbon
Seatpost
BMC MSP 01 Carbon
Handlebar
BMC MFB01 Carbon 720mm
Brakes
Shimano XTR BR-M9000 316.1 g Hydraulic disc brake 2 piston
Average weight (g)
316.1
Brake hose color kit
Black
Brake hose kit
SM-BH90-SBM
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Magnesium
Caliper fixing bolt anti loosen method
Wiring
Caliper fixing bolt material
Ti
Caliper fixing bolt tool size
** 4 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M9000
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
J02A Resin
J03A Resin
Pad option
J04C Metal
Pad standard
G02A Resin
G03A Resin
Pad standard
G04Ti Metal
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Recommended disc brake rotor
SM-RT99
* SM-RT99-A
Drivetrain
Crankset
Shimano XTR Trail, 36-26T
Shifter
Shimano XTR Di2, Synchroshift (Right only)
Front derailleur
Shimano XTR Di2
Rear derailleur
Shimano XTR RD-M9050 Di2
Chain
Shimano CN-M9100 242 g
Average weight (g)
242
Chromizing treatment roller link pin
Model
CN-M9100
Pin link plate
SIL-TEC
Roller
SIL-TEC
Roller link plate
Chromizing
Type
HG 12-speed
Cassette
Shimano XTR CS-M9001 11s HG
Aluminum gear pieces
6
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
2
Carbon spider arm pieces
2
Combination names
11-40T
Combination
11-13-15-17-19*-21*-24*-27*-31*-35*-40**
Compatible chain
HG-X11
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M9001
Speeds
11
Steel gear finish
Shot-Ni
Steel gear pieces
4
Titanium gear finish
Shot
Titanium gear pieces
1
Type
HG
Frameset
Frame
01 Premium Carbon (F&R), DTi
Front suspension
Fox 32 SC Float Factory Kashima
Rear suspension
Fox Float DPS Factory Kashima
Wheels
Rims
BMC MWX01 Carbon
Tires
Continental: X-King (F) / RaceKing (R), Performance Silver, 2.2
Rear hub
BMC MWX01 by DT Swiss, Centerlock
Front hub
BMC MWX01 by DT Swiss, Centerlock

Geometry

Size SM MD LG
a
Seat tube length
420,0
460,0
510,0
b
Seat tube angle
73,5º
73,5º
73,5º
c
Top tube length
588,0
613,0
638,0
d
Head tube length
90,0
100,0
110,0
e
Head tube angle
70,0º
70,0º
70,0º
f
Rake
51,0
51,0
51,0
g
Trail
80,0
80,0
80,0
h
Wheelbase
1104,0
1129,0
1154,0
i
Chainstay length
448,0
448,0
448,0
j
Bottom bracket drop
40,0
40,0
40,0
k
Stack height
588,0
598,0
608,0
l
Reach
415,0
437,0
459,0
m
Standover height
762,0
794,0
823,0
x
Bottom bracket height
334,0
334,0
334,0
y
Front center
659,0
684,0
709,0
