BMC Fourstroke 01 ONE 2018

MTB Cross Country
Groupset
SRAM XX1 Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
BMC Fourstroke 01 ONE 2018

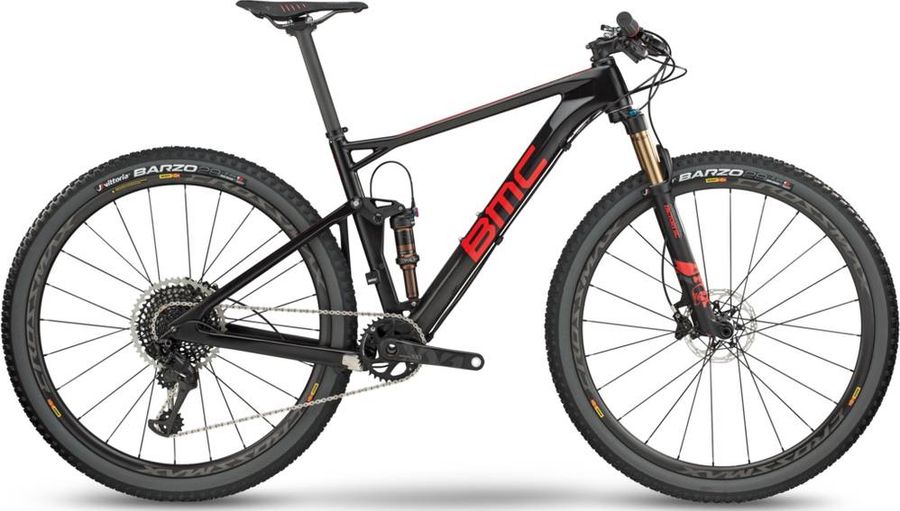

About the BMC Fourstroke 01 ONE 2018

The BMC Fourstroke 01 ONE 2018 is a Full suspension Cross Country Mountain Bike with a carbon frame. Equipped with a SRAM XX1 Eagle drivetrain of 12 gears (1x12).

Specifications

Components
Steam
BMC MSM 02
Brakes
SRAM Level Ultimate Hydraulic 317 g
Application
MTB
Blade material
Carbon
Bracket disk brake
Direct mount DIR, Flat Mount 20mm offset, Flat Mount no offset, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Black Anodized, Gold
Model
DB-LVL-ULT-A1
Name
Level Ultimate
Orientation
Front, Rear
Pad type disc
Aluminum-backed organic, Steel-backed metal sintered
Weight based on
Direct Mount (Ti Bolts), 800mm hose, 160mm CLX Rotor (Ti Bolts)
Weight
317
Saddle
Fizik Antares R5
Handlebar
BMC MFB 01 Carbon
Seatpost
BMC MSP 01 Carbon
Brake lever
SRAM Level Ultimate
Drivetrain
Cassette
SRAM XG-1295 X01 Eagle
Crankset
SRAM XX1 Eagle 11/12s
BB compatibility
BB30/PF30-68/73mm
BB30A
GXP 100mm/PF GXP 121mm
GXP/PF GXP 68/73mm
BB spindle interface
24mm, 30mm
Bolt circle diameter bcd
Direct Mount (DM)
Chain line
49.0mm, 52.0mm, 66.5mm, 76.5mm
Chainring material
Aluminum
Chainring size
30T, 32T, 34T, 36T, 38T
Crank arm length
165mm, 170mm, 175mm
Model
FC-XX-1-B1
Name
XX1 Eagle™ Crankset
Speeds
11/12
Chain
SRAM X01 Eagle 239 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Silver
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Chrome Plated
Model
CN-EAGL-X01-A1
Name
X01 Eagle Chain
Outer link finish
Nickel
Pin variant
Hollow Pin
Weight based on
114 links
Weight
239
Shifter
SRAM XX1 EAGLE 12s 122 g
Cable length
2200mm
Cable pull ratio
X-actuation
Color
Black, Gold
Compatible derailleur hub
RD:12s
Matchmaker compatible
Yes
Model
SL-XX-1-B1
Name
XX1 Eagle Trigger Shifter
Shifter type
Trigger
Speeds
12
Weight
122
Rear derailleur
SRAM XX1 Eagle 12s
Cable pull ratio
X-actuation
Color
Black, Lunar
Max tooth
52
Model
RD-XX-1-B2
Name
XX1 Eagle Rear Derailleur
Speed
12s
Frameset
Front suspension
Fox 32 Factory
Frame
BMC 01 Carbon DTi
Rear suspension
Fox Float DPS Factory
Wheels
Rims
Mavic Crossmax Pro Carbon
Front hub
Mavic Crossmax Pro Carbon
Rear hub
Mavic Crossmax Pro Carbon
Tires
Vittoria BARZO

Geometry

Size S M L
a
Seat tube length
420,0
460,0
510,0
b
Seat tube angle
73,5º
73,5º
73,5º
c
Top tube length
585,0
610,0
635,0
d
Head tube length
90,0
100,0
110,0
e
Head tube angle
70,0º
70,0º
70,0º
f
Rake
-
-
-
g
Trail
-
-
-
h
Wheelbase
1101,0
1126,0
1151,0
i
Chainstay length
445,0
445,0
445,0
j
Bottom bracket drop
40,0
40,0
40,0
k
Stack height
585,0
595,0
605,0
l
Reach
412,0
434,0
456,0
m
Standover height
759,0
791,0
820,0
x
Bottom bracket height
-
-
-
y
Front center
-
-
-
