BMC FOURSTROKE 01 ONE 2019

MTB Cross Country
Groupset
SRAM XX1 Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Front travel
100mm
Rear travel
100mm

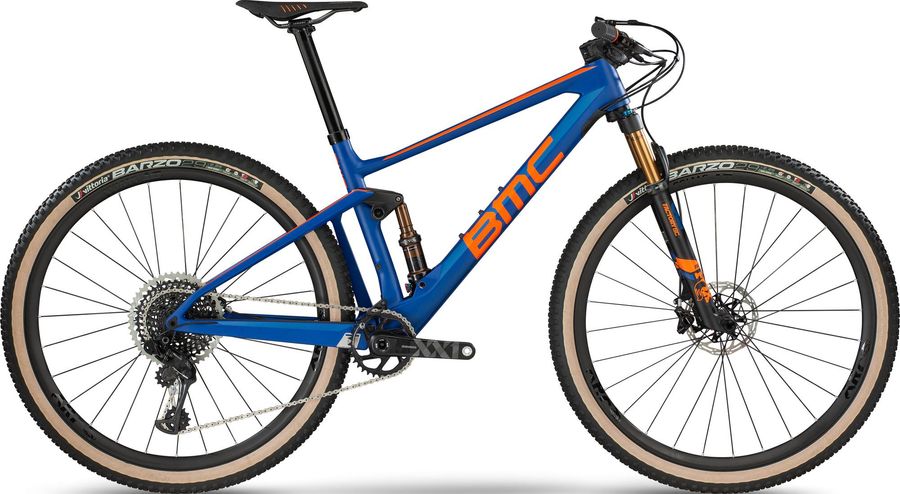

BMC FOURSTROKE 01 ONE 2019

About the BMC FOURSTROKE 01 ONE 2019

The BMC FOURSTROKE 01 ONE 2019 is a Full suspension Cross Country Mountain Bike with a carbon frame. Equipped with a SRAM XX1 Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and hydraulic disc brakes.

Features

The BMC FOURSTROKE 01 ONE 2019 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info
trava-remota-guidao
Remote lockout More info

Specifications

Components
Steam
BMC MSM 01
Saddle
Fizik Antares R5 K:ium
Seatpost
Race Applicatioin Dropper (R.A.D.) 80mm drop
Handlebar
BMC MFB 01 Carbon, 750mm
Brake lever
SRAM Level Ultimate
Brakes
SRAM Level Ultimate Hydraulic 317 g
Application
MTB
Blade material
Carbon
Bracket disk brake
Direct mount DIR, Flat Mount 20mm offset, Flat Mount no offset, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Black Anodized, Gold
Model
DB-LVL-ULT-A1
Name
Level Ultimate
Orientation
Front, Rear
Pad type disc
Aluminum-backed organic, Steel-backed metal sintered
Weight based on
Direct Mount (Ti Bolts), 800mm hose, 160mm CLX Rotor (Ti Bolts)
Weight
317
Drivetrain
Crankset
SRAM XX1 Eagle 34T
Shifter
SRAM XX1 Eagle
Bottom bracket
PF92
Chain
SRAM X01 Eagle 239 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Silver
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Chrome Plated
Model
CN-EAGL-X01-A1
Name
X01 Eagle Chain
Outer link finish
Nickel
Pin variant
Hollow Pin
Weight based on
114 links
Weight
239
Rear derailleur
SRAM XX1 Eagle 12s
Cable pull ratio
X-actuation
Color
Black, Lunar
Max tooth
52
Model
RD-XX-1-B2
Name
XX1 Eagle Rear Derailleur
Speed
12s
Cassette
SRAM XG-1295 Eagle 12s 350 g
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1295-B1
Name
XG-1295 Eagle Cassette
Speed
12s
Technology cassete
XG
Weight
350
Frameset
Frame
01 Premium Carbon (F&R)
Front suspension
Fox 32 SC Float Factory Kashima
Rear suspension
Fox Float DPS Factory Kashima
Wheels
Rims
DT Swiss XRC 1200 Carbon 25**
Tires
Vittoria Barzo TR, 29x2.25
Spokes
DT Swiss
Rear hub
DT Swiss XRC 1200
Front hub
DT Swiss XRC 1200

Geometry

Size SM MD LG XL
a
Seat tube length
420,0
440,0
480,0
510,0
b
Seat tube angle
75,6º
75,6º
75,6º
75,6º
c
Top tube length
585,0
610,0
633,0
657,0
d
Head tube length
96,0
107,0
117,0
134,0
e
Head tube angle
67,5º
67,5º
67,5º
67,5º
f
Rake
44,0
44,0
44,0
44,0
g
Trail
106,5
106,5
106,5
106,5
h
Wheelbase
1132,0
1158,0
1183,0
1209,0
i
Chainstay length
432,0
432,0
432,0
432,0
j
Bottom bracket drop
44,0
44,0
44,0
44,0
k
Stack height
583,0
593,0
603,0
618,0
l
Reach
426,0
448,0
468,0
488,0
m
Standover height
741,0
750,0
762,0
771,0
x
Bottom bracket height
330,0
330,0
330,0
330,0
y
Front center
700,0
726,0
750,0
777,0
