BMC Speedfox 01 ONE 2019

MTB Cross Country
Groupset
SRAM GX
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension

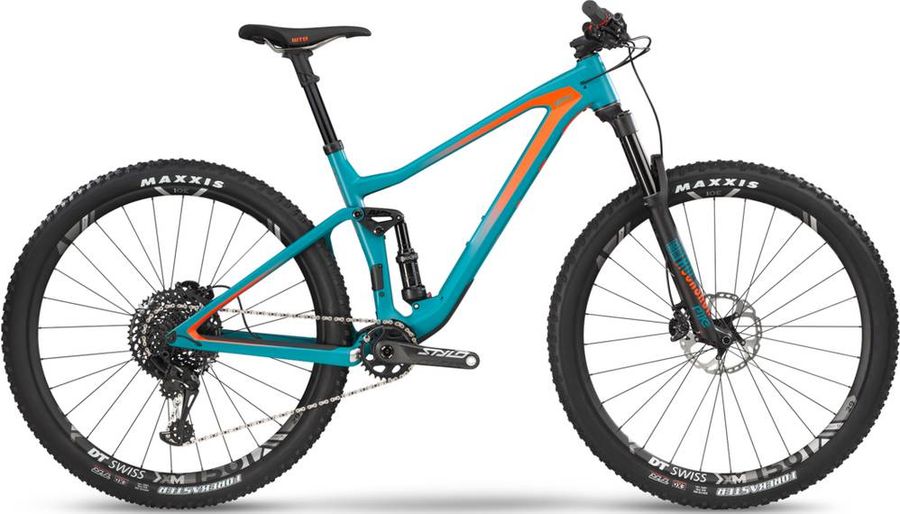

BMC Speedfox 01 ONE 2019

About the BMC Speedfox 01 ONE 2019

The BMC Speedfox 01 ONE 2019 is a Full suspension Cross Country Mountain Bike with a carbon frame. Equipped with a SRAM GX drivetrain of 12 gears (1x12).

Specifications

Components
Brake lever
Shimano Deore XT BL-M8000 104 g Hydraulic disc brake SHIMANO Mineral Oil
Average weight (g)
104
Brake hose color kit
Black
Brake hose kit
SM-BH90-SBM
Brake lever finish
Anodized
Brake lever material
Aluminum
Brake type
Hydraulic disc brake
Primary color
Series color
Funnel bleeding
Lever size finger
2
Master cylinder finish
Painted
Master cylinder material
Aluminum
Model
BL-M8000
Oil
SHIMANO Mineral
Reach adjust (toolless)
Steam
BMC MSM 02
Saddle
WTB Silverado
Seatpost
BMC Trailsync
Drivetrain
Chain
SRAM GX Eagle 244 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Black Oxide
Model
CN-EAGL-GX-A1
Name
GX Eagle Chain
Outer link finish
Nickel
Pin variant
Solid Pin
Weight based on
114 links
Weight
244
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Shifter
SRAM GX Eagle 11s
Cable length
2200mm
Cable pull ratio
X-actuation
Color
Black
Compatible derailleur hub
RD: 11s
Matchmaker compatible
Yes
Model
SL-GX-1PA-A1
Name
GX-e 11-speed Trigger Shifter
Shifter type
Trigger
Speeds
11
Crankset
Truvativ Stylo Carbon 11/12s 555 g
BB compatibility
DUB BSA MTB 100
DUB PF MTB 121
DUB BSA73
DUB PF89.5
DUB PF92
DUB PF30 MTB73
DUB BB30 MTB73
DUB:BSA73
PF89.5
PF92
PF30 MTB73
BB30 MTB73
BSA MTB68SP
BB spindle interface
DUB
Bolt circle diameter bcd
Direct Mount (DM)
Chain line
49.0mm, 52.0mm, 55.0mm, 66.5mm, 76.5mm
Chainring material
Aluminum
Chainring size
30T, 32T, 34T
Crank arm length
170mm, 175mm
Model
FC-STYL-C-B1
Name
STYLO Carbon DUB™ Crankset
Speeds
11/12
Weight based on
DUB 175mm Boost 32t
Weight
555
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Rear suspension
Fox Float DPS Performance
Frame
BMC 01 Carbon
Front suspension
RockShox Pike RC Solo Air 1835 g
Color
Gloss Black
fork offset
51mm
Maximum rotor size
203mm
Minimum rotor size
160mm
Model
FS-PIKE-RC-A2
Name
Pike RC
Spring
Solo Air
Travel (mm)
150mm
Upper tube type
35mm tapered wall aluminum
Weight based on
26", Solo Air, 265mm tapered aluminum steerer, 15X100mm Maxle Ultimate
Weight
1835
Wheel size
29" B/27.5"+
Wheels
Rims
DT Swiss XM 1501 SPLINE® ONE 30
Rear hub
DT Swiss XM 1501 SPLINE® ONE
Front hub
DT Swiss XM 1501 SPLINE® ONE
Tires
Maxxis Forekaster

Geometry

Size S M L XL
a
Seat tube length
420,0
440,0
480,0
510,0
b
Seat tube angle
73,75º
73,75º
73,75º
73,75º
c
Top tube length
587,0
611,0
634,0
653,0
d
Head tube length
95,0
105,0
115,0
135,0
e
Head tube angle
68,0º
68,0º
68,0º
68,0º
f
Rake
-
-
-
-
g
Trail
-
-
-
-
h
Wheelbase
1123,0
1145,0
1169,0
1189,0
i
Chainstay length
445,0
445,0
445,0
445,0
j
Bottom bracket drop
37,0
37,0
37,0
37,0
k
Stack height
600,0
610,0
620,0
635,0
l
Reach
408,0
430,0
450,0
465,0
m
Standover height
713,0
734,0
752,0
773,0
x
Bottom bracket height
-
-
-
-
y
Front center
-
-
-
-
