BMC Speedfox 02 ONE 2018

MTB Cross Country
Groupset
SRAM X01 Eagle
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension

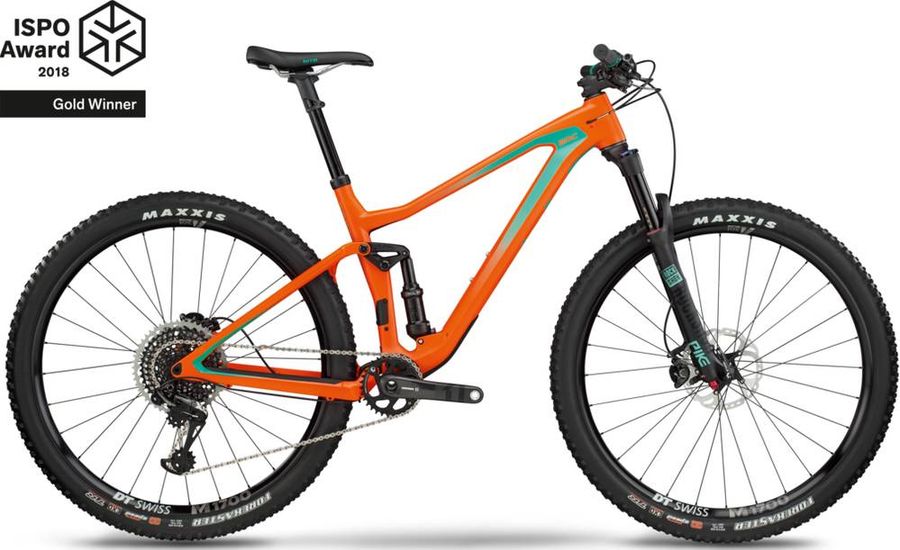

BMC Speedfox 02 ONE 2018

About the BMC Speedfox 02 ONE 2018

The BMC Speedfox 02 ONE 2018 is a Full suspension Cross Country Mountain Bike with a carbon frame. Equipped with a SRAM X01 Eagle drivetrain of 12 gears (1x12).

Specifications

Components
Brake lever
Shimano Deore XT BL-M8000 104 g Hydraulic disc brake SHIMANO Mineral Oil
Average weight (g)
104
Brake hose color kit
Black
Brake hose kit
SM-BH90-SBM
Brake lever finish
Anodized
Brake lever material
Aluminum
Brake type
Hydraulic disc brake
Primary color
Series color
Funnel bleeding
Lever size finger
2
Master cylinder finish
Painted
Master cylinder material
Aluminum
Model
BL-M8000
Oil
SHIMANO Mineral
Reach adjust (toolless)
Steam
BMC MSM 02
Handlebar
BMC MRB 02
Seatpost
BMC Trailsync
Saddle
WTB Volt
Brakes
Shimano Deore XT BR-M8000 403 (BL-M8000) g Hydraulic disc brake 2 piston
Average weight (g)
403 (BL-M8000)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SB
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
Model
BR-M8000
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
G04S Metal
Pad option
J04C Metal
Pad standard
G02A Resin
G03A Resin
Pad standard
J02A Resin
J03A Resin
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Recommended brake lever
BL-M8000
BL-T8000
Recommended disc brake rotor
RT-MT800
SM-RT86
Drivetrain
Cassette
SRAM XG-1295 X01 Eagle
Crankset
SRAM X1
Chain
SRAM X01 Eagle 239 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Silver
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Chrome Plated
Model
CN-EAGL-X01-A1
Name
X01 Eagle Chain
Outer link finish
Nickel
Pin variant
Hollow Pin
Weight based on
114 links
Weight
239
Shifter
SRAM X01 Eagle
Rear derailleur
SRAM X01 Eagle 12s
Cable pull ratio
X-actuation
Color
Black, Lunar, Red
Max tooth
52
Model
RD-X0-1-B2
Name
X01 Eagle Rear Derailleur
Speed
12s
Frameset
Rear suspension
Fox Float DPS Performance
Frame
BMC 02 Carbon
Front suspension
RockShox Pike RC Solo Air 1835 g
Color
Gloss Black
fork offset
51mm
Maximum rotor size
203mm
Minimum rotor size
160mm
Model
FS-PIKE-RC-A2
Name
Pike RC
Spring
Solo Air
Travel (mm)
150mm
Upper tube type
35mm tapered wall aluminum
Weight based on
26", Solo Air, 265mm tapered aluminum steerer, 15X100mm Maxle Ultimate
Weight
1835
Wheel size
29" B/27.5"+
Wheels
Spokes
DT Swiss Competition
Rims
DT Swiss M 1700 SPLINE® 30
Rear hub
DT Swiss M 1700 SPLINE®
Front hub
DT Swiss M 1700 SPLINE®
Tires
Maxxis Forekaster

Geometry

Size S M M L XL
a
Seat tube length
410,0
430,0
440,0
480,0
510,0
b
Seat tube angle
73,25º
73,25º
73,25º
73,25º
73,25º
c
Top tube length
587,0
613,0
611,0
634,0
653,0
d
Head tube length
110,0
120,0
105,0
115,0
135,0
e
Head tube angle
67,5º
67,5º
68,25º
68,25º
68,25º
f
Rake
-
-
-
-
-
g
Trail
-
-
-
-
-
h
Wheelbase
1111,0
1138,0
1145,0
1169,0
1189,0
i
Chainstay length
430,0
430,0
445,0
445,0
445,0
j
Bottom bracket drop
22,0
22,0
37,0
37,0
37,0
k
Stack height
584,0
595,0
610,0
620,0
635,0
l
Reach
413,0
436,0
430,0
450,0
465,0
m
Standover height
695,0
722,0
734,0
752,0
773,0
x
Bottom bracket height
-
-
-
-
-
y
Front center
-
-
-
-
-
