BikeWise

BMC Speedfox 02 ONE 2019

MTB Cross Country
Groupset
SRAM GX
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
BMC Speedfox 02 ONE 2019

About the BMC Speedfox 02 ONE 2019

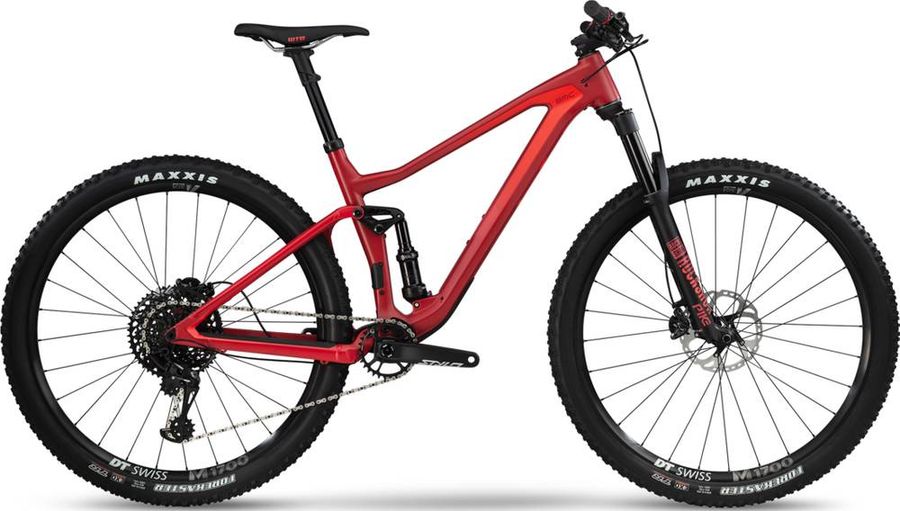

The BMC Speedfox 02 ONE 2019 is a Full suspension Cross Country Mountain Bike with a carbon frame. Equipped with a SRAM GX drivetrain of 12 gears (1x12).

Specifications

Components
Steam
BMC MSM 02
Handlebar
BMC MRB 02
Saddle
WTB Silverado
Seatpost
BMC Trailsync
Brakes
Shimano Deore XT BR-M8000 403 (BL-M8000) g Hydraulic disc brake 2 piston
Average weight (g)
403 (BL-M8000)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SB
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
Model
BR-M8000
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
G04S Metal
Pad option
J04C Metal
Pad standard
G02A Resin
G03A Resin
Pad standard
J02A Resin
J03A Resin
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Recommended brake lever
BL-M8000
BL-T8000
Recommended disc brake rotor
RT-MT800
SM-RT86
Drivetrain
Chain
SRAM GX Eagle 244 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Black Oxide
Model
CN-EAGL-GX-A1
Name
GX Eagle Chain
Outer link finish
Nickel
Pin variant
Solid Pin
Weight based on
114 links
Weight
244
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Crankset
Truvativ Stylo 6K 11/12s
BB compatibility
BB30/PF30-68/73mm
GXP 100mm/PF GXP 121mm
GXP/PF GXP 68/73mm
PowerSpline BB
BB spindle interface
24mm, 30mm, Power Spline
Bolt circle diameter bcd
Direct Mount (DM)
Chain line
49.0mm, 52.0mm, 66.5mm, 76.5mm
Chainring material
Aluminum
Chainring size
30T, 32T, 34T
Crank arm length
165mm, 170mm, 175mm
Model
FC-STYL-6K-A1
Name
STYLO 6K Crankset
Speeds
11/12
Shifter
SRAM GX Eagle 11s
Cable length
2200mm
Cable pull ratio
X-actuation
Color
Black
Compatible derailleur hub
RD: 11s
Matchmaker compatible
Yes
Model
SL-GX-1PA-A1
Name
GX-e 11-speed Trigger Shifter
Shifter type
Trigger
Speeds
11
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Rear suspension
Fox Float DPS Performance
Frame
BMC 02 Carbon
Front suspension
RockShox Pike RC Solo Air 1835 g
Color
Gloss Black
fork offset
51mm
Maximum rotor size
203mm
Minimum rotor size
160mm
Model
FS-PIKE-RC-A2
Name
Pike RC
Spring
Solo Air
Travel (mm)
150mm
Upper tube type
35mm tapered wall aluminum
Weight based on
26", Solo Air, 265mm tapered aluminum steerer, 15X100mm Maxle Ultimate
Weight
1835
Wheel size
29" B/27.5"+
Wheels
Front hub
DT Swiss X 1700 SPLINE®
Rims
DT Swiss M 1700 SPLINE® 25
Rear hub
DT Swiss X 1700 SPLINE®
Tires
Maxxis Forekaster

Geometry

Size M L XL S
a
Seat tube length
440,0
480,0
510,0
420,0
b
Seat tube angle
73,75º
73,75º
73,75º
73,75º
c
Top tube length
611,0
634,0
653,0
587,0
d
Head tube length
105,0
115,0
135,0
95,0
e
Head tube angle
68,0º
68,0º
68,0º
68,0º
f
Rake
-
-
-
-
g
Trail
-
-
-
-
h
Wheelbase
1145,0
1169,0
1189,0
1123,0
i
Chainstay length
445,0
445,0
445,0
445,0
j
Bottom bracket drop
37,0
37,0
37,0
37,0
k
Stack height
610,0
620,0
635,0
600,0
l
Reach
430,0
450,0
465,0
408,0
m
Standover height
734,0
752,0
773,0
713,0
x
Bottom bracket height
-
-
-
-
y
Front center
-
-
-
-
