BMC Speedfox 02 THREE 2018

MTB Cross Country
Groupset
Shimano SLX
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
BMC Speedfox 02 THREE 2018

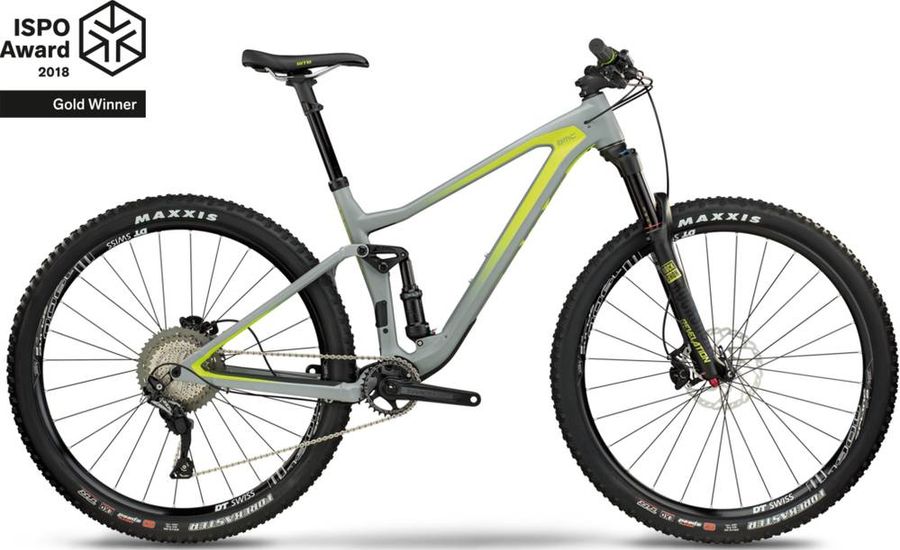

About the BMC Speedfox 02 THREE 2018

The BMC Speedfox 02 THREE 2018 is a Full suspension Cross Country Mountain Bike with a carbon frame. Equipped with a Shimano SLX drivetrain of 11 gears (1x11).

Specifications

Components
Brake lever
Shimano SLX BL-M7000
Steam
BMC MSM 02
Brakes
Shimano SLX BR-M7000
Handlebar
BMC MRB 02
Seatpost
BMC Trailsync
Saddle
WTB Volt
Drivetrain
Shifter
Shimano Deore SL-M6000 RAPIDFIRE PLUS
Base cover material
GFRP
Clamp bolt material
Stainless steel
Primary color
Series black
Compatible rear derailleur type
MTB 10-speed
Main lever body material
GFRP & Steel
Max multiple shifts main lever rear
3
Model
SL-M6000-R
Mount type
Clamp band
Optical gear display
With
Speeds
10
Release function
2-WAY RELEASE
release_lever_body.material
GFRP & Steel
Shifter type
RAPIDFIRE PLUS
Shifting lever bracket finish
Painted
Shifting lever bracket material
Aluminum
Shifting lever cable finish
OPTISLICK
Shifting lever cable material
Stainless steel
Shifting lever cable adjust
Cassette
Shimano SLX CS-M7000-11 HG
Aluminum gear pieces
1 (11-40T)
1 (11-42T)
2 (11-46T)
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
1
Combination names
11-40T
11-42T
11-46T
Compatible chain
HG 11-speed, LG
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M7000-11
Steel gear finish
Shot-Ni
Steel gear pieces
10 (11-40T)
10 (11-42T)
9 (11-46T)
Type
HG
Weights
11-40T: 450g
11-42T: 476g
11-46T: 482g
Rear derailleur
Shimano SLX RD-M7000-10-SGS 313 g SGS 10s
Average weight (g)
313
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 10-speed
Lower pulley max
36T
Lower pulley min
32T
Model
RD-M7000-10-SGS
P axle material
Steel
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
Pulley cage
SGS
Speeds
10
Upper pulley max
11T
Upper pulley min
11T
Total capacity
43T
Chain
KMC X11
Crankset
Race Face Aeffect
Frameset
Front suspension
RockShox Revelation RC DebonAir
Color
Diffusion Black, Gloss Black
Damper type
Motion Control
fork offset
37mm (27.5"), 42mm (29"), 46mm (27.5"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
180mm
Model
FS-RVL-RC-A2
Name
Revelation RC
Spring
DebonAir
Travel (mm)
120mm, 130mm, 140mm, 150mm, 160mm
Upper tube type
35mm tapered wall aluminum
Wheel size
27.5", 29"
Rear suspension
Fox Float DPS Performance
Frame
BMC 02 Carbon
Wheels
Rims
DT Swiss H 1900 SPLINE
Front hub
DT Swiss M 1900 SPLINE®
Tires
Maxxis Forekaster
Rear hub
DT Swiss M 1900 SPLINE®

Geometry

Size S M M L XL
a
Seat tube length
410,0
430,0
440,0
480,0
510,0
b
Seat tube angle
73,25º
73,25º
73,25º
73,25º
73,25º
c
Top tube length
587,0
613,0
611,0
634,0
653,0
d
Head tube length
110,0
120,0
105,0
115,0
135,0
e
Head tube angle
67,5º
67,5º
68,25º
68,25º
68,25º
f
Rake
-
-
-
-
-
g
Trail
-
-
-
-
-
h
Wheelbase
1111,0
1138,0
1145,0
1169,0
1189,0
i
Chainstay length
430,0
430,0
445,0
445,0
445,0
j
Bottom bracket drop
22,0
22,0
37,0
37,0
37,0
k
Stack height
584,0
595,0
610,0
620,0
635,0
l
Reach
413,0
436,0
430,0
450,0
465,0
m
Standover height
695,0
722,0
734,0
752,0
773,0
x
Bottom bracket height
-
-
-
-
-
y
Front center
-
-
-
-
-
