BMC Speedfox 02 TWO 2018

MTB Cross Country
Groupset
Shimano Deore XT
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension

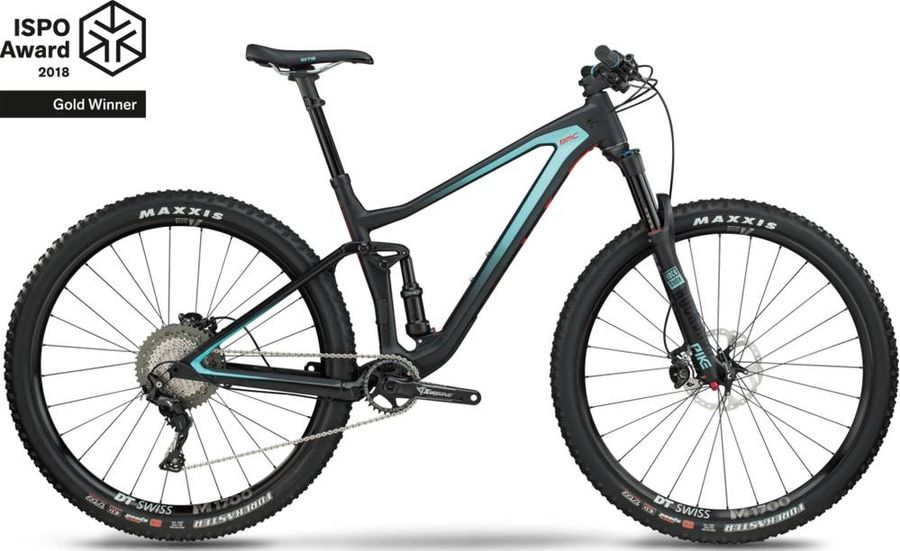

BMC Speedfox 02 TWO 2018

About the BMC Speedfox 02 TWO 2018

The BMC Speedfox 02 TWO 2018 is a Full suspension Cross Country Mountain Bike with a carbon frame. Equipped with a Shimano Deore XT drivetrain of 11 gears (1x11).

Specifications

Components
Brake lever
Shimano Deore XT BL-M8000 104 g Hydraulic disc brake SHIMANO Mineral Oil
Average weight (g)
104
Brake hose color kit
Black
Brake hose kit
SM-BH90-SBM
Brake lever finish
Anodized
Brake lever material
Aluminum
Brake type
Hydraulic disc brake
Primary color
Series color
Funnel bleeding
Lever size finger
2
Master cylinder finish
Painted
Master cylinder material
Aluminum
Model
BL-M8000
Oil
SHIMANO Mineral
Reach adjust (toolless)
Steam
BMC MSM 02
Handlebar
BMC MRB 02
Seatpost
BMC Trailsync
Saddle
WTB Volt
Brakes
Shimano Deore XT BR-M8000 403 (BL-M8000) g Hydraulic disc brake 2 piston
Average weight (g)
403 (BL-M8000)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SB
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
Model
BR-M8000
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
G04S Metal
Pad option
J04C Metal
Pad standard
G02A Resin
G03A Resin
Pad standard
J02A Resin
J03A Resin
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Recommended brake lever
BL-M8000
BL-T8000
Recommended disc brake rotor
RT-MT800
SM-RT86
Drivetrain
Rear derailleur
Shimano Deore XT RD-M8000-GS 271 g GS 11s
Average weight (g)
271
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Aluminum
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 11-speed
Lower pulley max
42T(2x11-speed),
46T(1x11-speed)
Lower pulley min
40T
Model
RD-M8000-GS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
GS
Speeds
11
Upper pulley max
11T
Upper pulley min
11T
Total capacity
39T
Cassette
Shimano Deore XT CS-M8000 HG
Aluminum gear pieces
2
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
2
Combination names
11-40T
11-42T
11-46T
Compatible chain
HG 11-speed, LG
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M8000
Steel gear finish
Shot-Ni
Steel gear pieces
9
Type
HG
Weights
11-40T: 411g
11-42T: 434g
11-46T: 437g
Crankset
Race Face Turbine
Chain
KMC X11
Shifter
Shimano Deore XT SL-M8000 127 ( /pc) g RAPIDFIRE PLUS
Average weight (g)
127 ( /pc)
Base cover finish
Painted
Base cover material
GFRP
Clamp bolt material
Stainless steel
Primary color
Series color
Compatible rear derailleur type
MTB 11-speed
Compatible with I spec
Main lever body finish
Painted
Main lever body material
Aluminum
Max multiple shifts main lever rear
4
Model
SL-M8000-R
Mount type
Clamp band
Optical gear display
With (removable)
Speeds
11
Release function
2-WAY RELEASE
release_lever_body.material
GFRP & Steel
Shifter type
RAPIDFIRE PLUS
Shifting lever bracket finish
Painted
Shifting lever bracket material
Aluminum
Shifting lever cable finish
OPTISLICK
Shifting lever cable material
Stainless steel
Shifting lever cable adjust
Frameset
Rear suspension
Fox Float DPS Performance
Frame
BMC 02 Carbon
Front suspension
RockShox Pike RC Solo Air 1835 g
Color
Gloss Black
fork offset
51mm
Maximum rotor size
203mm
Minimum rotor size
160mm
Model
FS-PIKE-RC-A2
Name
Pike RC
Spring
Solo Air
Travel (mm)
150mm
Upper tube type
35mm tapered wall aluminum
Weight based on
26", Solo Air, 265mm tapered aluminum steerer, 15X100mm Maxle Ultimate
Weight
1835
Wheel size
29" B/27.5"+
Wheels
Rims
DT Swiss M 1700 SPLINE® 30
Rear hub
DT Swiss M 1700 SPLINE®
Front hub
DT Swiss M 1700 SPLINE®
Tires
Maxxis Forekaster

Geometry

Size M M L XL
a
Seat tube length
440,0
430,0
480,0
510,0
b
Seat tube angle
73,25º
73,25º
73,25º
73,25º
c
Top tube length
611,0
613,0
634,0
653,0
d
Head tube length
105,0
120,0
115,0
135,0
e
Head tube angle
68,25º
67,5º
68,25º
68,25º
f
Rake
-
-
-
-
g
Trail
-
-
-
-
h
Wheelbase
1145,0
1138,0
1169,0
1189,0
i
Chainstay length
445,0
430,0
445,0
445,0
j
Bottom bracket drop
37,0
22,0
37,0
37,0
k
Stack height
610,0
595,0
620,0
635,0
l
Reach
430,0
436,0
450,0
465,0
m
Standover height
734,0
722,0
752,0
773,0
x
Bottom bracket height
-
-
-
-
y
Front center
-
-
-
-
