BMC Speedfox 02 TWO 2019

MTB Cross Country
Groupset
SRAM NX
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
BMC Speedfox 02 TWO 2019

About the BMC Speedfox 02 TWO 2019

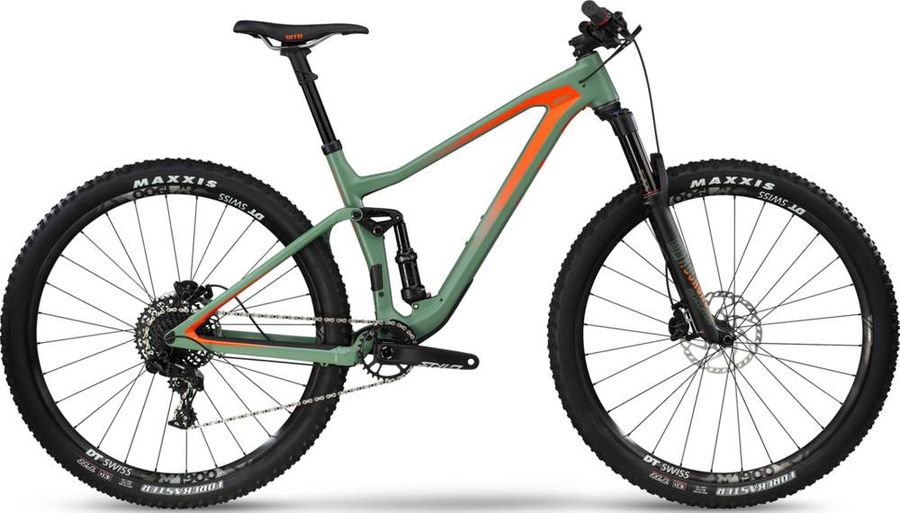

The BMC Speedfox 02 TWO 2019 is a Full suspension Cross Country Mountain Bike with a carbon frame. Equipped with a SRAM NX drivetrain of 12 gears (1x12).

Specifications

Components
Steam
BMC MSM 02
Saddle
WTB Silverado
Seatpost
BMC Trailsync
Handlebar
BMC MRB 03
Brakes
Shimano BR-MT500 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT500
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin (stainless steel)
Piston
2
Piston material
Resin
Recommended disc brake rotor
SM-RT54*
SM-RT56*
Drivetrain
Chain
SRAM NX Eagle 252 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Grey
Color outer link
Grey
Compat speed
12s-Eagle
Inner link finish
Polished
Model
CN-EAGL-NX-A1
Name
NX Eagle Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
252
Crankset
Truvativ Stylo 6K 11/12s
BB compatibility
BB30/PF30-68/73mm
GXP 100mm/PF GXP 121mm
GXP/PF GXP 68/73mm
PowerSpline BB
BB spindle interface
24mm, 30mm, Power Spline
Bolt circle diameter bcd
Direct Mount (DM)
Chain line
49.0mm, 52.0mm, 66.5mm, 76.5mm
Chainring material
Aluminum
Chainring size
30T, 32T, 34T
Crank arm length
165mm, 170mm, 175mm
Model
FC-STYL-6K-A1
Name
STYLO 6K Crankset
Speeds
11/12
Rear derailleur
SRAM NX Eagle 12s 339 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-NX-1-B1
Name
NX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Weight
339
Shifter
SRAM NX Eagle
Cassette
SRAM PG-1130 11s
Cog finish cassete
Black, Silver
Cog sizes
11-26t:11,12,13,14,15,16,17,19,21,23,26
11-28t:11,12,13,14,15,16,17,19,22,25,28
11-32t:11,12,13,14,15,17,19,22,25,28,32
11-36t:11,12,13,15,17,19,22,25,28,32,36
11-42t: 11,13,15,17,19,22,25,28,32,36,42
Gearing
11-26t
11-28t
11-32t
11-36t
11-42t
Model
CS-PG-1130-A1
Name
PG-1130 Cassette
Speed
11s
Technology cassete
PG
Frameset
Rear suspension
Fox Float DPS Performance
Frame
BMC 02 Carbon
Wheels
Rims
DT Swiss M 1900 SPLINE® 30
Front hub
DT Swiss M 1900 SPLINE®
Tires
Maxxis Forekaster
Rear hub
DT Swiss M 1900 SPLINE®

Geometry

Size S M L XL
a
Seat tube length
420,0
440,0
480,0
510,0
b
Seat tube angle
73,75º
73,75º
73,75º
73,75º
c
Top tube length
587,0
611,0
634,0
653,0
d
Head tube length
95,0
105,0
115,0
135,0
e
Head tube angle
68,0º
68,0º
68,0º
68,0º
f
Rake
-
-
-
-
g
Trail
-
-
-
-
h
Wheelbase
1123,0
1145,0
1169,0
1189,0
i
Chainstay length
445,0
445,0
445,0
445,0
j
Bottom bracket drop
37,0
37,0
37,0
37,0
k
Stack height
600,0
610,0
620,0
635,0
l
Reach
408,0
430,0
450,0
465,0
m
Standover height
713,0
734,0
752,0
773,0
x
Bottom bracket height
-
-
-
-
y
Front center
-
-
-
-
