BMC Speedfox 02 TWO 2020

MTB Trail
Groupset
SRAM NX Eagle
Frame material
Alloy
Wheel size
29"
Suspension type
Full suspension
Weight
13,3 kg
Front travel
130mm
Rear travel
120mm

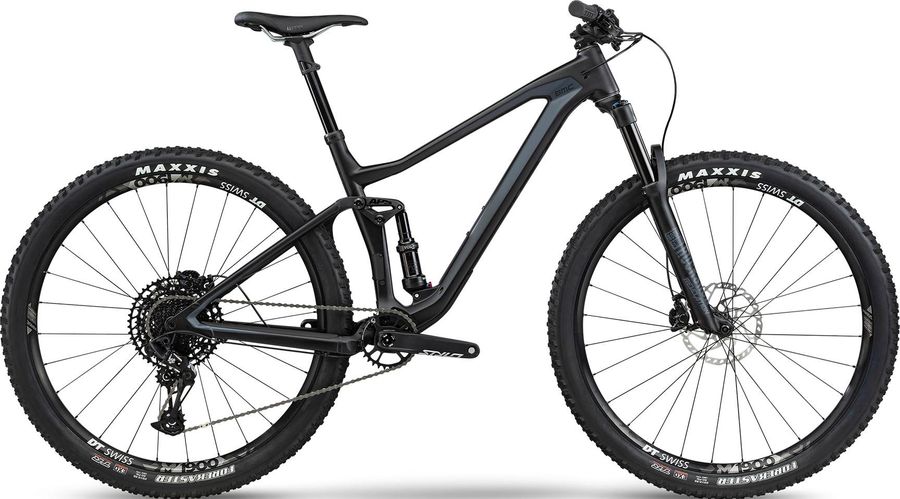

BMC Speedfox 02 TWO 2020

About the BMC Speedfox 02 TWO 2020

The BMC Speedfox 02 TWO 2020 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a SRAM NX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 148, and e-thru axle. The bike weighs approximately 13,3 kg.

Features

The BMC Speedfox 02 TWO 2020 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-traseiro-boost
Boost 148 More info
eixo-e-thru
E-THRU AXLE More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Components
Steam
BMC AMSM 02
Saddle
WTB Silverado Comp 142
Seatpost
BMC Trailsync, 100mm
Handlebar
BMC MRB 03, 760mm
Brakes
Shimano SLX BR-M7100 425 (BL-M7100) g Hydraulic disc brake 2 piston
Average weight (g)
425 (BL-M7100)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SBM
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M7100
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
J03A Resin (w/ fin)
Pad option
J04C Metal (w/ fin)
Pad standard
G03S Resin (w/o fin)
Pad standard
G04S Metal (w/o fin)
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Drivetrain
Crankset
SRAM Stylo 6k Eagle, 30T
Shifter
SRAM NX Eagle
Chain
SRAM NX Eagle 252 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Grey
Color outer link
Grey
Compat speed
12s-Eagle
Inner link finish
Polished
Model
CN-EAGL-NX-A1
Name
NX Eagle Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
252
Rear derailleur
SRAM NX Eagle 12s 339 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-NX-1-B1
Name
NX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Weight
339
Cassette
SRAM NX Eagle
Frameset
Frame
Speedfox 02 - Advanced Pivot System - Trailsync, PF92 Bottom Bracket, 12 x 148mm Thru-axle, 120mm Travel
Front suspension
RockShox Revelation RC DebonAir
Color
Diffusion Black, Gloss Black
Damper type
Motion Control
fork offset
37mm (27.5"), 42mm (29"), 46mm (27.5"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
180mm
Model
FS-RVL-RC-A2
Name
Revelation RC
Spring
DebonAir
Travel (mm)
120mm, 130mm, 140mm, 150mm, 160mm
Upper tube type
35mm tapered wall aluminum
Wheel size
27.5", 29"
Rear suspension
Fox Float DPS Performance Elite EVOL
Wheels
Rims
DT Swiss M1900 Spline 30 **
Tires
Maxxis Forekaster TR/ EXO, 29x2.35
Rear hub
DT Swiss M1900 Spline
Front hub
DT Swiss M1900 Spline

Geometry

Size S29 M29 L29 XL29
a
Seat tube length
420,0
440,0
480,0
510,0
b
Seat tube angle
73,75º
73,75º
73,75º
73,75º
c
Top tube length
590,0
614,0
637,0
656,0
d
Head tube length
95,0
105,0
115,0
135,0
e
Head tube angle
68,0º
68,0º
68,0º
68,0º
f
Rake
51,0
51,0
51,0
51,0
g
Trail
90,0
90,0
90,0
90,0
h
Wheelbase
1126,0
1148,0
1172,0
1192,0
i
Chainstay length
448,0
448,0
448,0
448,0
j
Bottom bracket drop
37,0
37,0
37,0
37,0
k
Stack height
603,0
613,0
623,0
638,0
l
Reach
411,0
433,0
453,0
468,0
m
Standover height
-
-
-
-
x
Bottom bracket height
337,0
337,0
337,0
337,0
y
Front center
677,0
704,0
728,0
748,0
