BikeWise

BMC speedfox 03 2017

MTB Trail
Groupset
Shimano XT
Frame material
Alloy
Wheel size
29"
Suspension type
Full suspension
Front travel
130mm
Rear travel
130mm

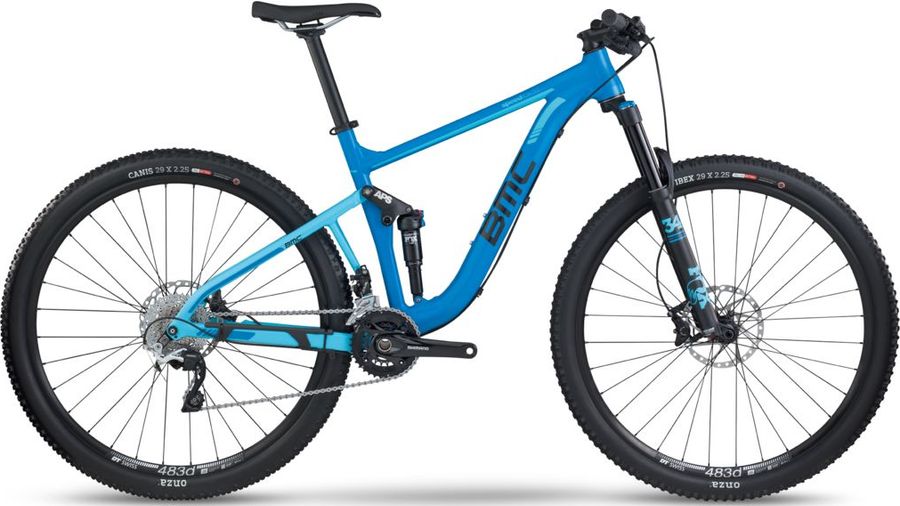

BMC speedfox 03 2017

About the BMC speedfox 03 2017

The BMC speedfox 03 2017 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain of 20 gears (2x10). Its features include hydraulic disc brakes.

Features

The BMC speedfox 03 2017 has 1 features listed below.
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Components
Steam
BMC MSM 03
Saddle
WTB Volt Comp
Seatpost
BMC MSP 03
Handlebar
BMC MFB 03, 750mm
Brakes
Shimano SLX BR-M7100 425 (BL-M7100) g Hydraulic disc brake 2 piston
Average weight (g)
425 (BL-M7100)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SBM
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M7100
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
J03A Resin (w/ fin)
Pad option
J04C Metal (w/ fin)
Pad standard
G03S Resin (w/o fin)
Pad standard
G04S Metal (w/o fin)
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Drivetrain
Crankset
Shimano FC-M627, 36-22T
Shifter
Shimano Deore
Front derailleur
Shimano Deore
Chain
KMC X10
Cassette
Shimano SLX CS-HG81-10
Rear derailleur
Shimano Deore XT RD-M781 238 g SGS 10s
Average weight (g)
238
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Aluminum
Bracket body finish
Painted
Bracket body material
Aluminum
Cable fixing bolt material
Stainless steel
Compatible chain
HG-X 10-speed
Lower pulley max
36T
Lower pulley min
32T
Model
RD-M781-SGS
P axle material
Steel
Pulley bolts material
Stainless steel
G pulley bearing
Sealed bearing
Sunken type pulley bolt
T pulley bearing
Sealed bearing
Pulley teeth
11T
Pulley cage
SGS
Speeds
10
Upper pulley max
11T
Upper pulley min
11T
Total capacity
43T
Frameset
Frame
Al-13 Premium Triple-butted aluminum (F&R)
Front suspension
Fox 34 Float Performance
Rear suspension
Fox Float DPS Performance EVOL
Wheels
Rims
DT Swiss 483d
Tires
Onza: Ibex FRC 120 (F) / Canis FRC 60 (R), 2.25
Rear hub
Shimano HB-M618
Front hub
Shimano HB-M618

Geometry

Size XS SM MD LG XL
a
Seat tube length
390,0
420,0
460,0
500,0
530,0
b
Seat tube angle
74,0º
74,0º
74,0º
74,0º
74,0º
c
Top tube length
573,0
595,0
616,0
637,0
659,0
d
Head tube length
90,0
95,0
100,0
105,0
110,0
e
Head tube angle
68,5º
68,5º
68,5º
68,5º
68,5º
f
Rake
51,0
51,0
51,0
51,0
51,0
g
Trail
91,0
91,0
91,0
91,0
91,0
h
Wheelbase
1112,0
1134,0
1156,0
1178,0
1199,0
i
Chainstay length
442,0
442,0
442,0
442,0
442,0
j
Bottom bracket drop
35,0
35,0
35,0
35,0
35,0
k
Stack height
605,0
609,0
614,0
619,0
623,0
l
Reach
402,0
422,0
442,0
462,0
482,0
m
Standover height
747,0
752,0
765,0
773,0
788,0
x
Bottom bracket height
339,0
339,0
339,0
339,0
339,0
y
Front center
672,0
694,0
716,0
738,0
760,0
