BMC Speedfox 03 TWO 2018

MTB Cross Country
Groupset
SRAM NX
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension

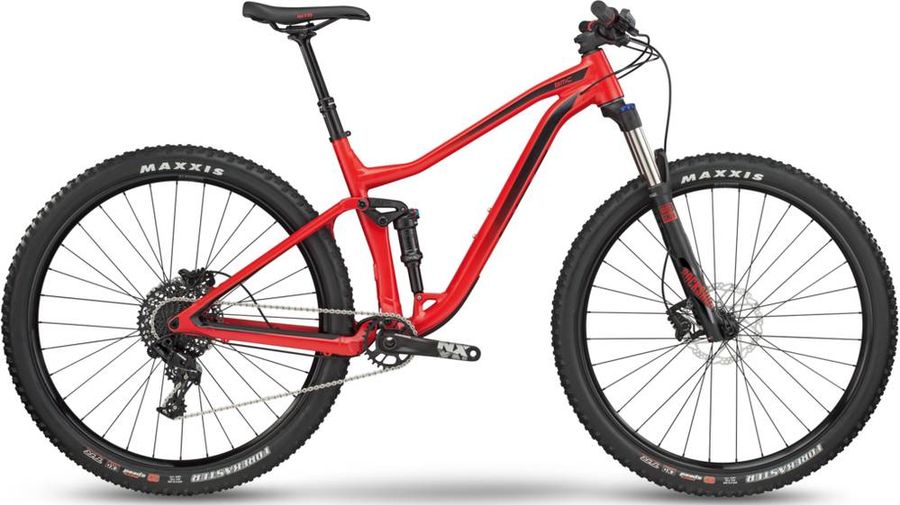

BMC Speedfox 03 TWO 2018

About the BMC Speedfox 03 TWO 2018

The BMC Speedfox 03 TWO 2018 is a Full suspension Cross Country Mountain Bike with a alloy frame. Equipped with a SRAM NX drivetrain of 11 gears (1x11).

Specifications

Components
Steam
BMC MSM 02
Handlebar
BMC MRB 03
Brake lever
Shimano BL-MT500
Saddle
WTB Volt
Brakes
Shimano BR-MT500 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT500
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin (stainless steel)
Piston
2
Piston material
Resin
Recommended disc brake rotor
SM-RT54*
SM-RT56*
Drivetrain
Rear derailleur
SRAM NX 11s 322 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
42
Model
RD-NX-1-A1
Name
NX 1x11 X-HORIZON™ Rear Derailleur
Pulley bearings material
Steel
Speed
11s
Weight
322
Cassette
SRAM PG-1130 11s
Cog finish cassete
Black, Silver
Cog sizes
11-26t:11,12,13,14,15,16,17,19,21,23,26
11-28t:11,12,13,14,15,16,17,19,22,25,28
11-32t:11,12,13,14,15,17,19,22,25,28,32
11-36t:11,12,13,15,17,19,22,25,28,32,36
11-42t: 11,13,15,17,19,22,25,28,32,36,42
Gearing
11-26t
11-28t
11-32t
11-36t
11-42t
Model
CS-PG-1130-A1
Name
PG-1130 Cassette
Speed
11s
Technology cassete
PG
Shifter
SRAM NX
Chain
KMC X11
Crankset
SRAM NX 10/11s 745 g
BB compatibility
BB30/PF30-68/73mm
GXP 100mm/PF GXP 121mm
GXP/PF GXP 68/73mm
PowerSpline BB
BB spindle interface
24mm, 30mm, Power Spline
Bolt circle diameter bcd
94 BCD, Direct Mount (DM)
Chain line
49.0mm, 52.0mm, 66.5mm
Chainring material
Aluminum, Steel
Chainring size
28T, 30T, 32T, 36T, 38T
Crank arm length
155mm, 165mm, 170mm, 175mm
Model
FC-NX-1-A1
Name
NX 1x X-SYNC™ Crankset
Speeds
10/11
Weight based on
GXP 175mm 32t Alu
Weight
745
Frameset
Frame
BMC 03 Alumínio
Front suspension
RockShox Recon RL Solo Air
Color
Diffusion Black, Gloss Black, Gloss White
fork offset
42mm (27.5"), 46mm (29"), 51mm (29")
Max tire width (mm)
62, 81
Maximum rotor size
220mm
Minimum rotor size
160mm
Model
FS-RCN-RL-A1
Name
Recon RL
Spring
Solo Air
Travel (mm)
100mm, 120mm, 130mm, 140mm, 150mm, 80mm
Upper tube type
32mm straight wall steel
Wheel size
27.5", 29"
Rear suspension
Fox Float DPS Performance
Wheels
Rear hub
Shimano Deore FH-M6000
Axle material
Steel
Axle fixing method
Quick release
Bearing cone
CBN
Brake type
Center lock disc brake
Hub shell color
Series Black
Quick release color
Series Black
Without external serration disc rotor lock ring
Flange diameter (mm)
53.8
Flange distance (mm)
57.4
Freehub body material
Steel
Hub shell finish
Anodized
Hub shell material
Aluminum
Without external serration disc rotor lock ring
Model
FH-M6000
Offset (mm)
6.6
Over locknut dimension (mm)
135
PCD left right (mm)
45
Quick release housing finish
Painted
Quick release housing material
Aluminum
Quick release lever finish
Painted
Quick release lever material
Aluminum
Quick release nut material
Resin & Steel
Seal freehub body
Contact
Seal
Labyrinth & Contact
Spoke hole
32H
36H
Front hub
Shimano Deore FH-M6000
Rims
Alexrims MD30
Tires
Maxxis Forekaster

Geometry

Size S M M L XL
a
Seat tube length
410,0
430,0
440,0
480,0
510,0
b
Seat tube angle
73,25º
73,25º
73,25º
73,25º
73,25º
c
Top tube length
587,0
613,0
611,0
634,0
653,0
d
Head tube length
110,0
120,0
105,0
115,0
135,0
e
Head tube angle
67,5º
67,5º
68,25º
68,25º
68,25º
f
Rake
-
-
-
-
-
g
Trail
-
-
-
-
-
h
Wheelbase
1111,0
1138,0
1145,0
1169,0
1189,0
i
Chainstay length
430,0
430,0
445,0
445,0
445,0
j
Bottom bracket drop
22,0
22,0
37,0
37,0
37,0
k
Stack height
584,0
595,0
610,0
620,0
635,0
l
Reach
413,0
436,0
430,0
450,0
465,0
m
Standover height
695,0
722,0
734,0
752,0
773,0
x
Bottom bracket height
-
-
-
-
-
y
Front center
-
-
-
-
-
