BMC Speedfox 03 TWO 2019

MTB Cross Country
Groupset
Shimano Deore
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension

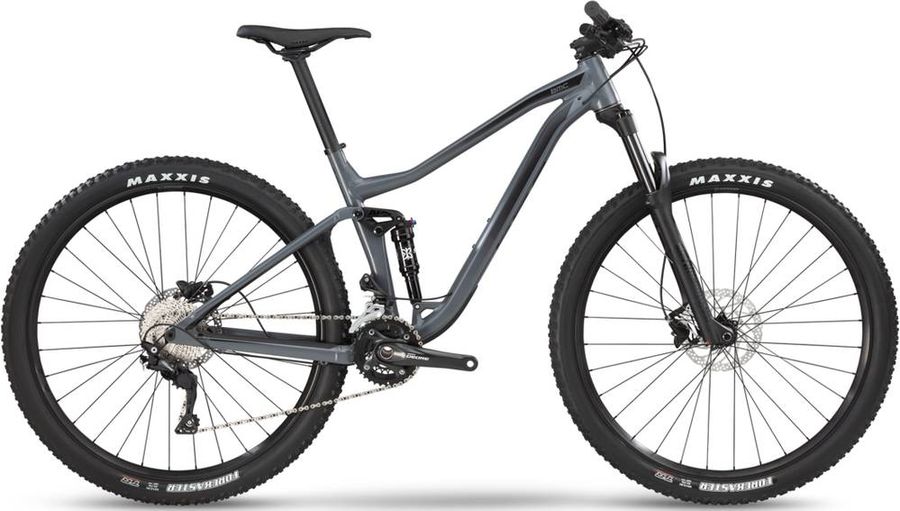

BMC Speedfox 03 TWO 2019

About the BMC Speedfox 03 TWO 2019

The BMC Speedfox 03 TWO 2019 is a Full suspension Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 20 gears (2x10).

Specifications

Components
Seatpost
BMC MSP 03
Steam
BMC MSM 02
Brakes
Shimano Altus BR-M315
Saddle
WTB Silverado
Handlebar
BMC MRB 03
Drivetrain
Chain
KMC X10
Shifter
Shimano Deore SL-M6000 RAPIDFIRE PLUS
Base cover material
GFRP
Clamp bolt material
Stainless steel
Primary color
Series black
Compatible rear derailleur type
MTB 10-speed
Main lever body material
GFRP & Steel
Max multiple shifts main lever rear
3
Model
SL-M6000-R
Mount type
Clamp band
Optical gear display
With
Speeds
10
Release function
2-WAY RELEASE
release_lever_body.material
GFRP & Steel
Shifter type
RAPIDFIRE PLUS
Shifting lever bracket finish
Painted
Shifting lever bracket material
Aluminum
Shifting lever cable finish
OPTISLICK
Shifting lever cable material
Stainless steel
Shifting lever cable adjust
Rear derailleur
Shimano Deore RD-M6000-SGS SGS 10s
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 10-speed
Lower pulley max
36T
Lower pulley min
32T
Model
RD-M6000-SGS
P axle material
Steel
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
Pulley cage
SGS
Speeds
10
Upper pulley max
11T
Upper pulley min
11T
Total capacity
43T
Front derailleur
Shimano Deore FD-M6020
Crankset
Shimano Deore FC-M617 10s
Chain line (mm)
51.8
Chainring combination
36-22T
Primary color
Black
Secondary color
Silver
Compatible bottom bracket type (outboard)
Compatible chain
HG-X
Crank arm finish
Painted
Crank arm material
Aluminum
crank_arm_length_mm.170
crank_arm_length_mm.175
Crank axle finish
Plated
Crank axle material
Steel
Model
FC-M617-B2
Pitch circle diameter
104/64
Q factor (mm)
176
Speeds
10
Recommended bottom bracket (press fit)
BB-MT500-PA
Recommended bottom bracket (threaded normal)
SM-BB52
Recommended bottom bracket (threaded normal)
SM-BB52
Spider arm finish
Painted
Spider arm material
Aluminum
Spider gear arms
4
Frameset
Frame
BMC 03 Alumínio
Rear suspension
X-Fusion O2 RL
Wheels
Rear hub
Shimano Deore FH-M6000
Axle material
Steel
Axle fixing method
Quick release
Bearing cone
CBN
Brake type
Center lock disc brake
Hub shell color
Series Black
Quick release color
Series Black
Without external serration disc rotor lock ring
Flange diameter (mm)
53.8
Flange distance (mm)
57.4
Freehub body material
Steel
Hub shell finish
Anodized
Hub shell material
Aluminum
Without external serration disc rotor lock ring
Model
FH-M6000
Offset (mm)
6.6
Over locknut dimension (mm)
135
PCD left right (mm)
45
Quick release housing finish
Painted
Quick release housing material
Aluminum
Quick release lever finish
Painted
Quick release lever material
Aluminum
Quick release nut material
Resin & Steel
Seal freehub body
Contact
Seal
Labyrinth & Contact
Spoke hole
32H
36H
Front hub
Shimano Deore FH-M6000
Rims
Alexrims MD30
Tires
Maxxis Forekaster

Geometry

Size S M L XL
a
Seat tube length
410,0
440,0
480,0
510,0
b
Seat tube angle
73,25º
73,25º
73,25º
73,25º
c
Top tube length
587,0
611,0
634,0
653,0
d
Head tube length
110,0
105,0
115,0
135,0
e
Head tube angle
67,5º
68,25º
68,25º
68,25º
f
Rake
-
-
-
-
g
Trail
-
-
-
-
h
Wheelbase
1111,0
1145,0
1169,0
1189,0
i
Chainstay length
430,0
445,0
445,0
445,0
j
Bottom bracket drop
22,0
37,0
37,0
37,0
k
Stack height
584,0
610,0
620,0
635,0
l
Reach
413,0
430,0
450,0
465,0
m
Standover height
695,0
734,0
752,0
773,0
x
Bottom bracket height
-
-
-
-
y
Front center
-
-
-
-
