BikeWise

BMC Speedfox AMP THREE 2018

E-Bike
MTB Trail
Groupset
Shimano SLX
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Front travel
130mm
Rear travel
130mm

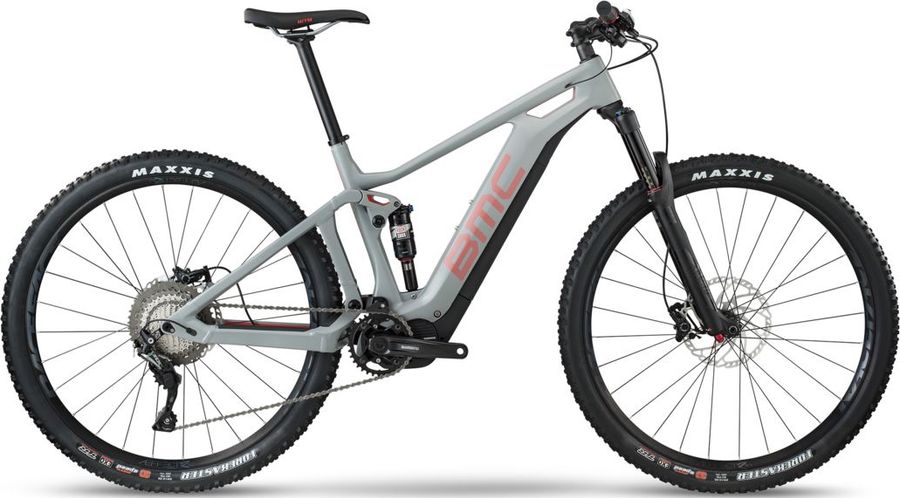

BMC Speedfox AMP THREE 2018

About the BMC Speedfox AMP THREE 2018

The BMC Speedfox AMP THREE 2018 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a Shimano SLX drivetrain of 11 gears (1x11). Its features include hydraulic disc brakes.

Features

The BMC Speedfox AMP THREE 2018 has 1 features listed below.
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Components
Steam
BMC MSM 03
Saddle
WTB Volt Comp
Battery
Shimano STEPS MTB E-8020, 500Wh, integrated
Seatpost
BMC MSP 03
Handlebar
BMC MFB 03 750mm
Brake lever
Shimano Deore
Brakes
Shimano Deore BR-M6000 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH90-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series Black
Secondary color
Series Silver *
color.3
Black (SHIMANO logo) ***
Hose joint
Straight
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M6000
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
G04S Metal **
Pad standard
G02S Resin,
G03S Resin
Pad standard
J02A Resin **
J03A Resin **
Pad mount
Split pin (stainless steel)
Piston
2
Piston material
Resin
Recommended brake lever
BL-M6100
BL-MT501
BL-T6000
Recommended disc brake rotor
SM-RT54****
SM-RT56****
SM-RT64
SM-RT66
Drivetrain
Crankset
Shimano FC-E8000, 34T
Motor
Shimano STEPS MTB E-8000, 250W, 70Nm output
Shifter
Shimano SLX
Cassette
Shimano SLX CS-M7000-11 HG
Aluminum gear pieces
1 (11-40T)
1 (11-42T)
2 (11-46T)
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
1
Combination names
11-40T
11-42T
11-46T
Compatible chain
HG 11-speed, LG
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M7000-11
Steel gear finish
Shot-Ni
Steel gear pieces
10 (11-40T)
10 (11-42T)
9 (11-46T)
Type
HG
Weights
11-40T: 450g
11-42T: 476g
11-46T: 482g
Rear derailleur
Shimano SLX RD-M7000-11-SGS
Chain
Shimano CN-HG601 257 g
Average weight (g)
257
Chromizing treatment roller link pin
Model
CN-HG601-11
Pin link plate
Gray
Roller link plate
SIL-TEC
Type
HG-X11
Frameset
Frame
Carbon (F), Al-13 Triple-butted aluminum (R), integrated battery pack
Front suspension
RockShox Revelation RC DebonAir
Color
Diffusion Black, Gloss Black
Damper type
Motion Control
fork offset
37mm (27.5"), 42mm (29"), 46mm (27.5"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
180mm
Model
FS-RVL-RC-A2
Name
Revelation RC
Spring
DebonAir
Travel (mm)
120mm, 130mm, 140mm, 150mm, 160mm
Upper tube type
35mm tapered wall aluminum
Wheel size
27.5", 29"
Rear suspension
RockShox Monarch RL 215 g
Body eyelet
Standard
Compression tune
H, L, L3, M
Eye to eye stroke
152x31, 165x38, 184x44, 190x51, 200x51, 200x57, 216x63
Lockout force
430
Model
RS-MNR-RL-C2
Name
Monarch RL
Rebound tune
H, L, M
Shaft eyelet
Standard
Weight based on
165x38, standard air can, standard eyelet, no hardware
Weight
215
Wheels
Rims
Alex MD30
Tires
Maxxis Forekaster TR, 2.35
Rear hub
Novatec
Front hub
Novatec

Geometry

Size SM MD LG
a
Seat tube length
400,0
440,0
480,0
b
Seat tube angle
74,0º
74,0º
74,0º
c
Top tube length
572,0
619,0
648,0
d
Head tube length
92,0
103,0
118,0
e
Head tube angle
66,0º
66,0º
66,0º
f
Rake
51,0
51,0
51,0
g
Trail
110,0
107,0
107,0
h
Wheelbase
1159,0
1202,0
1233,0
i
Chainstay length
450,0
450,0
450,0
j
Bottom bracket drop
33,0
35,0
35,0
k
Stack height
598,0
605,0
618,0
l
Reach
401,0
445,0
472,0
m
Standover height
760,0
765,0
770,0
x
Bottom bracket height
341,0
339,0
339,0
y
Front center
711,0
752,0
784,0
