BMC Speedfox AMP THREE 2020

E-Bike
MTB Trail
Groupset
SRAM NX
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Weight
22,1 kg
Front travel
130mm
Rear travel
130mm

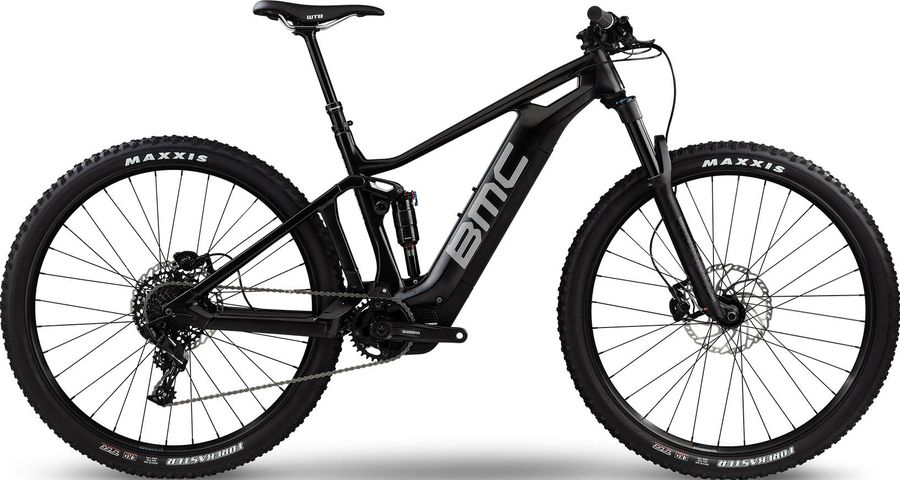

BMC Speedfox AMP THREE 2020

About the BMC Speedfox AMP THREE 2020

The BMC Speedfox AMP THREE 2020 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a SRAM NX drivetrain of 11 gears (1x11). Its features include dropper seatpost, boost 148, and e-thru axle. The bike weighs approximately 22,1 kg.

Features

The BMC Speedfox AMP THREE 2020 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-traseiro-boost
Boost 148 More info
eixo-e-thru
E-THRU AXLE More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Components
Steam
BMC MSM 03
Saddle
WTB Silverado Comp 142
Battery
Shimano STEPS MTB E-8020, 500Wh, integrated
Seatpost
X-Fusion Manic 150mm, 1x remote lever *
Handlebar
BMC MFB 03 750mm
Brakes
Shimano Deore BR-M6000 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH90-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series Black
Secondary color
Series Silver *
color.3
Black (SHIMANO logo) ***
Hose joint
Straight
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M6000
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
G04S Metal **
Pad standard
G02S Resin,
G03S Resin
Pad standard
J02A Resin **
J03A Resin **
Pad mount
Split pin (stainless steel)
Piston
2
Piston material
Resin
Recommended brake lever
BL-M6100
BL-MT501
BL-T6000
Recommended disc brake rotor
SM-RT54****
SM-RT56****
SM-RT64
SM-RT66
Drivetrain
Crankset
Shimano FC-E8000, 34T
Motor
Shimano STEPS MTB E-8000, 250W, 70Nm output
Shifter
SRAM NX
Rear derailleur
SRAM NX 11s 322 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
42
Model
RD-NX-1-A1
Name
NX 1x11 X-HORIZON™ Rear Derailleur
Pulley bearings material
Steel
Speed
11s
Weight
322
Cassette
SRAM PG-1130 11s
Cog finish cassete
Black, Silver
Cog sizes
11-26t:11,12,13,14,15,16,17,19,21,23,26
11-28t:11,12,13,14,15,16,17,19,22,25,28
11-32t:11,12,13,14,15,17,19,22,25,28,32
11-36t:11,12,13,15,17,19,22,25,28,32,36
11-42t: 11,13,15,17,19,22,25,28,32,36,42
Gearing
11-26t
11-28t
11-32t
11-36t
11-42t
Model
CS-PG-1130-A1
Name
PG-1130 Cassette
Speed
11s
Technology cassete
PG
Chain
SRAM PC-1110 259 g
Chain connector
PowerLock
Chain length links
114 links
Color inner link
Grey
Color outer link
Grey
Compat speed
11s
Inner link finish
Polished
Model
CN-1110-A1
Name
PC-1110 Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
259
Frameset
Frame
Speedfox AMP - Twin Hollowcore - Advanced Pivot System, 12 x 148mm Thru-axle, 130mm Travel
Front suspension
RockShox Revelation RC DebonAir
Color
Diffusion Black, Gloss Black
Damper type
Motion Control
fork offset
37mm (27.5"), 42mm (29"), 46mm (27.5"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
180mm
Model
FS-RVL-RC-A2
Name
Revelation RC
Spring
DebonAir
Travel (mm)
120mm, 130mm, 140mm, 150mm, 160mm
Upper tube type
35mm tapered wall aluminum
Wheel size
27.5", 29"
Rear suspension
RockShox Monarch RT
Body eyelet
No Bushing, Standard
Compression tune
H, L, L1, L3, M
Eye to eye stroke
152x31, 165x38, 184x44, 190x51, 200x51, 200x57, 216x63
Lockout force
320, 380
Model
RS-MNR-RT-D3
Name
Monarch RT
Rebound tune
H, L, M
Shaft eyelet
No Bushing, Standard
Wheels
Rims
Alex MD30 **
Tires
Maxxis Forekaster TR/ EXO, 2.35
Rear hub
Formula DC-7131/ EHL-148S
Front hub
Formula DC-7131/ EHL-148S

Geometry

Size SM MD LG
a
Seat tube length
400,0
440,0
480,0
b
Seat tube angle
74,0º
74,0º
74,0º
c
Top tube length
572,0
619,0
648,0
d
Head tube length
92,0
103,0
118,0
e
Head tube angle
66,0º
66,0º
66,0º
f
Rake
51,0
51,0
51,0
g
Trail
110,0
107,0
107,0
h
Wheelbase
1159,0
1202,0
1233,0
i
Chainstay length
450,0
450,0
450,0
j
Bottom bracket drop
33,0
35,0
35,0
k
Stack height
598,0
605,0
618,0
l
Reach
401,0
445,0
472,0
m
Standover height
-
-
-
x
Bottom bracket height
341,0
339,0
339,0
y
Front center
711,0
752,0
784,0
