BMC Speedfox AMP TWO 2018

E-Bike
MTB Trail
Groupset
Shimano XT
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Front travel
130mm
Rear travel
130mm

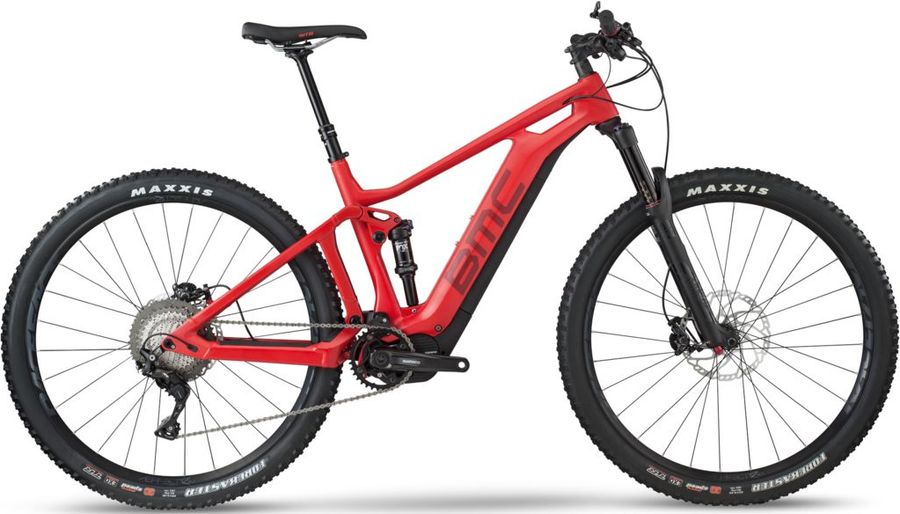

BMC Speedfox AMP TWO 2018

About the BMC Speedfox AMP TWO 2018

The BMC Speedfox AMP TWO 2018 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a Shimano XT drivetrain of 11 gears (1x11). Its features include dropper seatpost e hydraulic disc brakes.

Features

The BMC Speedfox AMP TWO 2018 has 2 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Components
Steam
BMC MSM 02
Saddle
WTB Volt Race
Battery
Shimano STEPS MTB E-8020, 500Wh, integrated
Seatpost
RaceFace Aeffect Dropper 125mm
Handlebar
BMC MFB 02, 750mm
Brake lever
Shimano XT
Brakes
Shimano Deore XT BR-M8000 403 (BL-M8000) g Hydraulic disc brake 2 piston
Average weight (g)
403 (BL-M8000)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SB
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
Model
BR-M8000
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
G04S Metal
Pad option
J04C Metal
Pad standard
G02A Resin
G03A Resin
Pad standard
J02A Resin
J03A Resin
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Recommended brake lever
BL-M8000
BL-T8000
Recommended disc brake rotor
RT-MT800
SM-RT86
Drivetrain
Crankset
Shimano FC-E8000, 34T
Motor
Shimano STEPS MTB E-8000, 250W, 70Nm output
Shifter
Shimano XT
Chain
Shimano CN-HG701 257 g
Average weight (g)
257
Chromizing treatment roller link pin
Model
CN-HG701-11
Pin link plate
SIL-TEC
Roller link plate
SIL-TEC
Type
HG-X11
Rear derailleur
Shimano Deore XT RD-M8000-GS 271 g GS 11s
Average weight (g)
271
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Aluminum
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 11-speed
Lower pulley max
42T(2x11-speed),
46T(1x11-speed)
Lower pulley min
40T
Model
RD-M8000-GS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
GS
Speeds
11
Upper pulley max
11T
Upper pulley min
11T
Total capacity
39T
Cassette
Shimano Deore XT CS-M8000 HG
Aluminum gear pieces
2
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
2
Combination names
11-40T
11-42T
11-46T
Compatible chain
HG 11-speed, LG
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M8000
Steel gear finish
Shot-Ni
Steel gear pieces
9
Type
HG
Weights
11-40T: 411g
11-42T: 434g
11-46T: 437g
Frameset
Frame
Carbon (F), Al-13 Triple-butted aluminum (R), integrated battery pack
Front suspension
RockShox Revelation RC DebonAir
Color
Diffusion Black, Gloss Black
Damper type
Motion Control
fork offset
37mm (27.5"), 42mm (29"), 46mm (27.5"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
180mm
Model
FS-RVL-RC-A2
Name
Revelation RC
Spring
DebonAir
Travel (mm)
120mm, 130mm, 140mm, 150mm, 160mm
Upper tube type
35mm tapered wall aluminum
Wheel size
27.5", 29"
Rear suspension
Fox Float DPS Performance EVOL
Wheels
Rims
RaceFace Aeffect -R 30
Tires
Maxxis Forekaster EXO, 2.35
Rear hub
RaceFace Aeffect -R
Front hub
RaceFace Aeffect -R

Geometry

Size SM MD LG
a
Seat tube length
400,0
440,0
480,0
b
Seat tube angle
74,0º
74,0º
74,0º
c
Top tube length
572,0
619,0
648,0
d
Head tube length
92,0
103,0
118,0
e
Head tube angle
66,0º
66,0º
66,0º
f
Rake
51,0
51,0
51,0
g
Trail
110,0
107,0
107,0
h
Wheelbase
1159,0
1202,0
1233,0
i
Chainstay length
450,0
450,0
450,0
j
Bottom bracket drop
33,0
35,0
35,0
k
Stack height
598,0
605,0
618,0
l
Reach
401,0
445,0
472,0
m
Standover height
760,0
765,0
770,0
x
Bottom bracket height
341,0
339,0
339,0
y
Front center
711,0
752,0
784,0
