BMC Sportelite ONE 2020

MTB Cross Country
Groupset
SRAM SX Eagle
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Weight
12,8 kg
Front travel
100mm
BMC Sportelite ONE 2020

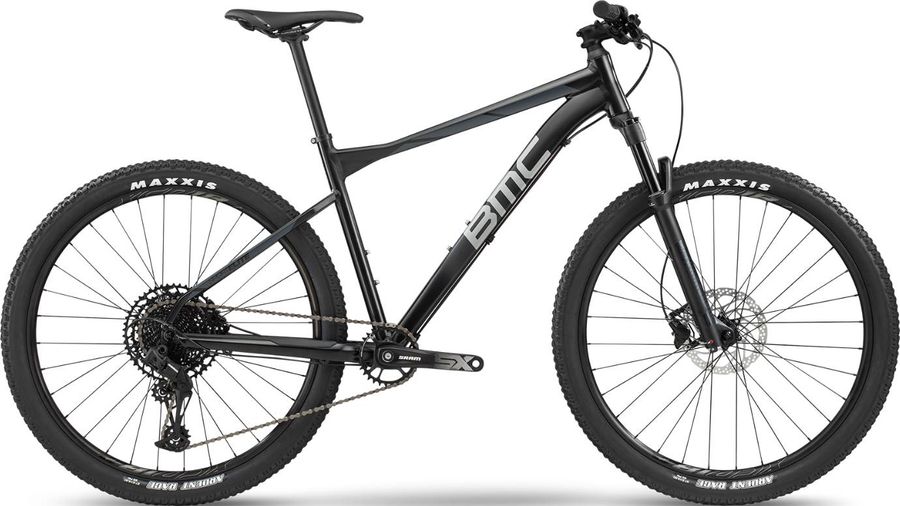

About the BMC Sportelite ONE 2020

The BMC Sportelite ONE 2020 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a SRAM SX Eagle drivetrain of 12 gears (1x12). The bike weighs approximately 12,8 kg.

Specifications

Components
Steam
BMC MSM 03
Saddle
VL-1831
Seatpost
BMC MSP 03
Handlebar
BMC MRB 03, 700mm
Brakes
Shimano BR-MT200 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT200
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin
Piston
2
Piston material
Resin
Recommended brake lever
BL-MT201
BL-MT200
Recommended disc brake rotor
SM-RT10*
SM-RT26*
Drivetrain
Crankset
SRAM SX Eagle, 30T
Shifter
SRAM SX Eagle
Cassette
SRAM SX Eagle
Chain
SRAM SX Eagle
Rear derailleur
SRAM SX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-SX-1-A1
Name
SX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
Sportelite 27.5 - BSA Threaded Bottom Bracket, 9X135mm QR
Front suspension
RockShox TK30 Silver
Wheels
Rims
Jalco XCD 18
Tires
Maxxis Ardent Race 2.2
Rear hub
Shimano RM-35
Front hub
Shimano RM-35

Geometry

Size XS SM MD LG XL
a
Seat tube length
380,0
420,0
460,0
500,0
540,0
b
Seat tube angle
73,0º
73,0º
73,0º
73,0º
73,0º
c
Top tube length
555,0
583,0
607,0
632,0
651,0
d
Head tube length
100,0
110,0
120,0
140,0
150,0
e
Head tube angle
70,0º
70,0º
70,0º
70,0º
70,0º
f
Rake
42,0
42,0
42,0
42,0
42,0
g
Trail
82,0
82,0
82,0
82,0
82,0
h
Wheelbase
1050,0
1080,0
1104,0
1130,0
1149,0
i
Chainstay length
432,0
432,0
432,0
432,0
432,0
j
Bottom bracket drop
42,0
42,0
42,0
42,0
42,0
k
Stack height
577,0
591,0
601,0
619,0
629,0
l
Reach
382,0
402,0
422,0
442,0
462,0
m
Standover height
-
-
-
-
-
x
Bottom bracket height
313,0
313,0
313,0
313,0
313,0
y
Front center
622,0
652,0
675,0
701,0
720,0
