BMC Sportelite SE ONE 2018

MTB Cross Country
Groupset
Shimano Deore XT
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
BMC Sportelite SE ONE 2018

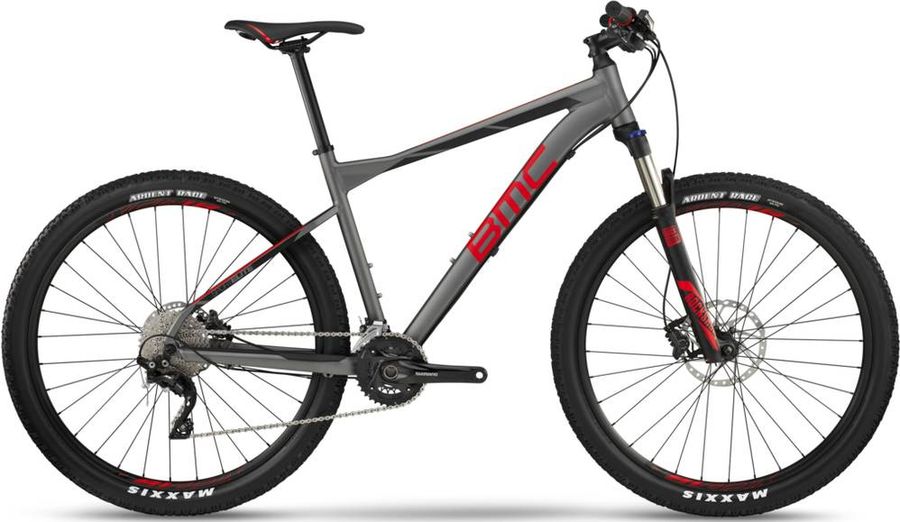

About the BMC Sportelite SE ONE 2018

The BMC Sportelite SE ONE 2018 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Deore XT drivetrain of 20 gears (2x10).

Specifications

Components
Steam
BMC MSM 03
Seatpost
BMC MSP 03
Handlebar
BMC MRB 03
Brake lever
Shimano BL-MT500
Brakes
Shimano BR-MT500 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT500
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin (stainless steel)
Piston
2
Piston material
Resin
Recommended disc brake rotor
SM-RT54*
SM-RT56*
Drivetrain
Chain
KMC X10
Shifter
Shimano Deore SL-M6000 RAPIDFIRE PLUS
Base cover material
GFRP
Clamp bolt material
Stainless steel
Primary color
Series black
Compatible rear derailleur type
MTB 10-speed
Main lever body material
GFRP & Steel
Max multiple shifts main lever rear
3
Model
SL-M6000-R
Mount type
Clamp band
Optical gear display
With
Speeds
10
Release function
2-WAY RELEASE
release_lever_body.material
GFRP & Steel
Shifter type
RAPIDFIRE PLUS
Shifting lever bracket finish
Painted
Shifting lever bracket material
Aluminum
Shifting lever cable finish
OPTISLICK
Shifting lever cable material
Stainless steel
Shifting lever cable adjust
Rear derailleur
Shimano Deore XT RD-M8000-GS 271 g GS 11s
Average weight (g)
271
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Aluminum
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 11-speed
Lower pulley max
42T(2x11-speed),
46T(1x11-speed)
Lower pulley min
40T
Model
RD-M8000-GS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
GS
Speeds
11
Upper pulley max
11T
Upper pulley min
11T
Total capacity
39T
Cassette
Shimano Deore CS-HG50-10 HG
Combination names
11-36T
Compatible chain
HG-X 10-speed
Lock ring finish
Cr plated
Lock ring material
Steel
Model
CS-HG50-10
Steel gear finish
Ni plated
Steel gear pieces
10
Type
HG
Front derailleur
Shimano Deore FD-M6000
Action side swing
applicable_top_mid_tooth_difference
10T
Cable route type front pull
Chain guide finish
Plated
Chain guide material
Steel
Primary color
Series Black
Compatible chain
HG-X 10speed
Inner link finish
Painted
Inner link material
Aluminum
Link bushings
4
Model
FD-M6000-D
Outer link material
GFRP + Steel
Rear clamp band base bracket finish
Painted
Rear clamp band base bracket material
Aluminum
Stroke adjusting screw finish
Black
Stroke adjusting screw material
Steel
Total capacity
18T
Frameset
Frame
BMC Alumínio
Front suspension
RockShox Recon RL Solo Air
Color
Diffusion Black, Gloss Black, Gloss White
fork offset
42mm (27.5"), 46mm (29"), 51mm (29")
Max tire width (mm)
62, 81
Maximum rotor size
220mm
Minimum rotor size
160mm
Model
FS-RCN-RL-A1
Name
Recon RL
Spring
Solo Air
Travel (mm)
100mm, 120mm, 130mm, 140mm, 150mm, 80mm
Upper tube type
32mm straight wall steel
Wheel size
27.5", 29"
Wheels
Rear hub
Shimano SLX FH-M7000
Front hub
Shimano SLX HB-M7000
Tires
Maxxis Ardent Race

Geometry

Size XS S M L XL
a
Seat tube length
380,0
420,0
460,0
500,0
540,0
b
Seat tube angle
73,0º
73,0º
73,0º
73,0º
73,0º
c
Top tube length
558,0
586,0
610,0
635,0
654,0
d
Head tube length
100,0
110,0
120,0
140,0
150,0
e
Head tube angle
70,0º
70,0º
70,0º
70,0º
70,0º
f
Rake
-
-
-
-
-
g
Trail
-
-
-
-
-
h
Wheelbase
1053,0
1083,0
1107,0
1133,0
1152,0
i
Chainstay length
435,0
435,0
435,0
435,0
435,0
j
Bottom bracket drop
42,0
42,0
42,0
42,0
42,0
k
Stack height
580,0
594,0
604,0
622,0
632,0
l
Reach
385,0
405,0
425,0
445,0
465,0
m
Standover height
704,0
744,0
766,0
779,0
825,0
x
Bottom bracket height
-
-
-
-
-
y
Front center
-
-
-
-
-
