BMC Sportelite TWO 2020

MTB Cross Country
Groupset
Shimano Alivio
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Weight
13,16 kg
Front travel
100mm

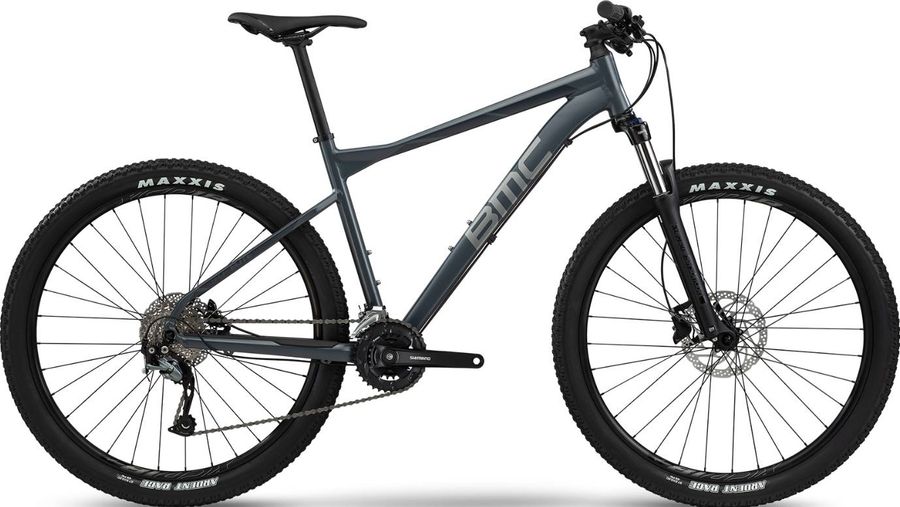

BMC Sportelite TWO 2020

About the BMC Sportelite TWO 2020

The BMC Sportelite TWO 2020 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Alivio drivetrain of 18 gears (2x9). The bike weighs approximately 13,16 kg.

Specifications

Components
Steam
BMC MSM 03
Saddle
VL-1831
Seatpost
BMC MSP 03
Handlebar
BMC MRB 03, 700mm
Brakes
Shimano BR-MT200 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT200
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin
Piston
2
Piston material
Resin
Recommended brake lever
BL-MT201
BL-MT200
Recommended disc brake rotor
SM-RT10*
SM-RT26*
Drivetrain
Crankset
Shimano FC-MT101, 36-22T
Shifter
Shimano Alivio
Chain
KMC HG53
Cassette
Sunrace M96 11-34T 9-speed
Rear derailleur
Shimano Alivio RD-M3100 SGS 9s
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
CN-HG53 9-speed
Lower pulley max
36T
Lower pulley min
32T
Model
RD-M3100-SGS
P axle finish
Zinc plated
P axle material
Steel
pulley.screws_material
Steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
Pulley cage
SGS
Speeds
9
Upper pulley max
12T
Upper pulley min
11T
Total capacity
45T
Frameset
Frame
Sportelite 27.5 - BSA Threaded Bottom Bracket, 9X135mm QR
Front suspension
SR Suntour XCM-LO
Wheels
Rims
Jalco XCD 18
Tires
Maxxis Ardent Race 2.2
Rear hub
Shimano RM-35
Front hub
Shimano RM-35

Geometry

Size XS SM MD LG XL
a
Seat tube length
380,0
420,0
460,0
500,0
540,0
b
Seat tube angle
73,0º
73,0º
73,0º
73,0º
73,0º
c
Top tube length
555,0
583,0
607,0
632,0
651,0
d
Head tube length
100,0
110,0
120,0
140,0
150,0
e
Head tube angle
70,0º
70,0º
70,0º
70,0º
70,0º
f
Rake
42,0
42,0
42,0
42,0
42,0
g
Trail
82,0
82,0
82,0
82,0
82,0
h
Wheelbase
1050,0
1080,0
1104,0
1130,0
1149,0
i
Chainstay length
432,0
432,0
432,0
432,0
432,0
j
Bottom bracket drop
42,0
42,0
42,0
42,0
42,0
k
Stack height
577,0
591,0
601,0
619,0
629,0
l
Reach
382,0
402,0
422,0
442,0
462,0
m
Standover height
-
-
-
-
-
x
Bottom bracket height
313,0
313,0
313,0
313,0
313,0
y
Front center
622,0
652,0
675,0
701,0
720,0
