BMC teamelite 01 2017

MTB Cross Country
Groupset
Shimano XTR Di2
Frame material
Carbon
Wheel size
29"
Suspension type
Hardtail
Front travel
100mm

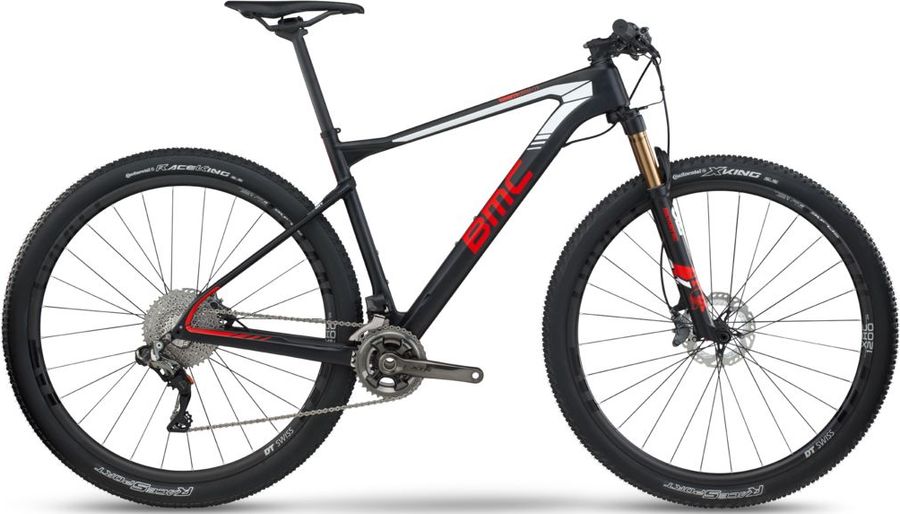

BMC teamelite 01 2017

About the BMC teamelite 01 2017

The BMC teamelite 01 2017 is a Hardtail Cross Country Mountain Bike with a carbon frame. Equipped with a Shimano XTR Di2 drivetrain of 22 gears (2x11). Its features include hydraulic disc brakes.

Features

The BMC teamelite 01 2017 has 1 features listed below.
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Components
Steam
BMC MSM 02
Saddle
Fizik Tundra M3 carbon
Seatpost
MSP 01 Premium Carbon Compliance Post, 3mm offset
Handlebar
BMC MFB 01 Carbon, 720mm
Brakes
Shimano XTR BR-M9000 316.1 g Hydraulic disc brake 2 piston
Average weight (g)
316.1
Brake hose color kit
Black
Brake hose kit
SM-BH90-SBM
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Magnesium
Caliper fixing bolt anti loosen method
Wiring
Caliper fixing bolt material
Ti
Caliper fixing bolt tool size
** 4 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M9000
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
J02A Resin
J03A Resin
Pad option
J04C Metal
Pad standard
G02A Resin
G03A Resin
Pad standard
G04Ti Metal
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Recommended disc brake rotor
SM-RT99
* SM-RT99-A
Drivetrain
Crankset
Shimano XTR, 36-26T
Shifter
Shimano XTR Di2, Synchroshift (Right only)
Front derailleur
Shimano XTR Di2
Rear derailleur
Shimano XTR RD-M9050 Di2
Chain
Shimano CN-M9100 242 g
Average weight (g)
242
Chromizing treatment roller link pin
Model
CN-M9100
Pin link plate
SIL-TEC
Roller
SIL-TEC
Roller link plate
Chromizing
Type
HG 12-speed
Cassette
Shimano XTR CS-M9001 11s HG
Aluminum gear pieces
6
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
2
Carbon spider arm pieces
2
Combination names
11-40T
Combination
11-13-15-17-19*-21*-24*-27*-31*-35*-40**
Compatible chain
HG-X11
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M9001
Speeds
11
Steel gear finish
Shot-Ni
Steel gear pieces
4
Titanium gear finish
Shot
Titanium gear pieces
1
Type
HG
Frameset
Frame
01 Premium Carbon, Tuned Compliance Concept, DTi
Front suspension
Fox 32 SC Float Factory Kashima
Wheels
Rims
DT Swiss XRC 1200
Tires
Continental: X-King (F) / RaceKing (R), Race Sport, 2.2
Rear hub
DT Swiss XRC 1200, Centerlock
Front hub
DT Swiss XRC 1200, Centerlock

Geometry

Size XS SM MD LG XL
a
Seat tube length
400,0
445,0
485,0
525,0
545,0
b
Seat tube angle
73,5º
73,5º
73,5º
73,5º
73,5º
c
Top tube length
550,0
584,0
610,0
630,0
649,0
d
Head tube length
90,0
90,0
100,0
110,0
120,0
e
Head tube angle
70,0º
70,0º
70,0º
70,0º
70,0º
f
Rake
51,0
51,0
51,0
51,0
51,0
g
Trail
80,0
80,0
80,0
80,0
80,0
h
Wheelbase
1046,0
1081,0
1107,0
1128,0
1146,0
i
Chainstay length
429,0
429,0
429,0
429,0
429,0
j
Bottom bracket drop
61,0
61,0
61,0
61,0
61,0
k
Stack height
599,0
608,0
618,0
628,0
638,0
l
Reach
377,0
401,0
426,0
442,0
458,0
m
Standover height
687,0
773,0
803,0
828,0
838,0
x
Bottom bracket height
313,0
313,0
313,0
313,0
313,0
y
Front center
625,0
659,0
685,0
706,0
725,0
