BMC Teamelite 01 TWO 2019

MTB Cross Country
Groupset
Shimano XT Di2
Frame material
Carbon
Wheel size
29"
Suspension type
Hardtail

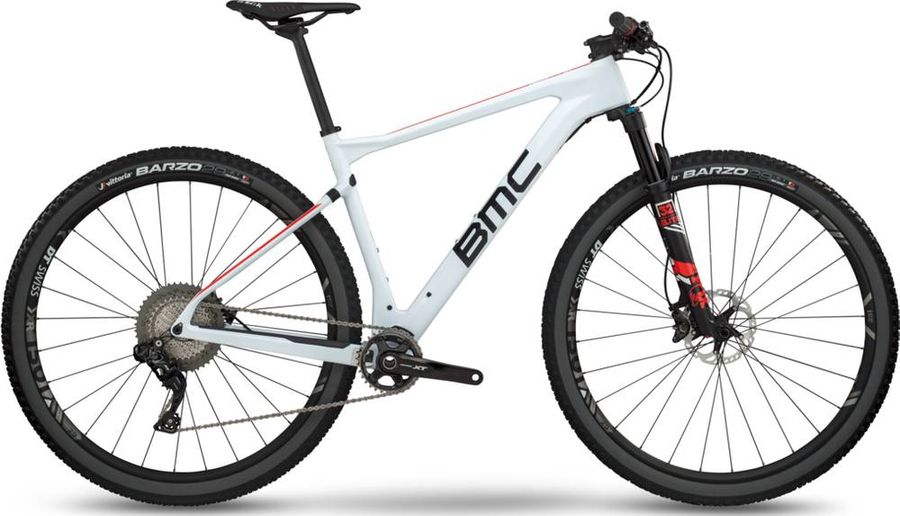

BMC Teamelite 01 TWO 2019

About the BMC Teamelite 01 TWO 2019

The BMC Teamelite 01 TWO 2019 is a Hardtail Cross Country Mountain Bike with a carbon frame. Equipped with a Shimano XT Di2 drivetrain of 11 gears (1x11).

Specifications

Components
Saddle
Fizik Antares R7
Steam
BMC MSM 02
Handlebar
BMC MFB 01 Carbon
Brakes
Shimano Deore XT BR-M8000 403 (BL-M8000) g Hydraulic disc brake 2 piston
Average weight (g)
403 (BL-M8000)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SB
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
Model
BR-M8000
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
G04S Metal
Pad option
J04C Metal
Pad standard
G02A Resin
G03A Resin
Pad standard
J02A Resin
J03A Resin
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Recommended brake lever
BL-M8000
BL-T8000
Recommended disc brake rotor
RT-MT800
SM-RT86
Drivetrain
Crankset
Shimano Deore XT FC-M8000-B1 11s
Chain line (mm)
53.4
Chainring combination
32T, 30T (SM-CRM81)
Primary color
Series color
Compatible bottom bracket type (outboard)
Compatible chain
HG-X11
Crank arm finish
Anodized
Crank arm material
Aluminum
crank_arm_length_mm.170
crank_arm_length_mm.175
crank_arm_length_mm.180
true
- (30T)
Crank axle finish
Plated
Crank axle material
Steel
Hollowtech II
Model
FC-M8000-B1
Pitch circle diameter
96
Q factor (mm)
176
Speeds
11
Recommended bottom bracket (press fit)
BB-MT800-PA
Recommended bottom bracket (threaded normal)
BB-MT800
Spider arm finish
Painted
Spider arm material
Aluminum
Spider gear arms
4
Rear derailleur
Shimano Deore XT RD-M8000-GS 271 g GS 11s
Average weight (g)
271
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Aluminum
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 11-speed
Lower pulley max
42T(2x11-speed),
46T(1x11-speed)
Lower pulley min
40T
Model
RD-M8000-GS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
GS
Speeds
11
Upper pulley max
11T
Upper pulley min
11T
Total capacity
39T
Cassette
Shimano Deore XT CS-M8000 HG
Aluminum gear pieces
2
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
2
Combination names
11-40T
11-42T
11-46T
Compatible chain
HG 11-speed, LG
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M8000
Steel gear finish
Shot-Ni
Steel gear pieces
9
Type
HG
Weights
11-40T: 411g
11-42T: 434g
11-46T: 437g
Shifter
Shimano Deore XT SL-M8000 127 ( /pc) g RAPIDFIRE PLUS
Average weight (g)
127 ( /pc)
Base cover finish
Painted
Base cover material
GFRP
Clamp bolt material
Stainless steel
Primary color
Series color
Compatible rear derailleur type
MTB 11-speed
Compatible with I spec
Main lever body finish
Painted
Main lever body material
Aluminum
Max multiple shifts main lever rear
4
Model
SL-M8000-R
Mount type
Clamp band
Optical gear display
With (removable)
Speeds
11
Release function
2-WAY RELEASE
release_lever_body.material
GFRP & Steel
Shifter type
RAPIDFIRE PLUS
Shifting lever bracket finish
Painted
Shifting lever bracket material
Aluminum
Shifting lever cable finish
OPTISLICK
Shifting lever cable material
Stainless steel
Shifting lever cable adjust
Frameset
Front suspension
Fox 32 Performance
Frame
BMC 01 Carbon DTi
Wheels
Front hub
DT Swiss XR 1501 SPLINE® ONE
Rims
DT Swiss XR 1501 SPLINE® ONE
Rear hub
DT Swiss XR 1501 SPLINE® ONE
Tires
Vittoria BARZO

Geometry

Size XS S M L XL
a
Seat tube length
400,0
445,0
485,0
525,0
545,0
b
Seat tube angle
73,5º
73,5º
73,5º
73,5º
73,5º
c
Top tube length
550,0
584,0
610,0
630,0
649,0
d
Head tube length
90,0
90,0
100,0
110,0
120,0
e
Head tube angle
70,0º
70,0º
70,0º
70,0º
70,0º
f
Rake
-
-
-
-
-
g
Trail
-
-
-
-
-
h
Wheelbase
1046,0
1081,0
1107,0
1128,0
1146,0
i
Chainstay length
429,0
429,0
429,0
429,0
429,0
j
Bottom bracket drop
61,0
61,0
61,0
61,0
61,0
k
Stack height
599,0
608,0
618,0
628,0
638,0
l
Reach
377,0
401,0
426,0
442,0
458,0
m
Standover height
687,0
773,0
803,0
828,0
838,0
x
Bottom bracket height
-
-
-
-
-
y
Front center
-
-
-
-
-
