BikeWise

BMC teamelite 02 2017

MTB Cross Country
Groupset
Shimano XT
Frame material
Carbon
Wheel size
29"
Suspension type
Hardtail
Front travel
100mm

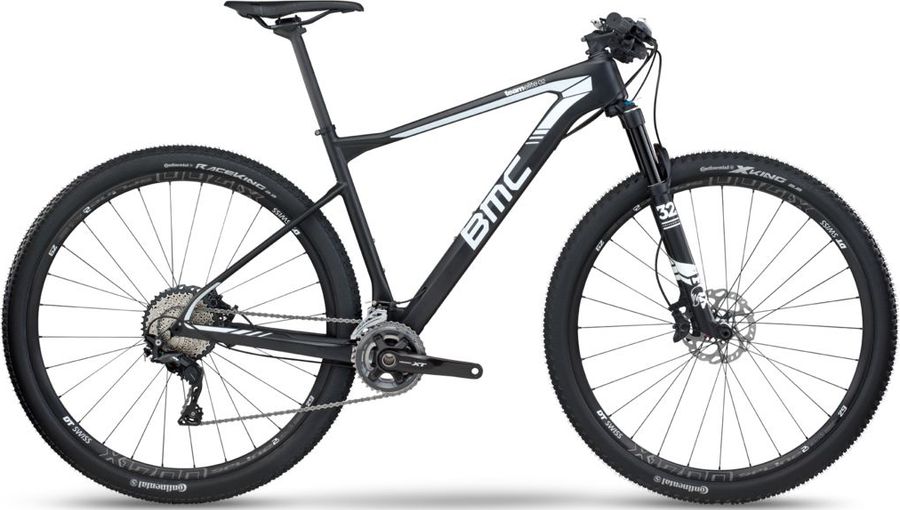

BMC teamelite 02 2017

About the BMC teamelite 02 2017

The BMC teamelite 02 2017 is a Hardtail Cross Country Mountain Bike with a carbon frame. Equipped with a Shimano XT drivetrain of 22 gears (2x11). Its features include hydraulic disc brakes e remote lockout.

Features

The BMC teamelite 02 2017 has 2 features listed below.
freio-hidraulico
Hydraulic disc brakes More info
trava-remota-guidao
Remote lockout More info

Specifications

Components
Steam
BMC MSM 02
Saddle
Fizik Tundra M7 Versus
Seatpost
BMC MSP 02
Handlebar
BMC MFB 02, 720mm
Brakes
Shimano SLX BR-M7100 425 (BL-M7100) g Hydraulic disc brake 2 piston
Average weight (g)
425 (BL-M7100)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SBM
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M7100
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
J03A Resin (w/ fin)
Pad option
J04C Metal (w/ fin)
Pad standard
G03S Resin (w/o fin)
Pad standard
G04S Metal (w/o fin)
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Drivetrain
Crankset
Shimano XT, 36-26T
Shifter
New Shimano SLX
Front derailleur
New Shimano SLX
Rear derailleur
Shimano Deore XT RD-M8000-GS 271 g GS 11s
Average weight (g)
271
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Aluminum
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 11-speed
Lower pulley max
42T(2x11-speed),
46T(1x11-speed)
Lower pulley min
40T
Model
RD-M8000-GS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
GS
Speeds
11
Upper pulley max
11T
Upper pulley min
11T
Total capacity
39T
Cassette
Shimano SLX CS-M7000-11 HG
Aluminum gear pieces
1 (11-40T)
1 (11-42T)
2 (11-46T)
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
1
Combination names
11-40T
11-42T
11-46T
Compatible chain
HG 11-speed, LG
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M7000-11
Steel gear finish
Shot-Ni
Steel gear pieces
10 (11-40T)
10 (11-42T)
9 (11-46T)
Type
HG
Weights
11-40T: 450g
11-42T: 476g
11-46T: 482g
Chain
Shimano CN-HG601 257 g
Average weight (g)
257
Chromizing treatment roller link pin
Model
CN-HG601-11
Pin link plate
Gray
Roller link plate
SIL-TEC
Type
HG-X11
Frameset
Frame
02 Carbon, Tuned Compliance Concept, DTi
Front suspension
Fox 32 Float Performance SC
Wheels
Rims
DT Swiss X1700 Spline
Tires
Continental: X-King (F) / RaceKing (R), Performance Silver, 2.2
Rear hub
DT Swiss X1700 Spline
Front hub
DT Swiss X1700 Spline

Geometry

Size XS SM MD LG XL
a
Seat tube length
400,0
445,0
485,0
525,0
545,0
b
Seat tube angle
73,5º
73,5º
73,5º
73,5º
73,5º
c
Top tube length
550,0
584,0
610,0
630,0
649,0
d
Head tube length
90,0
90,0
100,0
110,0
120,0
e
Head tube angle
70,0º
70,0º
70,0º
70,0º
70,0º
f
Rake
51,0
51,0
51,0
51,0
51,0
g
Trail
80,0
80,0
80,0
80,0
80,0
h
Wheelbase
1046,0
1081,0
1107,0
1128,0
1146,0
i
Chainstay length
429,0
429,0
429,0
429,0
429,0
j
Bottom bracket drop
61,0
61,0
61,0
61,0
61,0
k
Stack height
599,0
608,0
618,0
628,0
638,0
l
Reach
377,0
401,0
426,0
442,0
458,0
m
Standover height
687,0
773,0
803,0
828,0
838,0
x
Bottom bracket height
313,0
313,0
313,0
313,0
313,0
y
Front center
625,0
659,0
685,0
706,0
725,0
