BMC TEAMELITE 02 ONE 2019

MTB Cross Country
Groupset
SRAM GX Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Hardtail
Front travel
100mm

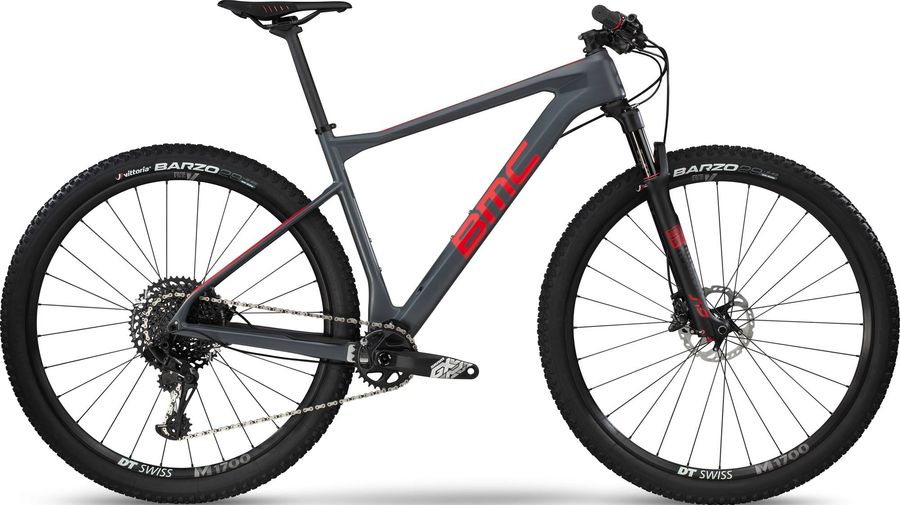

BMC TEAMELITE 02 ONE 2019

About the BMC TEAMELITE 02 ONE 2019

The BMC TEAMELITE 02 ONE 2019 is a Hardtail Cross Country Mountain Bike with a carbon frame. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include boost 110 , hydraulic disc brakes, and remote lockout.

Features

The BMC TEAMELITE 02 ONE 2019 has 3 features listed below.
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info
trava-remota-guidao
Remote lockout More info

Specifications

Components
Steam
BMC MSM 02
Saddle
Fizik Antares R7
Seatpost
MSP 01 Premium Carbon Compliance Post, 3mm offset
Handlebar
BMC MFB 01 Carbon, 750mm
Brake lever
Shimano SLX
Brakes
Shimano SLX BR-M7100 425 (BL-M7100) g Hydraulic disc brake 2 piston
Average weight (g)
425 (BL-M7100)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SBM
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M7100
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
J03A Resin (w/ fin)
Pad option
J04C Metal (w/ fin)
Pad standard
G03S Resin (w/o fin)
Pad standard
G04S Metal (w/o fin)
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Drivetrain
Crankset
SRAM GX Eagle, 32T
Shifter
SRAM GX Eagle
Chain guide
Integrated upper guide
Bottom bracket
PF92
Chain
SRAM GX Eagle 244 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Black Oxide
Model
CN-EAGL-GX-A1
Name
GX Eagle Chain
Outer link finish
Nickel
Pin variant
Solid Pin
Weight based on
114 links
Weight
244
Cassette
SRAM XG-1275 GX Eagle
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
02 Carbon, Tuned Compliance Concept, DTi
Front suspension
RockShox SID RL Solo Air
Color
Diffusion Black, Gloss Black, Gloss White
Damper type
Charger 2
fork offset
42mm (27.5"), 46mm (29"), 51mm (29")
Max tire width (mm)
62, 81
Maximum rotor size
203mm
Minimum rotor size
160mm
Model
FS-SID-RL-B2
Name
SID RL
Spring
Solo Air
Travel (mm)
100mm
Upper tube type
32mm straight wall aluminum
Wheel size
27.5", 27.5" B, 29", 29" B
Wheels
Rims
DT Swiss X1700 Spline 25 **
Tires
Vittoria Barzo TR, 29x2.25
Spokes
DT Swiss
Rear hub
DT Swiss X1700 Spline
Front hub
DT Swiss X1700 Spline

Geometry

Size SM MD LG XL
a
Seat tube length
445,0
485,0
525,0
545,0
b
Seat tube angle
73,5º
73,5º
73,5º
73,5º
c
Top tube length
578,0
604,0
624,0
643,0
d
Head tube length
90,0
100,0
110,0
120,0
e
Head tube angle
70,0º
70,0º
70,0º
70,0º
f
Rake
51,0
51,0
51,0
51,0
g
Trail
80,0
80,0
80,0
80,0
h
Wheelbase
1075,0
1101,0
1122,0
1140,0
i
Chainstay length
423,0
423,0
423,0
423,0
j
Bottom bracket drop
61,0
61,0
61,0
61,0
k
Stack height
602,0
612,0
622,0
632,0
l
Reach
395,0
420,0
436,0
452,0
m
Standover height
767,0
797,0
822,0
832,0
x
Bottom bracket height
313,0
313,0
313,0
313,0
y
Front center
659,0
685,0
706,0
725,0
