BMC Teamelite 03 TWO 2018

Groupset

SRAM NX

Frame material

Alloy

Wheel size

29"

Suspension type

Hardtail

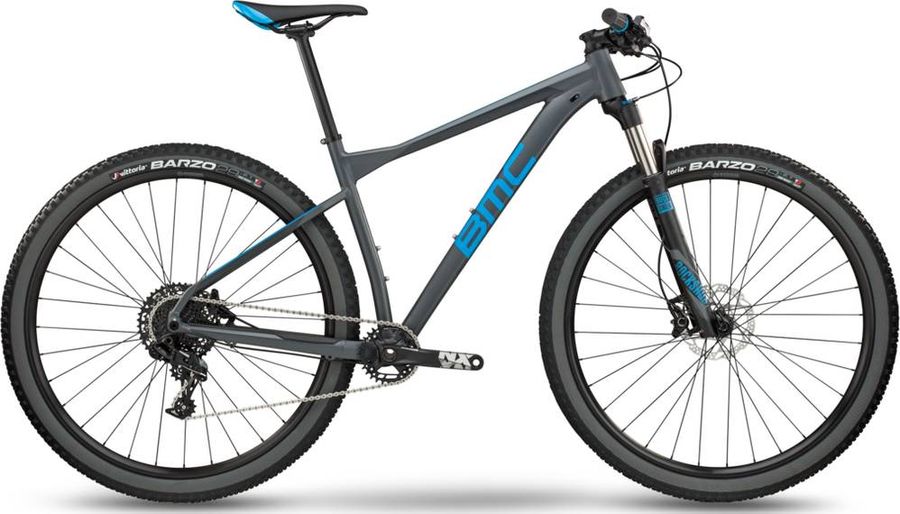

About the BMC Teamelite 03 TWO 2018

The BMC Teamelite 03 TWO 2018 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a SRAM NX drivetrain of 11 gears (1x11).

Components
Steam	BMC MSM 03
Brakes	Shimano Deore BR-M6000 Hydraulic disc brake 2 piston
Brake hose color kit Black Brake hose kit SM-BH90-SS Brake type Hydraulic disc brake Caliper finish Painted Caliper material Aluminum Caliper fixing bolt anti loosen method Snap ring Caliper fixing bolt material Steel Caliper fixing bolt tool size 5 mm Primary color Series Black Secondary color Series Silver * color.3 Black (SHIMANO logo) * Hose joint Straight ICE TECHNOLOGIES pad compatible caliper J-Kit spec for OEM Model BR-M6000 Mount type Post-type Oil SHIMANO Mineral One way bleeding Pad option G04S Metal Pad standard G02S Resin, G03S Resin Pad standard J02A Resin J03A Resin Pad mount Split pin (stainless steel) Piston 2 Piston material Resin Recommended brake lever BL-M6100 BL-MT501 BL-T6000 Recommended disc brake rotor SM-RT54** SM-RT56** SM-RT64 SM-RT66
Seatpost	BMC MSP 03
Handlebar	BMC MFB 03

Drivetrain
Rear derailleur	SRAM NX 11s 322 g
Cable pull ratio X-actuation Cage Long Cage material Steel Color Black Max tooth 42 Model RD-NX-1-A1 Name NX 1x11 X-HORIZON™ Rear Derailleur Pulley bearings material Steel Speed 11s Weight 322
Cassette	SRAM PG-1130 11s
Cog finish cassete Black, Silver Cog sizes 11-26t:11,12,13,14,15,16,17,19,21,23,26 11-28t:11,12,13,14,15,16,17,19,22,25,28 11-32t:11,12,13,14,15,17,19,22,25,28,32 11-36t:11,12,13,15,17,19,22,25,28,32,36 11-42t: 11,13,15,17,19,22,25,28,32,36,42 Gearing 11-26t 11-28t 11-32t 11-36t 11-42t Model CS-PG-1130-A1 Name PG-1130 Cassette Speed 11s Technology cassete PG
Shifter	SRAM NX
Chain	KMC X11
Crankset	SRAM NX 10/11s 745 g
BB compatibility BB30/PF30-68/73mm GXP 100mm/PF GXP 121mm GXP/PF GXP 68/73mm PowerSpline BB BB spindle interface 24mm, 30mm, Power Spline Bolt circle diameter bcd 94 BCD, Direct Mount (DM) Chain line 49.0mm, 52.0mm, 66.5mm Chainring material Aluminum, Steel Chainring size 28T, 30T, 32T, 36T, 38T Crank arm length 155mm, 165mm, 170mm, 175mm Model FC-NX-1-A1 Name NX 1x X-SYNC™ Crankset Speeds 10/11 Weight based on GXP 175mm 32t Alu Weight 745

Frameset
Frame	BMC Alumínio
Front suspension	RockShox Recon RL Solo Air
Color Diffusion Black, Gloss Black, Gloss White fork offset 42mm (27.5"), 46mm (29"), 51mm (29") Max tire width (mm) 62, 81 Maximum rotor size 220mm Minimum rotor size 160mm Model FS-RCN-RL-A1 Name Recon RL Spring Solo Air Travel (mm) 100mm, 120mm, 130mm, 140mm, 150mm, 80mm Upper tube type 32mm straight wall steel Wheel size 27.5", 29"

Wheels
Rims	Alexrims MD25
Rear hub	Shimano Deore FH-M6000
Axle material Steel Axle fixing method Quick release Bearing cone CBN Brake type Center lock disc brake Hub shell color Series Black Quick release color Series Black Without external serration disc rotor lock ring Flange diameter (mm) 53.8 Flange distance (mm) 57.4 Freehub body material Steel Hub shell finish Anodized Hub shell material Aluminum Without external serration disc rotor lock ring Model FH-M6000 Offset (mm) 6.6 Over locknut dimension (mm) 135 PCD left right (mm) 45 Quick release housing finish Painted Quick release housing material Aluminum Quick release lever finish Painted Quick release lever material Aluminum Quick release nut material Resin & Steel Seal freehub body Contact Seal Labyrinth & Contact Spoke hole 32H 36H
Front hub	Shimano Deore FH-M6000
Tires	Vittoria BARZO

Receive notifications when your favorite riders finish UCI races.

NX 1 × 11

Average

0,72

Average

2,73

Compared to similar bikes, the BMC Teamelite 03 TWO 2018 has a good uphill performance and a regular downhill performance.
