BMC trailfox 02 2017

MTB Enduro
Groupset
SRAM X01
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Front travel
160mm
Rear travel
150mm

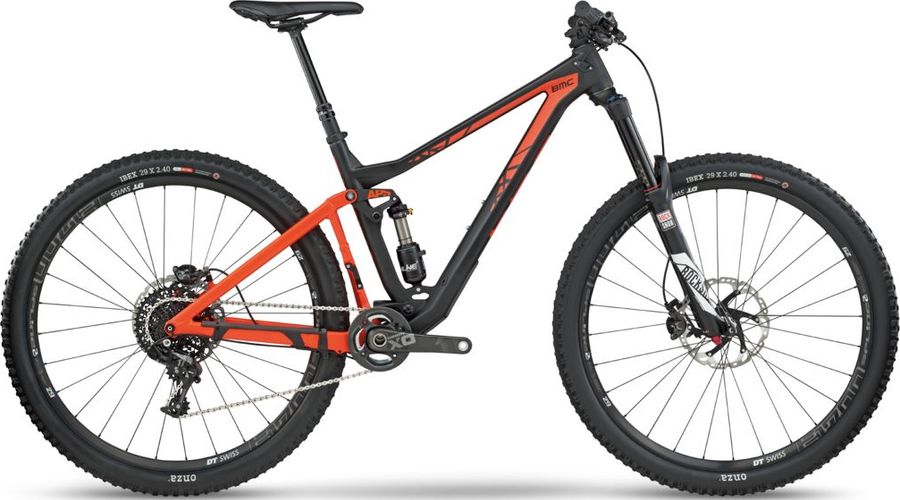

BMC trailfox 02 2017

About the BMC trailfox 02 2017

The BMC trailfox 02 2017 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a SRAM X01 drivetrain of 11 gears (1x11). Its features include dropper seatpost e hydraulic disc brakes.

Features

The BMC trailfox 02 2017 has 2 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Components
Steam
BMC AMSM 02, 45mm
Saddle
Fizik Nisene XS
Seatpost
RockShox Reverb Stealth
Handlebar
BMC MFB 02, 780mm
Brakes
Shimano Deore XT BR-M8000 403 (BL-M8000) g Hydraulic disc brake 2 piston
Average weight (g)
403 (BL-M8000)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SB
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
Model
BR-M8000
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
G04S Metal
Pad option
J04C Metal
Pad standard
G02A Resin
G03A Resin
Pad standard
J02A Resin
J03A Resin
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Recommended brake lever
BL-M8000
BL-T8000
Recommended disc brake rotor
RT-MT800
SM-RT86
Drivetrain
Crankset
SRAM X01, 30T Black
Shifter
SRAM X01 Trigger Black
Cassette
SRAM XG-1175 11s 325 g
Cog finish cassete
Black
Cog sizes
10-42t:10,12,14,16,18,21,24,28,32,36,42
Gearing
10-42t
Model
CS-XG-1175-A1
Name
XG-1175 FULL PIN Cassette
Speed
11s
Technology cassete
XG
Weight
325
Rear derailleur
SRAM X01 11s 250 g
Cable pull ratio
X-actuation
Cage
Long, n/a
Cage material
Aluminum, Carbon
Color
Black, Blue, Green, Red
Max tooth
42
Model
RD-X0-1-A2
Name
X01® X-HORIZON™ Rear Derailleur
Pulley bearings material
Steel
Speed
11s
Weight
250
Chain
KMC X11
Frameset
Frame
01 Premium Carbon (F), Al-13 Triple-butted aluminum (R)
Rear suspension
Fox Float DPX2 Factory EVOL
Front suspension
RockShox Pike RC Solo Air 1835 g
Color
Gloss Black
fork offset
51mm
Maximum rotor size
203mm
Minimum rotor size
160mm
Model
FS-PIKE-RC-A2
Name
Pike RC
Spring
Solo Air
Travel (mm)
150mm
Upper tube type
35mm tapered wall aluminum
Weight based on
26", Solo Air, 265mm tapered aluminum steerer, 15X100mm Maxle Ultimate
Weight
1835
Wheel size
29" B/27.5"+
Wheels
Rims
DT Swiss E1700 Spline
Tires
Onza: Ibex AM FR 120 (F) / AM 60 (R), 2.4
Rear hub
DT Swiss E1700 Spline
Front hub
DT Swiss E1700 Spline

Geometry

Size SM MD LG
a
Seat tube length
400,0
440,0
480,0
b
Seat tube angle
74,0º
74,0º
74,0º
c
Top tube length
585,0
611,0
638,0
d
Head tube length
90,0
95,0
100,0
e
Head tube angle
67,0º
67,0º
67,0º
f
Rake
51,0
51,0
51,0
g
Trail
101,0
101,0
101,0
h
Wheelbase
1145,0
1173,0
1,2e3
i
Chainstay length
438,0
435,0
435,0
j
Bottom bracket drop
30,0
30,0
30,0
k
Stack height
610,0
615,0
619,0
l
Reach
410,0
435,0
460,0
m
Standover height
725,0
735,0
745,0
x
Bottom bracket height
344,0
344,0
344,0
y
Front center
712,0
739,0
766,0
