BikeWise

BMC Trailfox 02 ONE 2018

MTB Enduro
Groupset
SRAM GX Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Front travel
160mm
Rear travel
150mm

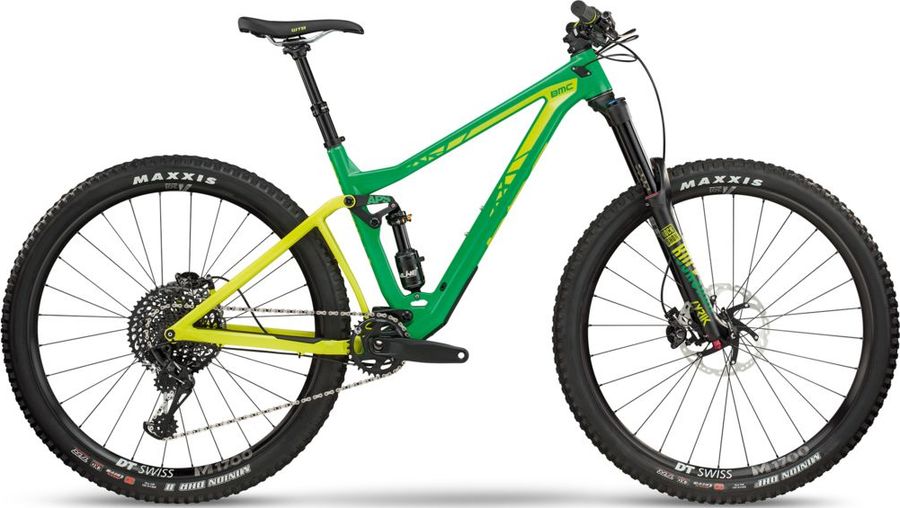

BMC Trailfox 02 ONE 2018

About the BMC Trailfox 02 ONE 2018

The BMC Trailfox 02 ONE 2018 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost e hydraulic disc brakes.

Features

The BMC Trailfox 02 ONE 2018 has 2 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Components
Steam
BMC AMSM 02, 45mm
Saddle
WTB Volt Race
Seatpost
RaceFace Turbine Dropper 150mm
Handlebar
BMC MRB 02, 780mm
Brake lever
Shimano XT
Brakes
Shimano Deore XT BR-M8000 403 (BL-M8000) g Hydraulic disc brake 2 piston
Average weight (g)
403 (BL-M8000)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SB
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
Model
BR-M8000
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
G04S Metal
Pad option
J04C Metal
Pad standard
G02A Resin
G03A Resin
Pad standard
J02A Resin
J03A Resin
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Recommended brake lever
BL-M8000
BL-T8000
Recommended disc brake rotor
RT-MT800
SM-RT86
Drivetrain
Crankset
SRAM GX Eagle, 32T Black
Shifter
SRAM GX Eagle Trigger
Bottom bracket
SRAM PF92
Chain
SRAM GX Eagle 244 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Black Oxide
Model
CN-EAGL-GX-A1
Name
GX Eagle Chain
Outer link finish
Nickel
Pin variant
Solid Pin
Weight based on
114 links
Weight
244
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
01 Premium Carbon (F), Al-13 Triple-butted aluminum (R)
Rear suspension
Fox Float DPX2 Factory EVOL
Front suspension
RockShox Lyrik RC DebonAir
Color
Diffusion Black, Gloss Black
Damper type
Charger 2
fork offset
37mm (27.5"), 42mm (29"), 46mm (27.5"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
180mm
Model
FS-LYRK-RC-C2
Name
Lyrik RC
Spring
DebonAir
Travel (mm)
150mm, 160mm, 170mm, 180mm
Upper tube type
35mm tapered wall aluminum
Wheel size
27.5", 29"
Wheels
Rims
DT Swiss M1700 Spline 30**
Tires
Maxxis Minion DHF EXO/3C, 2.35 (F) / Maxxis Minion DHR EXO/3C, 2.3 (R)
Spokes
DT Swiss
Rear hub
DT Swiss M1700 Spline
Front hub
DT Swiss M1700 Spline

Geometry

Size SM MD LG
a
Seat tube length
400,0
440,0
480,0
b
Seat tube angle
74,0º
74,0º
74,0º
c
Top tube length
585,0
611,0
638,0
d
Head tube length
90,0
95,0
100,0
e
Head tube angle
67,0º
67,0º
67,0º
f
Rake
51,0
51,0
51,0
g
Trail
101,0
101,0
101,0
h
Wheelbase
1045,0
1173,0
1,2e3
i
Chainstay length
435,0
435,0
435,0
j
Bottom bracket drop
30,0
30,0
30,0
k
Stack height
610,0
615,0
619,0
l
Reach
410,0
435,0
460,0
m
Standover height
725,0
735,0
745,0
x
Bottom bracket height
344,0
344,0
344,0
y
Front center
712,0
739,0
766,0
