BMC trailfox 03 2017

MTB Enduro
Groupset
SRAM X1
Frame material
Alloy
Wheel size
29"
Suspension type
Full suspension
Front travel
160mm
Rear travel
150mm

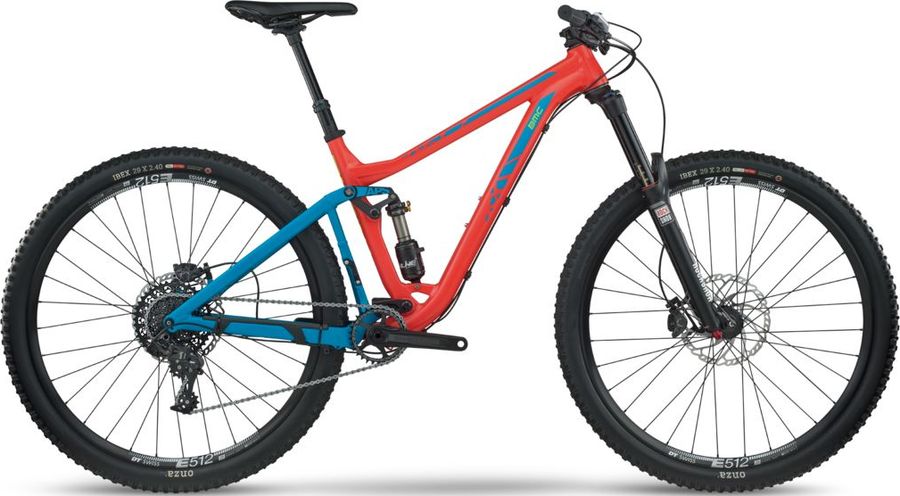

BMC trailfox 03 2017

About the BMC trailfox 03 2017

The BMC trailfox 03 2017 is a Full suspension Enduro Mountain Bike with a alloy frame. Equipped with a SRAM X1 drivetrain of 11 gears (1x11). Its features include dropper seatpost e hydraulic disc brakes.

Features

The BMC trailfox 03 2017 has 2 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Components
Steam
BMC AMSM 02, 45mm
Saddle
Fizik Nisene XS
Seatpost
HDK Dropper Stealth, 125mm
Handlebar
BMC MFB 02, 780mm
Brakes
Shimano SLX BR-M7100 425 (BL-M7100) g Hydraulic disc brake 2 piston
Average weight (g)
425 (BL-M7100)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SBM
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M7100
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
J03A Resin (w/ fin)
Pad option
J04C Metal (w/ fin)
Pad standard
G03S Resin (w/o fin)
Pad standard
G04S Metal (w/o fin)
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Drivetrain
Crankset
RaceFace Aeffect SL DM, 30T
Shifter
SRAM GX-11
Cassette
SRAM XG-1150 11s
Cog finish cassete
Black
Cog sizes
10-42t:10,12,14,16,18,21,24,28,32,36,42
Gearing
10-42t
Model
CS-XG-1150-A1
Name
XG-1150 FULL PIN Cassette
Speed
11s
Technology cassete
XG
Rear derailleur
SRAM X1 X-HORIZON Rear Derailleur 11s 256 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Black
Max tooth
42
Model
RD-X-1-A2
Name
X1 X-HORIZON™ Rear Derailleur
Pulley bearings material
Steel
Speed
11s
Weight
256
Chain
KMC X11
Frameset
Frame
Al-13 Premium Triple-butted aluminum (F&R)
Rear suspension
Fox Float DPX2 Factory EVOL
Front suspension
RockShox Pike RC Solo Air 1835 g
Color
Gloss Black
fork offset
51mm
Maximum rotor size
203mm
Minimum rotor size
160mm
Model
FS-PIKE-RC-A2
Name
Pike RC
Spring
Solo Air
Travel (mm)
150mm
Upper tube type
35mm tapered wall aluminum
Weight based on
26", Solo Air, 265mm tapered aluminum steerer, 15X100mm Maxle Ultimate
Weight
1835
Wheel size
29" B/27.5"+
Wheels
Rims
DT Swiss E512
Tires
Onza: Ibex AM FR 120 (F) / AM 60 (R), 2.4
Rear hub
SRAM MTH-716
Front hub
SRAM MTH-716

Geometry

Size SM MD LG
a
Seat tube length
400,0
440,0
480,0
b
Seat tube angle
74,0º
74,0º
74,0º
c
Top tube length
585,0
611,0
638,0
d
Head tube length
90,0
95,0
100,0
e
Head tube angle
67,0º
67,0º
67,0º
f
Rake
51,0
51,0
51,0
g
Trail
101,0
101,0
101,0
h
Wheelbase
1145,0
1173,0
1,2e3
i
Chainstay length
438,0
435,0
435,0
j
Bottom bracket drop
30,0
30,0
30,0
k
Stack height
610,0
615,0
619,0
l
Reach
410,0
435,0
460,0
m
Standover height
725,0
735,0
745,0
x
Bottom bracket height
344,0
344,0
344,0
y
Front center
712,0
739,0
766,0
