BikeWise

BMC Trailfox 03 TWO 2018

MTB Enduro
Groupset
Shimano SLX
Frame material
Alloy
Wheel size
29"
Suspension type
Full suspension
Front travel
160mm
Rear travel
150mm

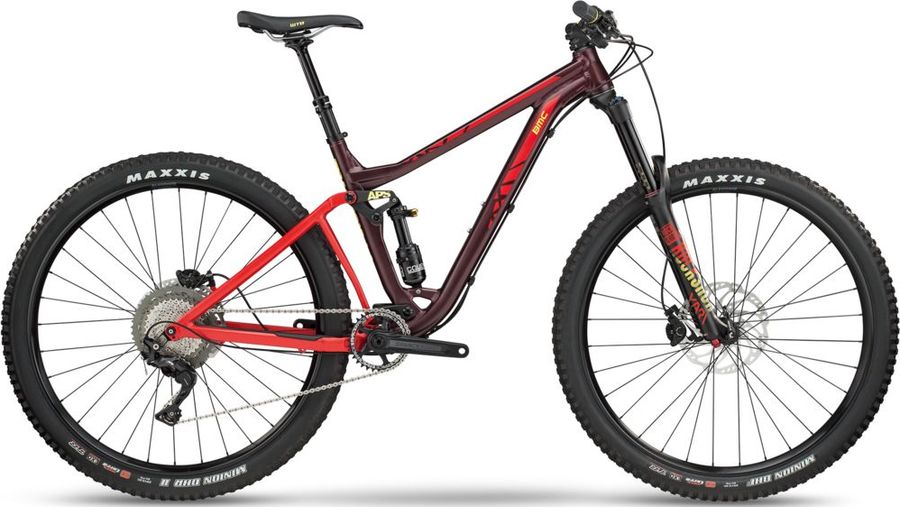

BMC Trailfox 03 TWO 2018

About the BMC Trailfox 03 TWO 2018

The BMC Trailfox 03 TWO 2018 is a Full suspension Enduro Mountain Bike with a alloy frame. Equipped with a Shimano SLX drivetrain of 11 gears (1x11). Its features include dropper seatpost e hydraulic disc brakes.

Features

The BMC Trailfox 03 TWO 2018 has 2 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Components
Steam
BMC AMSM 02, 45mm
Saddle
WTB Volt Comp
Seatpost
RaceFace Aeffect Dropper 150mm
Handlebar
BMC MRB 03, 780mm
Brake lever
Shimano SLX
Brakes
Shimano SLX BR-M7100 425 (BL-M7100) g Hydraulic disc brake 2 piston
Average weight (g)
425 (BL-M7100)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SBM
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M7100
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
J03A Resin (w/ fin)
Pad option
J04C Metal (w/ fin)
Pad standard
G03S Resin (w/o fin)
Pad standard
G04S Metal (w/o fin)
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Drivetrain
Crankset
RaceFace Aeffect SL DM, 32T
Shifter
Shimano SLX
Bottom bracket
BB30
Cassette
Shimano SLX CS-M7000-11 HG
Aluminum gear pieces
1 (11-40T)
1 (11-42T)
2 (11-46T)
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
1
Combination names
11-40T
11-42T
11-46T
Compatible chain
HG 11-speed, LG
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M7000-11
Steel gear finish
Shot-Ni
Steel gear pieces
10 (11-40T)
10 (11-42T)
9 (11-46T)
Type
HG
Weights
11-40T: 450g
11-42T: 476g
11-46T: 482g
Rear derailleur
Shimano SLX RD-M7000-11-SGS
Chain
KMC X11
Frameset
Frame
Al-13 Premium Triple-butted aluminum (F&R)
Front suspension
RockShox Yari RC Dual Position Air, Solo Air 2023 g
Color
Diffusion Black, Gloss Black, Gloss White
Damper type
n/a, RC
fork offset
42mm (27.5"), 51mm (29")
Max tire width (mm)
62, n/a
Maximum rotor size
203mm
Minimum rotor size
160mm
Model
FS-YARI-RC-A1
Name
Yari RC
Spring
Dual Position Air, Solo Air
Travel (mm)
110mm, 120mm, 130mm, 140mm, 150mm, 160mm, 170mm, 180mm
Upper tube type
35mm tapered wall aluminum
Weight based on
29"/27.5"+ Boost Solo Air, RC, 180mm travel
Weight
2023
Wheel size
27.5", 27.5" B, 29", 29" B/27.5"+, 29"+
Rear suspension
Cane Creek C-Quent
Wheels
Rims
Alex MD30**
Tires
Maxxis Minion DHF EXO/3C, 2.35 (F) / Maxxis Minion DHR EXO/3C, 2.3 (R)
Rear hub
Shimano SLX
Front hub
Shimano SLX

Geometry

Size SM MD LG
a
Seat tube length
400,0
440,0
480,0
b
Seat tube angle
74,0º
74,0º
74,0º
c
Top tube length
585,0
611,0
638,0
d
Head tube length
90,0
95,0
100,0
e
Head tube angle
67,0º
67,0º
67,0º
f
Rake
51,0
51,0
51,0
g
Trail
101,0
101,0
101,0
h
Wheelbase
1045,0
1173,0
1,2e3
i
Chainstay length
435,0
435,0
435,0
j
Bottom bracket drop
30,0
30,0
30,0
k
Stack height
610,0
615,0
619,0
l
Reach
410,0
435,0
460,0
m
Standover height
725,0
735,0
745,0
x
Bottom bracket height
344,0
344,0
344,0
y
Front center
712,0
739,0
766,0
