BMC Trailfox AMP TWO 2018

E-Bike
MTB Enduro
Groupset
Shimano XT
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Front travel
150mm
Rear travel
150mm

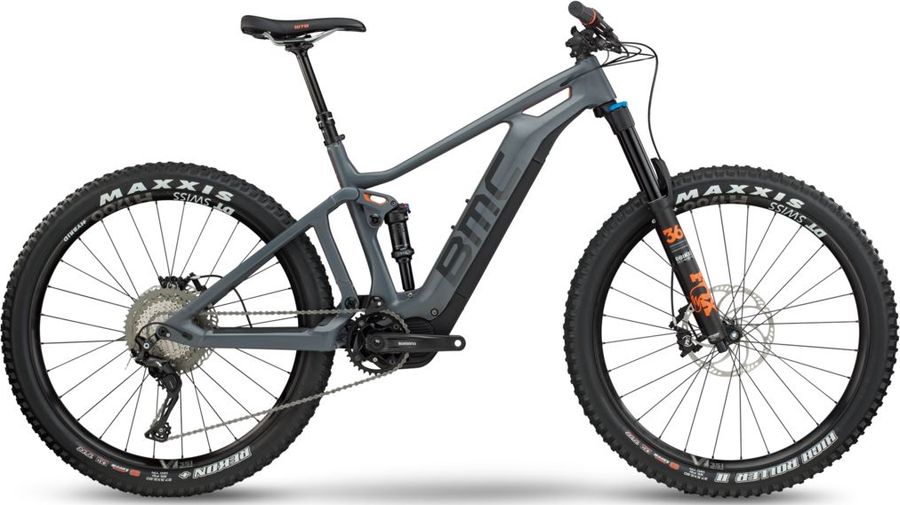

BMC Trailfox AMP TWO 2018

About the BMC Trailfox AMP TWO 2018

The BMC Trailfox AMP TWO 2018 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a Shimano XT drivetrain of 11 gears (1x11). Its features include dropper seatpost e hydraulic disc brakes.

Features

The BMC Trailfox AMP TWO 2018 has 2 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Components
Steam
BMC AMSM 02
Saddle
WTB Volt Race
Battery
Shimano STEPS MTB E-8020, 500Wh, integrated
Seatpost
RaceFace Aeffect Dropper 150mm **
Handlebar
BMC MRB 02, 780mm
Brake lever
Magura MT5
Brakes
Magura MT5
Drivetrain
Crankset
Shimano FC-E8000, 34T
Motor
Shimano STEPS MTB E-8000, 250W, 70Nm output
Shifter
Shimano XT
Rear derailleur
Shimano Deore XT RD-M8000-GS 271 g GS 11s
Average weight (g)
271
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Aluminum
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 11-speed
Lower pulley max
42T(2x11-speed),
46T(1x11-speed)
Lower pulley min
40T
Model
RD-M8000-GS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
GS
Speeds
11
Upper pulley max
11T
Upper pulley min
11T
Total capacity
39T
Cassette
Shimano SLX CS-M7000-11 HG
Aluminum gear pieces
1 (11-40T)
1 (11-42T)
2 (11-46T)
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
1
Combination names
11-40T
11-42T
11-46T
Compatible chain
HG 11-speed, LG
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M7000-11
Steel gear finish
Shot-Ni
Steel gear pieces
10 (11-40T)
10 (11-42T)
9 (11-46T)
Type
HG
Weights
11-40T: 450g
11-42T: 476g
11-46T: 482g
Chain
Shimano CN-HG601 257 g
Average weight (g)
257
Chromizing treatment roller link pin
Model
CN-HG601-11
Pin link plate
Gray
Roller link plate
SIL-TEC
Type
HG-X11
Frameset
Frame
Carbon (F), Al-13 Triple-butted aluminum (R), integrated battery pack
Rear suspension
Fox Float DPS Performance EVOL
Front suspension
Fox 36 Float Performance
Wheels
Rims
DT Swiss H700 Spline 35
Tires
Maxxis HR II Exo 27,5x2,8 (F), Maxxis Rekon Silkworm 27,5x2,8 (R)
Rear hub
DT Swiss H1700 Spline
Front hub
DT Swiss H1700 Spline

Geometry

Size SM MD LG
a
Seat tube length
400,0
440,0
480,0
b
Seat tube angle
74,0º
74,0º
74,0º
c
Top tube length
573,0
616,0
645,0
d
Head tube length
91,0
103,0
118,0
e
Head tube angle
66,0º
66,0º
66,0º
f
Rake
51,0
51,0
51,0
g
Trail
103,0
103,0
103,0
h
Wheelbase
1162,0
1207,0
1238,0
i
Chainstay length
445,0
445,0
445,0
j
Bottom bracket drop
17,0
17,0
17,0
k
Stack height
595,0
606,0
620,0
l
Reach
405,0
445,0
469,0
m
Standover height
745,0
730,0
771,0
x
Bottom bracket height
338,0
338,0
338,0
y
Front center
715,0
760,0
791,0
