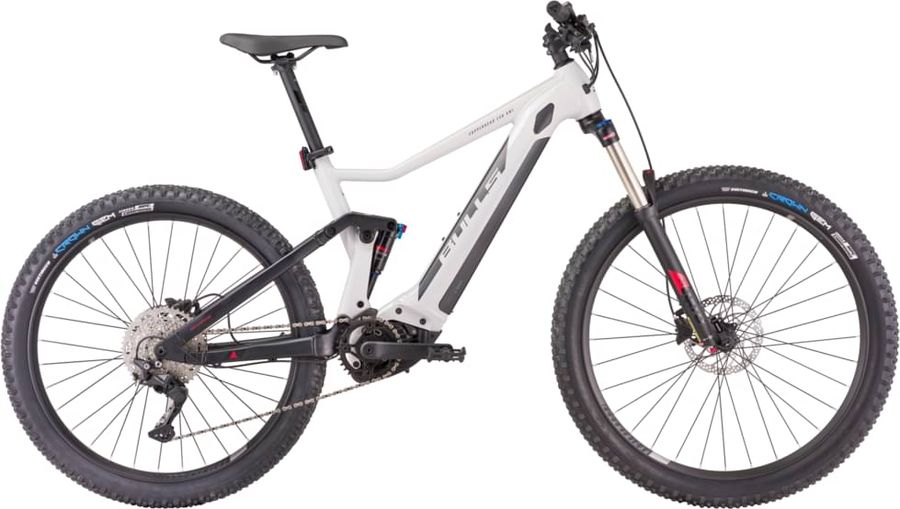

BULLS Copperhead EVO AM 1 27.5+ 2022
The BULLS Copperhead EVO AM 1 27.5+ 2022 is an electric-bike. E-bikes are bicycles with a battery-powered assist that comes via pedaling, so when you push the pedals a motor engages and gives you a boost.
E-Bike
Groupset
Shimano Deore
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Weight
25 kg
Front travel
140mm
About the BULLS Copperhead EVO AM 1 27.5+ 2022
The BULLS Copperhead EVO AM 1 27.5+ 2022 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain. Its features include hydraulic disc brakes. The bike weighs approximately 25 kg.
Features
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
|
Pedals
|
Wellgo ZZE-01M
|
|---|---|
|
Remote
|
Bosch Purion LCD
|
|
Steam
|
MTB-SL, CCS Slot Mount ready
|
|---|---|
|
Brakes
|
Hydraulische Scheibenbremse
|
|
Saddle
|
BULLS
|
|
Battery
|
Bosch PowerTube 400 Horizontal
|
|
Headset
|
Semi Integrated
|
|
Seatpost
|
BULLS
|
|
Handlebar
|
BULLS
|
|
Crankset
|
FSA
|
|---|---|
|
Motor
|
Bosch Performance Line CX 25/85Nm
|
|
Shifter
|
Shimano Deore SL-M4100-R
|
|
Chain
|
KMC 10v
|
|
Rear derailleur
|
Shimano Deore RD-M5120
SGS
11/10s
|
|
42T (2x11/2x10-speed) |
|
|
Cassette
|
Shimano Deore CS-M4100-10
HG
|
|
11-46T |
|
|
Frame
|
Alloy
|
|---|---|
|
Rear suspension
|
SR Suntour Unair LOR8
|
|
Front suspension
|
BULLS Lytro 34 Air
|
|
Rims
|
BULLS DDM-2
|
|---|---|
|
Tires
|
Veetire Crown Gem
|
|
Rear hub
|
Shimano HB-MT400-B
|
|
Front hub
|
Shimano HB-MT400-B
|
Geometry
| Size | 41cm | 44cm | 48cm | 54cm |
|---|---|---|---|---|
|
a
Seat tube length
|
410,0
|
440,0
|
480,0
|
540,0
|
|
b
Seat tube angle
|
74,0º
|
74,0º
|
74,0º
|
74,0º
|
|
c
Top tube length
|
588,0
|
608,0
|
633,0
|
658,0
|
|
d
Head tube length
|
120,0
|
120,0
|
130,0
|
140,0
|
|
e
Head tube angle
|
66,5º
|
66,5º
|
66,5º
|
66,5º
|
|
f
Rake
|
0,0
|
0,0
|
0,0
|
0,0
|
|
g
Trail
|
103,0
|
103,0
|
104,0
|
104,0
|
|
h
Wheelbase
|
1172,0
|
1192,0
|
1218,0
|
1244,0
|
|
i
Chainstay length
|
438,0
|
438,0
|
438,0
|
438,0
|
|
j
Bottom bracket drop
|
5,0
|
5,0
|
5,0
|
5,0
|
|
k
Stack height
|
605,0
|
605,0
|
614,0
|
623,0
|
|
l
Reach
|
412,0
|
432,0
|
455,0
|
477,0
|
|
m
Standover height
|
-
|
-
|
-
|
-
|
|
x
Bottom bracket height
|
350,0
|
350,0
|
350,0
|
350,0
|
|
y
Front center
|
734,0
|
754,0
|
780,0
|
806,0
|
