BULLS E-Core EVO AM 1 27.5+ 2020

E-Bike
MTB Cross Country
Groupset
SRAM SX Eagle
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
BULLS E-Core EVO AM 1 27.5+ 2020

About the BULLS E-Core EVO AM 1 27.5+ 2020

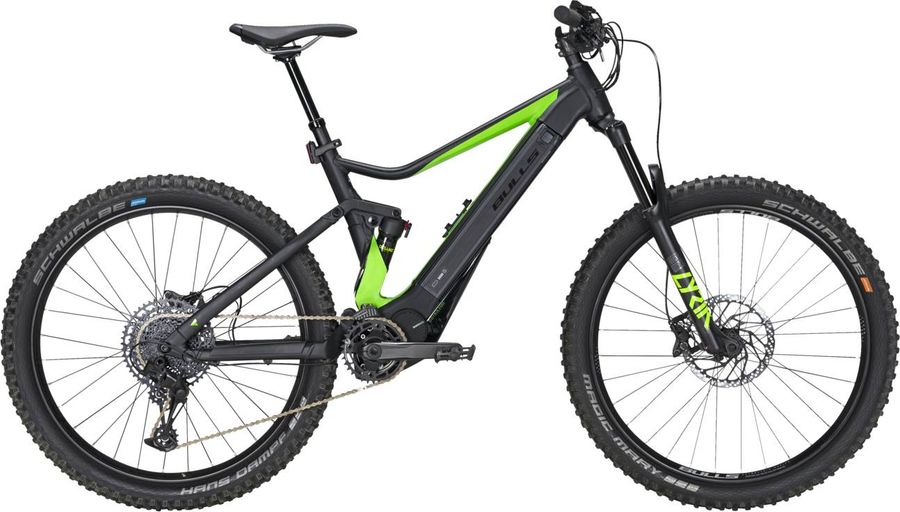

The BULLS E-Core EVO AM 1 27.5+ 2020 is a Full suspension Cross Country Mountain Bike with a alloy frame. Equipped with a SRAM SX Eagle drivetrain. Its features include boost 148 e hydraulic disc brakes.

Features

The BULLS E-Core EVO AM 1 27.5+ 2020 has 2 features listed below.
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Pedals
Wellgo ZZE-01M
Remote
Shimano SC-E7000
Components
Steam
MonkeyLink AS-ML1
Saddle
BULLS 1216HRN
Battery
BMZ, Lithium Ionen
Headset
CH-6201TBW, 1.5" tapered 1-1/8"
Seatpost
Limotec, DP01
Handlebar
Bulls Aluminium
Brakes
Shimano BR-MT420 Hydraulic disc brake 4 piston
Brake hose color kit
Black
Brake hose kit
SM-BH90-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT420
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
D03S Resin
Pad standard
D02S Metal
Pad mount
Split pin
Piston
4
Piston material
Resin
Recommended brake lever
BL-MT401
BL-MT402-3A
Recommended disc brake rotor
SM-RT30 *
SM-RT54 *
SM-RT56 *
SM-RT64
Drivetrain
Crankset
Shimano FC-E8050
Shifter
SRAM SX Eagle SL-1-A1
Chain
SRAM SX Eagle
Rear derailleur
SRAM SX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-SX-1-A1
Name
SX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Cassette
SRAM SX PG1210
Frameset
Frame
Alloy
Front suspension
RockShox Lyrik Select DebonAir 1996 g
Color
Diffusion Black, Gloss Black
Damper type
Charger RC
fork offset
37mm (27.5"), 42mm (29"), 46mm (27.5"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
180mm
Model
FS-LYRK-SEL-C2
Name
Lyrik Select
Spring
DebonAir
Travel (mm)
150mm, 160mm, 170mm, 180mm
Upper tube type
35mm tapered wall aluminum
Weight based on
27.5" BOOST, 150mm, Maxle Stealth
Weight
1996
Wheel size
27.5", 29"
Rear suspension
RockShox Deluxe Select+ 340 g
Body eyelet
No Bushing, Standard
Compression tune
H, L, L1, LC, M
Damper type
RL, RT
Eye to eye stroke
145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x35, 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x50(TR), 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65
Lockout force
320, 380, 430
Model
RS-DLX-SELP-B2
Name
Deluxe Select+
Rebound tune
H, L, M
Shaft eyelet
No Bushing, Standard, Trunnion
Weight based on
210x50, 2 tokens, MM tune, standard/standard
Weight
340
Wheels
Rims
BULLS Eccentric 35
Tires
Schwalbe Magic Mary
Rear hub
Formula EHL 148S
Front hub
Formula DC 711

Geometry

Size 41cm 44cm 49cm 54cm
a
Seat tube length
410,0
440,0
490,0
540,0
b
Seat tube angle
74,0º
74,0º
74,0º
74,0º
c
Top tube length
583,0
597,0
616,0
635,0
d
Head tube length
110,0
110,0
125,0
140,0
e
Head tube angle
67,5º
67,5º
67,5º
67,5º
f
Rake
-
-
-
-
g
Trail
-
-
-
-
h
Wheelbase
1148,0
1162,0
1183,0
1204,0
i
Chainstay length
431,0
431,0
431,0
-
j
Bottom bracket drop
-
-
-
-
k
Stack height
583,0
583,0
597,0
611,0
l
Reach
414,0
428,0
443,0
458,0
m
Standover height
-
-
-
-
x
Bottom bracket height
-
-
-
-
y
Front center
-
-
-
-
